Male Thread Neodymium Pot Magnet - Diameter 43mm x 6mm with M6 15mm Boss and Rubber Case
Product code: RCND43M(M6)
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description

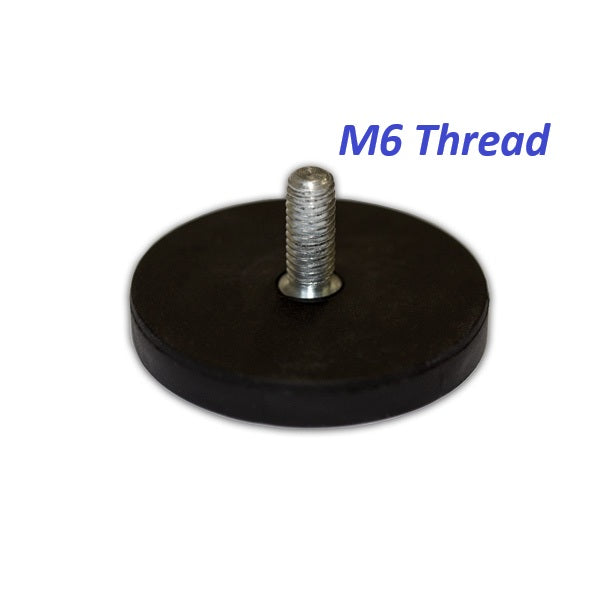

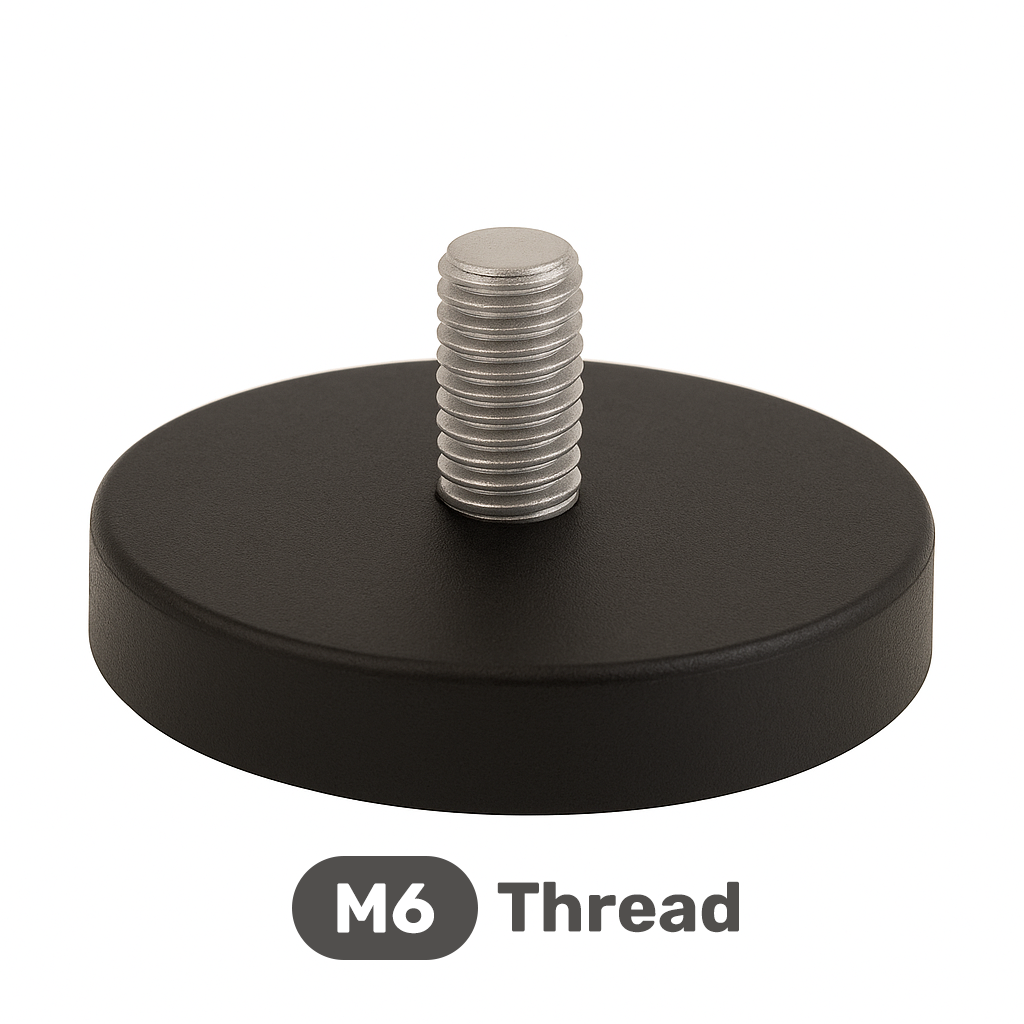

With a Neodymium magnetic core, this product has a strong pull force of 8kg, and a rubber coating that protects delicate surface areas as well. This male thread neodymium pot has a diameter of 43mm, a 6mm thickness, and a 15mm high M6 male threaded external boss. The product is identified by AMF Part Number RCND43M(M6).
Uses for our Male Thread Neodymium Pots with Rubber Casing:

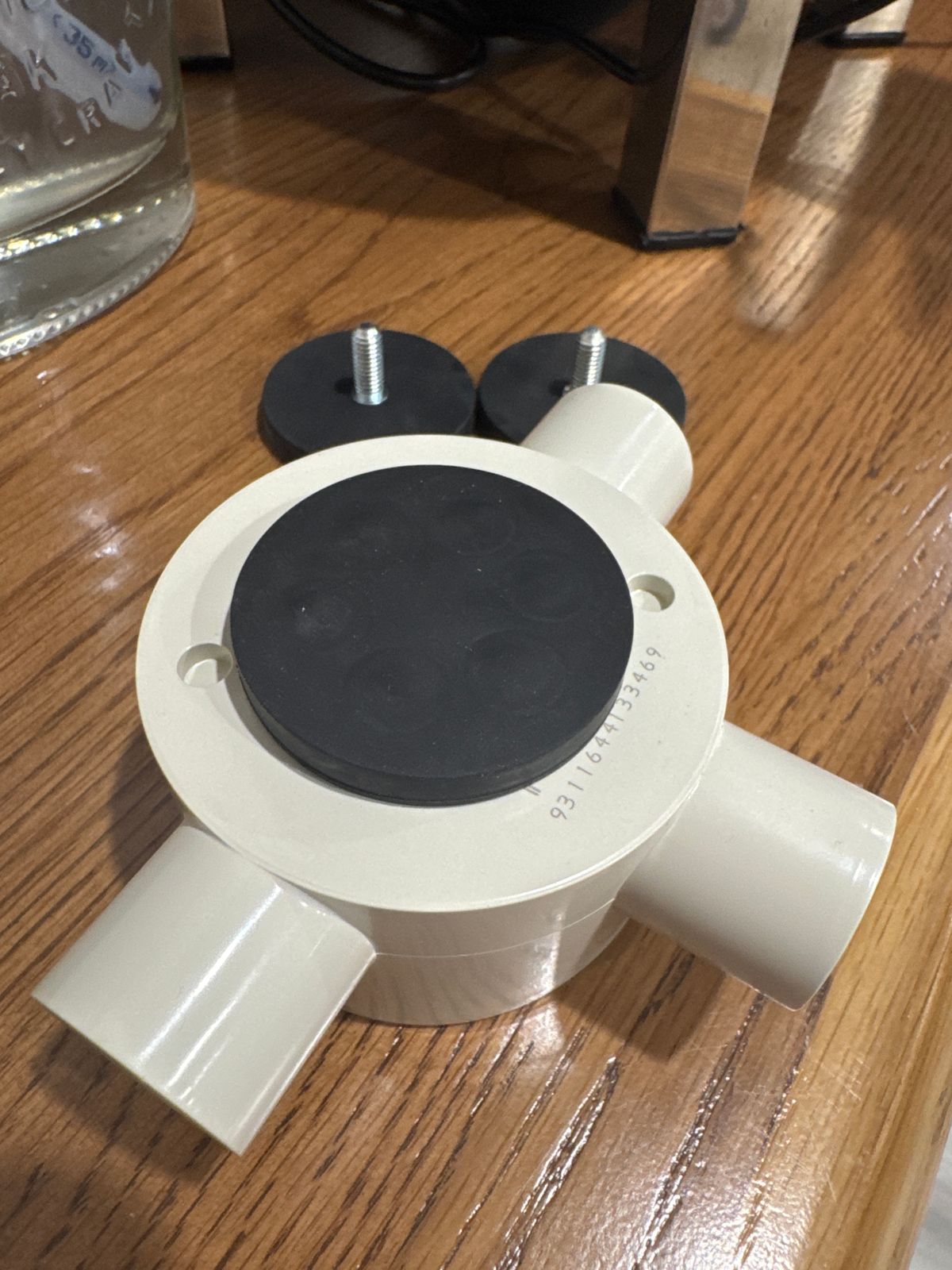

Magnets of this type can provide secure footings or attachment devices where steel or metal surfaces are common and paint coatings or treatment cannot be damaged. They can be attached to any non-ferrous surface with a nut to secure one or more in place, so materials like glass, timber and plastic become magnetically enhanced.
These Male Threaded holding pot magnets can be attached to any material with a hexagonal nut. These high strength magnets have a steel capping that increases holding strength to the base and then covered in a durable Rubber Casing to prevent damage to delicate surfaces. The rubber also provides excellent resistance to moisture and corrosion.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
