Neodymium Block Magnet – 32mm x 12.5mm x 26mm | N30EH | High Temperature ≤200°C | Magnetised Through 26mm
Product code: 22008A
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified

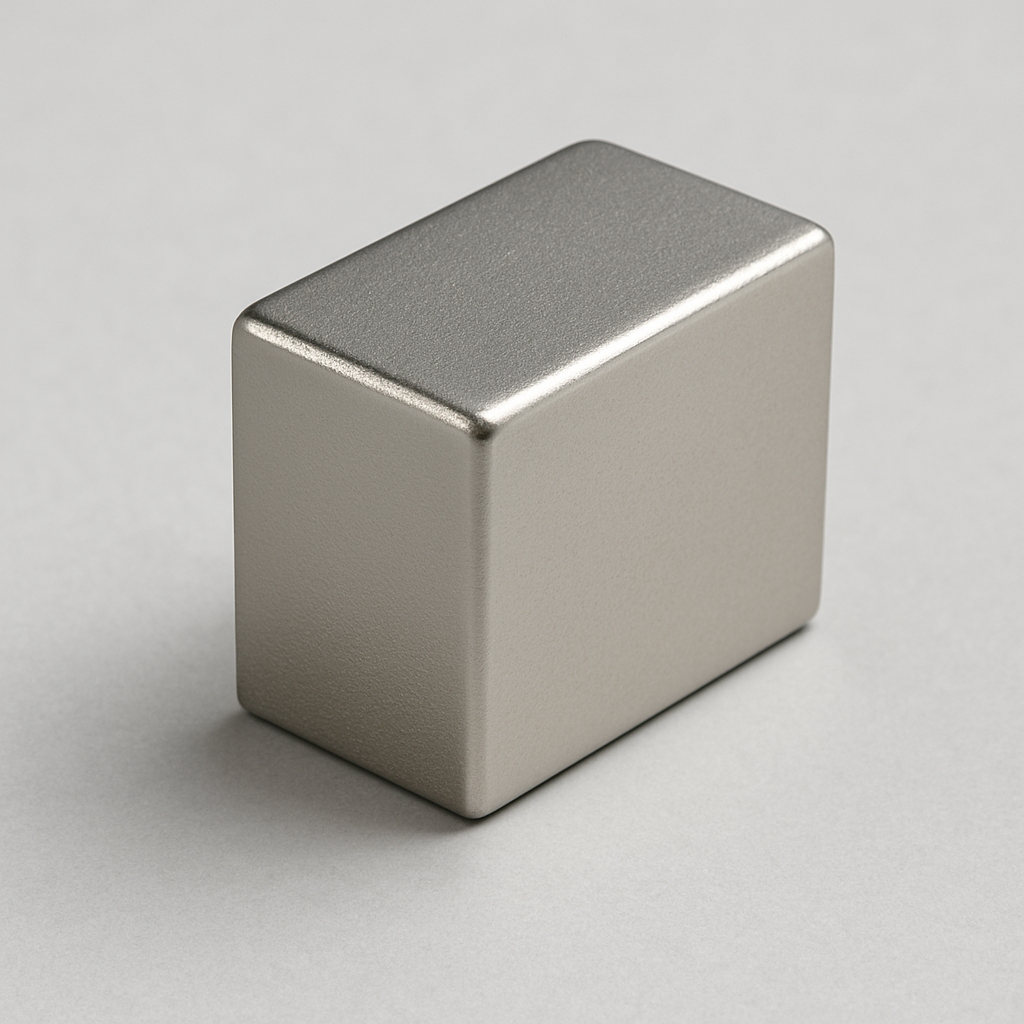

This rare earth neodymium block magnet measures 32mm (length) x 12.5mm (width) x 26mm (height) and is manufactured in N30EH grade, designed to deliver strong magnetic performance even in demanding environments. With its high temperature resistance up to 200°C, this magnet is ideal for use in industrial applications where standard neodymium magnets may lose strength.
Magnetised through the 26mm height, this block magnet provides a powerful and reliable pull force along its vertical axis. The compact rectangular shape makes it easy to integrate into assemblies, tools, sensors, or specialist equipment where a high-performance magnet is required.
Key Features:
Dimensions: 32mm (L) x 12.5mm (W) x 26mm (H)
Pull Force: 16.89 kg
Gauss: 5032
Magnetisation: Through the 26mm height
Grade: N30EH – engineered for elevated temperature performance
Operating Temperature: Up to 200°C
Material: Neodymium Iron Boron (NdFeB) with high coercivity
Applications:
This high-temperature neodymium block magnet is widely used in engineering, automotive, aerospace, manufacturing, and scientific industries. It is particularly suitable for:
High-heat environments such as motors, generators, and turbines.
Magnetic separation and holding systems exposed to elevated temperatures.
Sensors, instruments, and precision engineering applications.
Industrial processes requiring consistent magnetic strength at 200°C.
Trusted for its strength, durability, and reliability, this block magnet is a premium choice for industries requiring advanced performance beyond standard rare earth magnets.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
