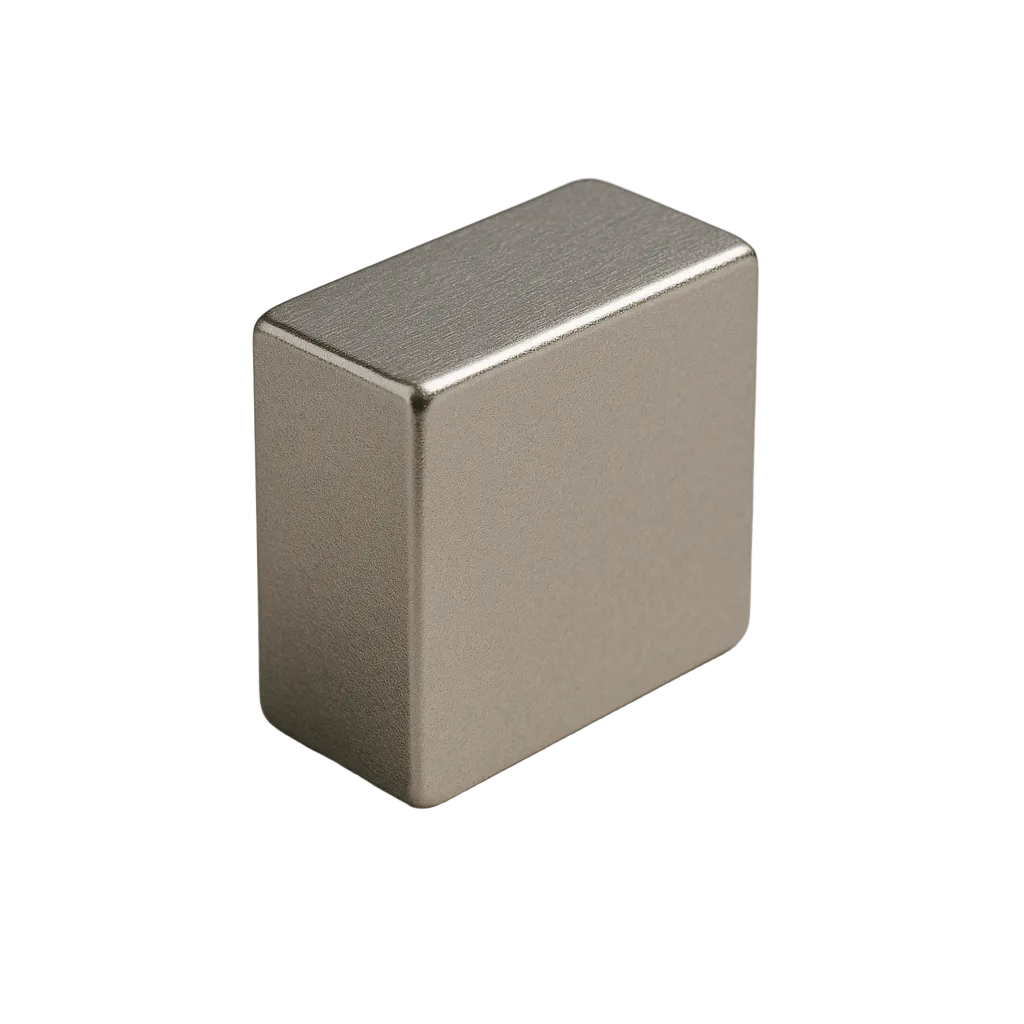

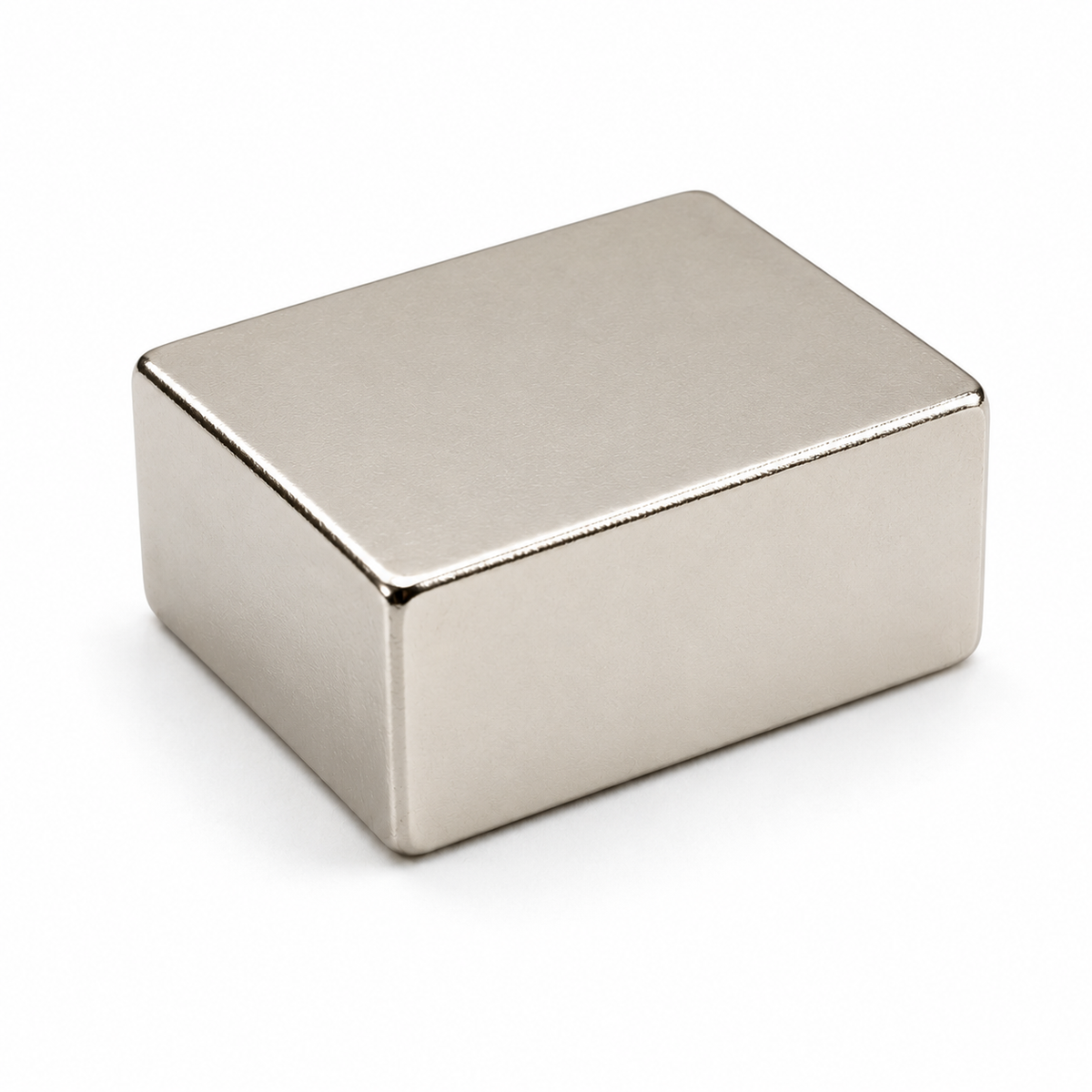

Neodymium Block Magnet – 35mm x 30mm x 15mm | N50H | High Temperature ≤120°C
Product code: B-W30H15L35-N50H
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
This rare earth block magnet is manufactured from premium Neodymium Iron Boron (NdFeB) in N50H grade, providing exceptional magnetic strength and stability. With dimensions of 35mm (length) x 30mm (width) x 15mm (height), this magnet is designed to deliver a pull force of 41.68kg and a surface field strength of 4478 Gauss.
This product is identified by product code B-W30H15L35-N50H.
Rated for operating temperatures up to 120°C, this block magnet combines superior strength with enhanced heat resistance, making it ideal for industrial, engineering, and heavy-duty holding applications. Its nickel-copper-nickel triple coating ensures durability and corrosion resistance, providing a long service life in both commercial and workshop environments.
Key Features:
-
Dimensions: 35mm (L) x 30mm (W) x 15mm (H)
-
Grade: N50H – high-performance neodymium with elevated temperature tolerance
-
Operating Temperature: ≤120°C
-
Magnetisation: Through the 15mm height
-
Pull Force: 41.68kg
-
Surface Gauss: 4478
-
Finish: Nickel coating for strength and protection
Applications:
This high-powered neodymium block magnet is widely used in:
Industrial clamping and heavy-duty holding systems.
Magnetic separation, lifting, and retrieval equipment.
Engineering, prototyping, and manufacturing assemblies.
Motors, sensors, and precision instruments requiring consistent magnetic force.
Construction and trade environments where strength and reliability are essential.
Powerful, durable, and engineered for performance, this 35mm x 30mm x 15mm neodymium block magnet is the perfect solution when only the strongest magnetic force will do.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
