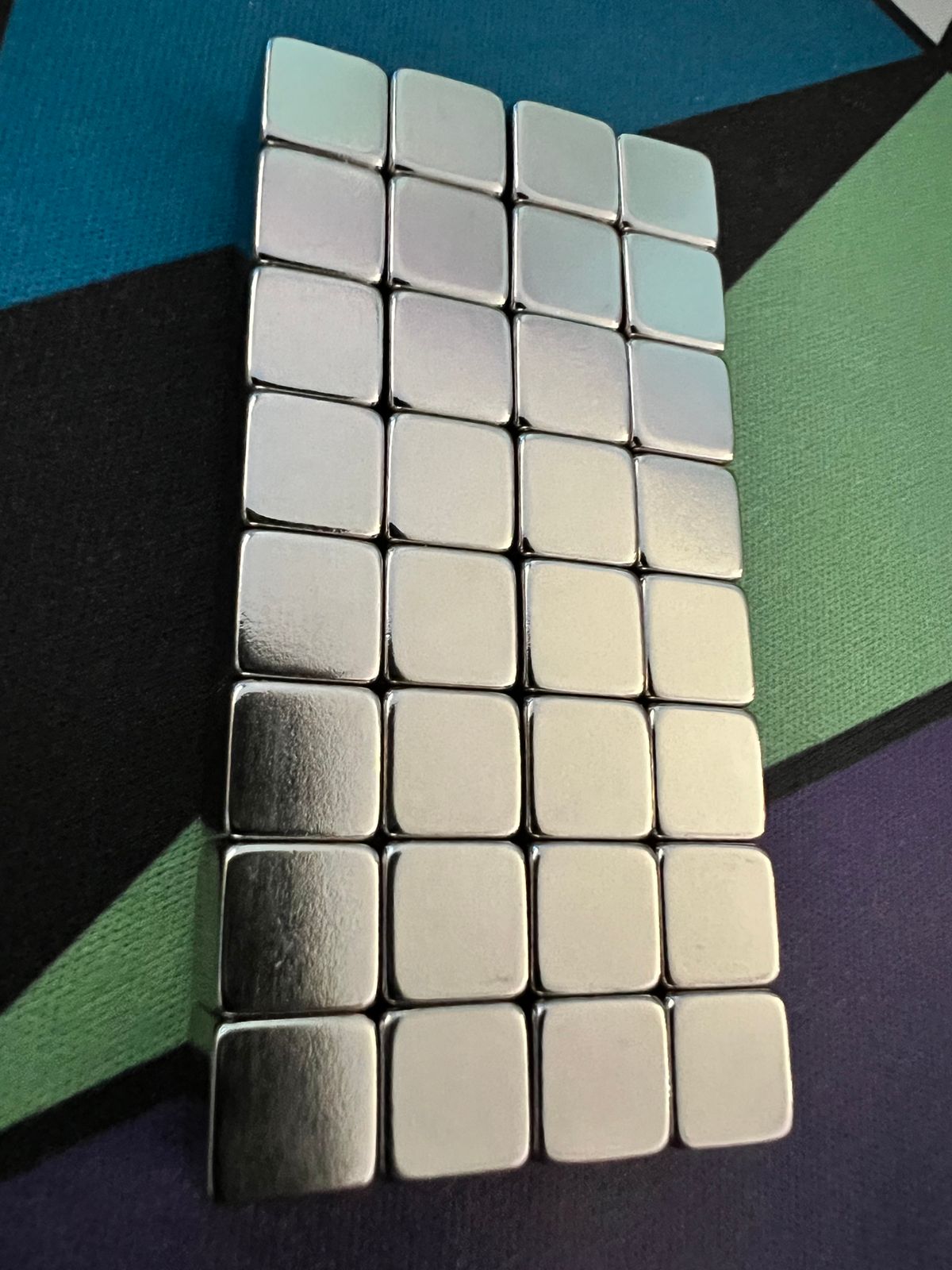

Neodymium Block Magnet - 8mm x 8mm x 8mm | N45

Product code: B-W8H8L8-N45

$4.14for 1 to 9 items
$3.22buy 10 to 99 itemsand save 22%
$2.82buy 100+ itemsand save 31%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 8mm x 8mm x 8mm | N45

Product Code B-W8H8L8-N45
Pull Force* 3.31KG
Weight 20 gm
Style Rare Earth Block
Grade N45
Coating Nickel
Direction of Magnetisation Axially (through height)
Dimensions Width:8mm, Height:8mm, Length:8mm
*Measured against up to 10mm mild steel.
Neodymium Block Magnet - 8mm x 8mm x 8mm | N45

Magnetic Product Description:

This neodymium magnetic block has a length of 8mm, width of 8mm and a height of 8mm. It has a pull force of 3.31 kilos. It is identified by the AMF magnet part number B-W8H8L8-N45.


Uses for our ferrite block magnets:

Neodymium Block magnets come in a range of different dimensions and are also sometimes referred to as rectangular magnets, square magnets, bar magnets or cube magnets. Rare Earth or Neodymium magnets are the most powerful of permanent magnets and since the discovery of this rare earth mineral in the 1980s it has superseded traditional types of magnets in most commercial operations. This equal sided Neodymium block magnet fits into the cube magnet category. Often described as silver magnets for their chrome-like appearance, Neodymium magnets are usually Nickel plated. The coating helps to provide some resistance to corrosion however there are other coatings such as Gold, Teflon and Parylene-C that are more suitable for particularly humid environments. Another helpful aspect of the Nickel plating is that Neodymium magnets are easily identifiable as the silver surface is distinctive from other types of magnetic material which are generally darker in colour.

Neodymium Block Magnet - 8mm x 8mm x 8mm | N45 (B-W8H8L8-N45)

Grade
N45 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.32-1.38 N/A
Remanence Br(kGs)
13.2-13.8 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
334-366 N/A
Max Energy Product(BH)max(MGOe)
42-46 N/A
Grade N45 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.32-1.38 N/A
Remanence Br(kGs) 13.2-13.8 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 334-366 N/A
Max Energy Product(BH)max(MGOe) 42-46 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
