Neodymium Cylinder Magnet - 6mm x 10mm | N33H I High Temperature ≤120°C
Product code: 93305
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Magnetic Product Description:

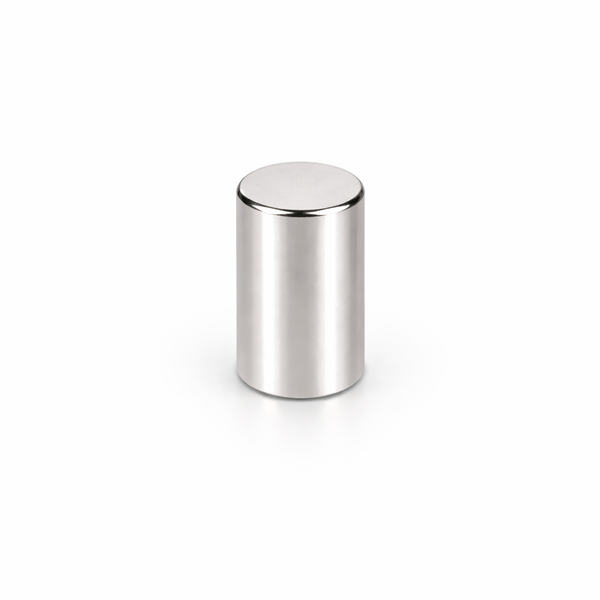

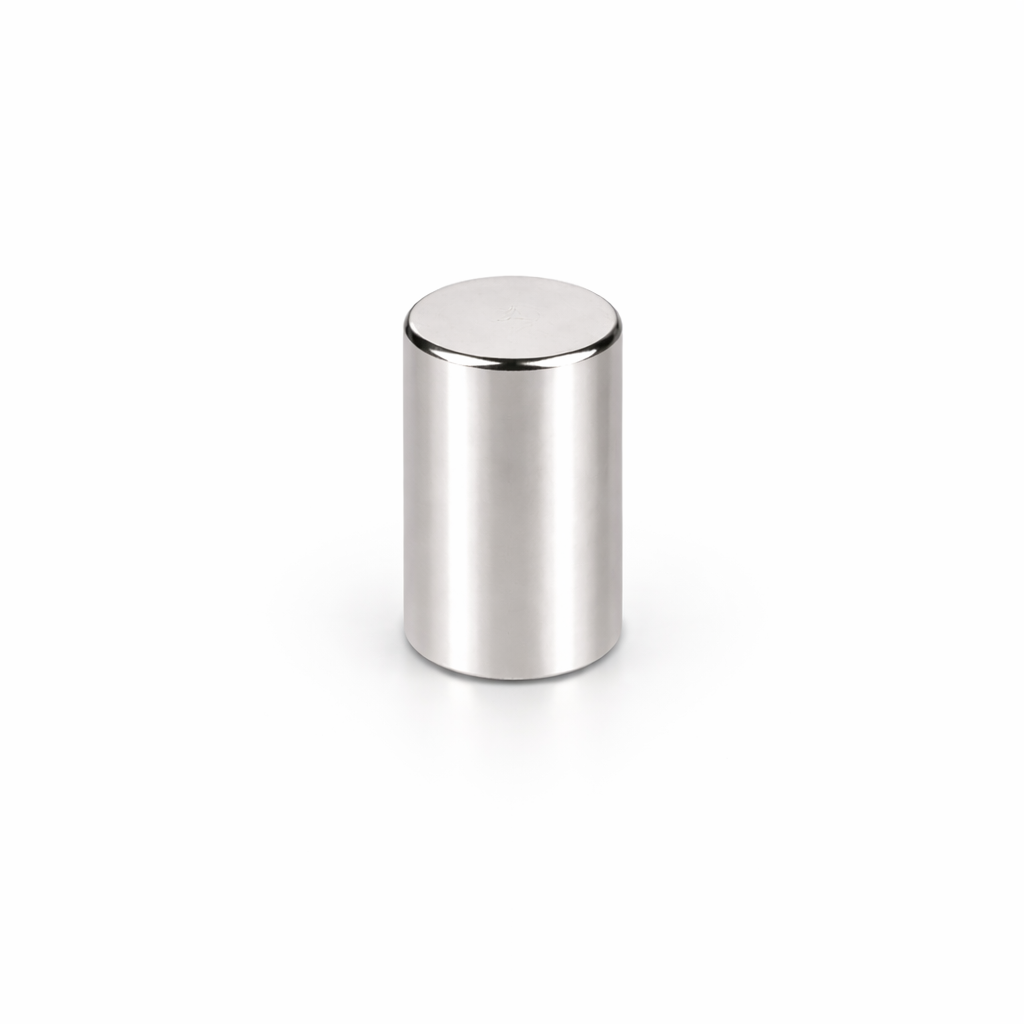

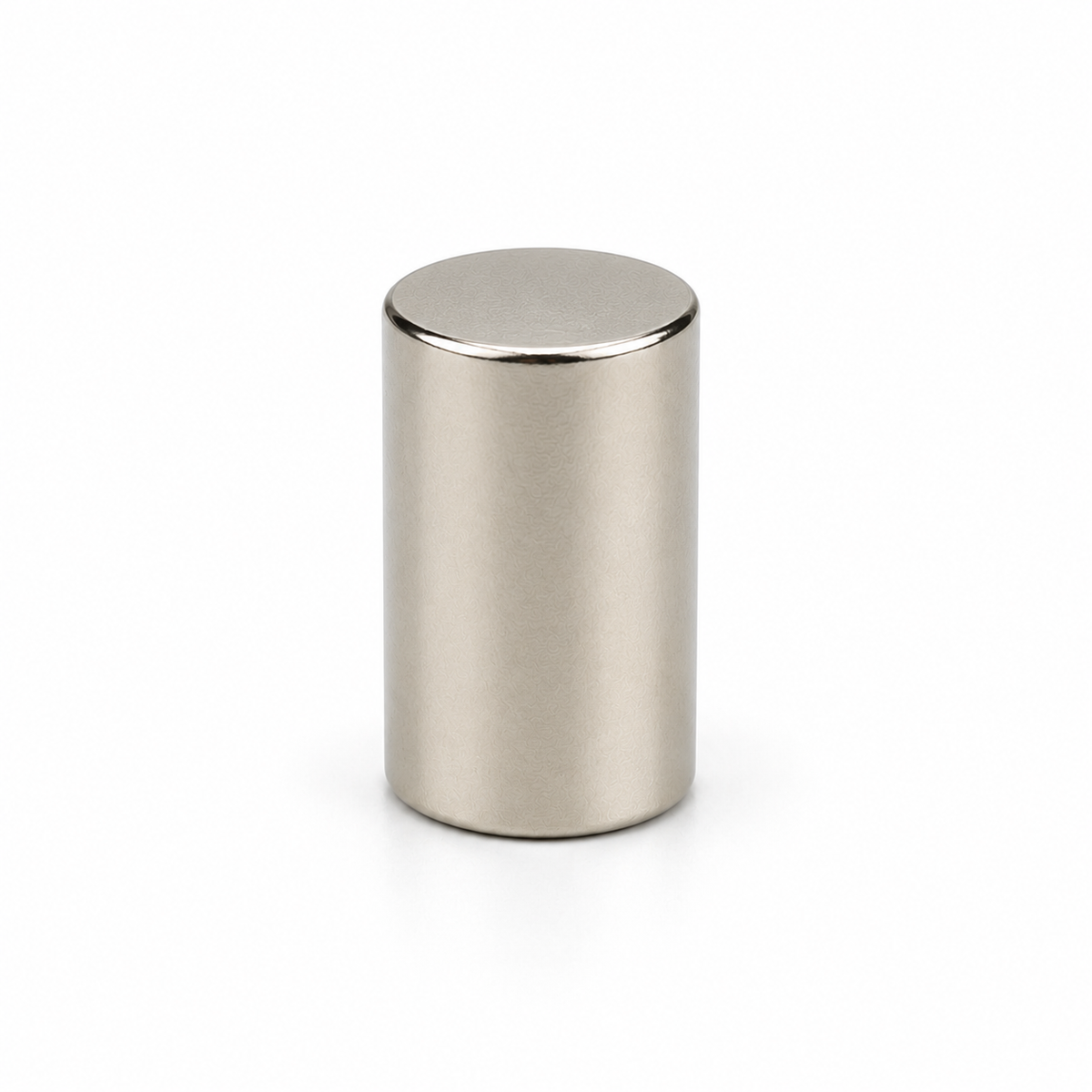

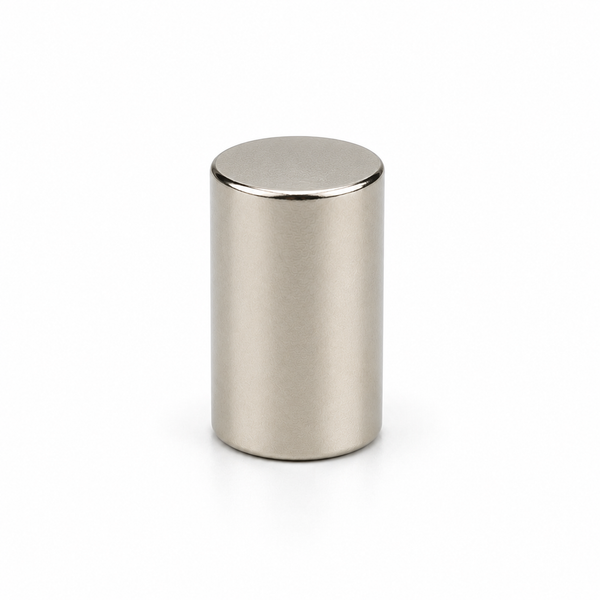

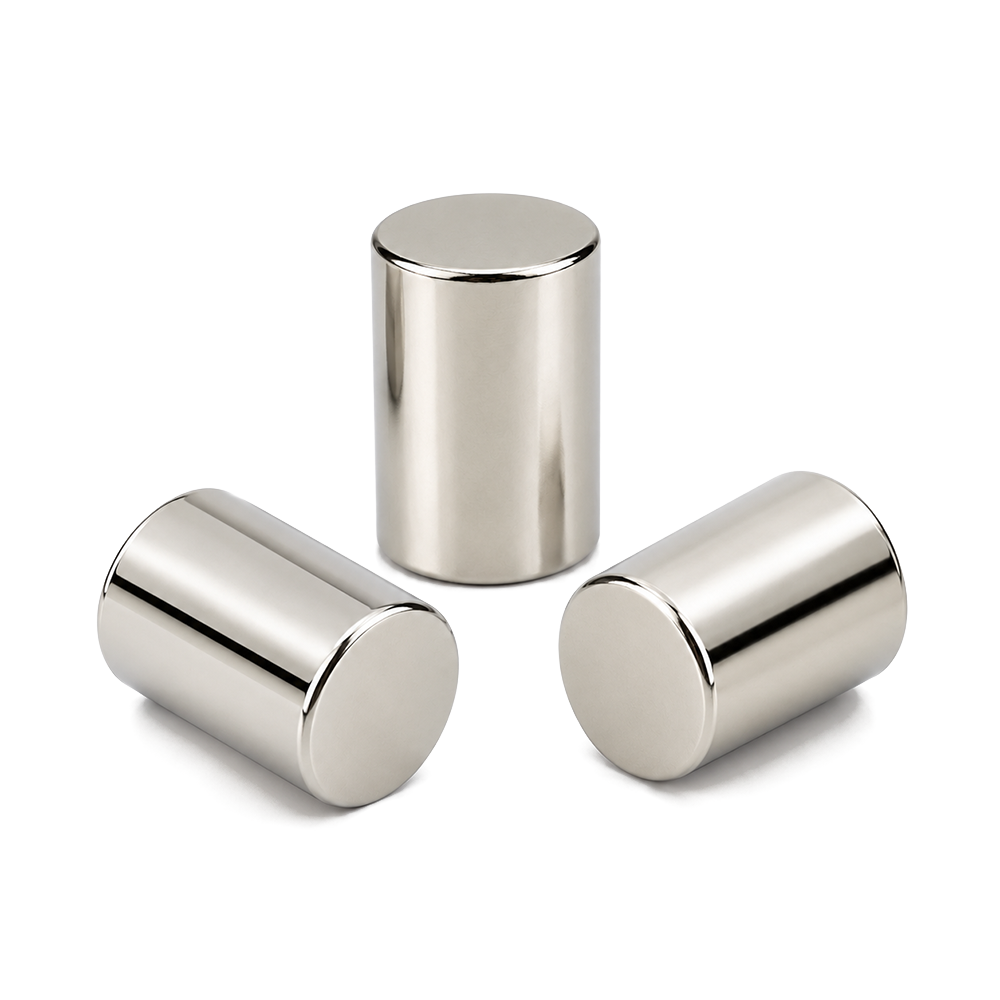

This is a commonly used rare earth cylinder magnet with a 6mm diameter and 10mm height. It is classified as an N33H grade magnet that is capable of functioning at temperatures up to 120°C. With a magnetic flux of 6942 Gauss and a pull force of 1.74kg, it can be easily recognised by its AMF Magnetics part number 93305.
Uses for our Rare Earth Cylinder Magnets:
The powerful magnetic field produced by Rare Earth Cylinder magnets is narrower and more focused than a thinner disc-shaped magnet. These characteristics make cylinder magnets ideal for penetrating thin substrates and locating metal that is not necessarily visible with the naked eye. For this reason they are the magnet shape most frequently used in magnetic equipment that is designed to detect or retrieve such as stud finders or pick up tools. They are often a key component of commercially made magnetic products that are designed to have a similar function.
Small rod magnets such as these are incredibly adaptable and they lend themselves to a large array of applications. Cylindrical magnets are a good choice for handcrafted items including delicate woodwork or refined ceramics as they can be recessed into the material to provide a permanent and reliable hold with minimal visual impact. Magnets can be used in this way to create a magnetic latch or a means of displaying an art or craft piece without disrupting the visual effect.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
