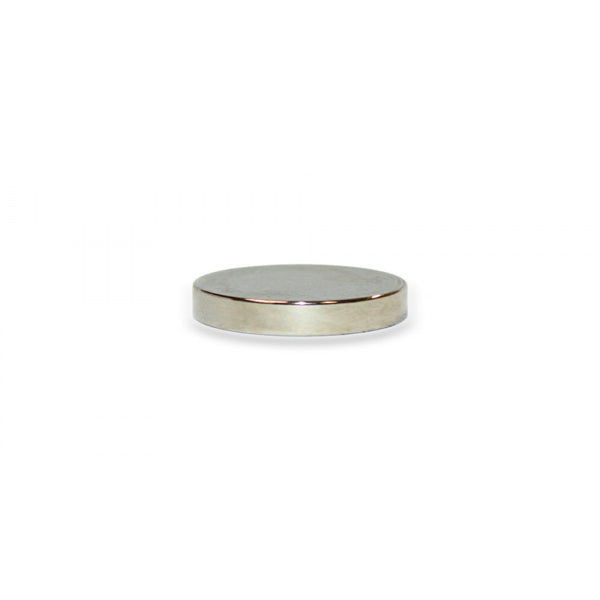

Neodymium Disc Magnet - 15mm x 1mm | N35

Product code: 20022

$2.31for 1 to 9 items
$2.01buy 10 to 99 itemsand save 12%
$1.75buy 100+ itemsand save 24%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 15mm x 1mm | N35

Rated 4.8 out of 5
Based on 5 reviews
Product Code 20022
Pull Force* 0.757 kg
Weight 9 gm
Style Rare Earth Disc magnet
Gauss 800
Grade N35
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:1mm, Diameter:15mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 15mm x 1mm | N35

Magnetic Product Description:

This rare earth disc has a diameter of 15mm and a height of 1mm. It has a pull force of 0.757kg. It is identified by the AMF magnet part number 20022.


Uses for our rare earth disc magnets:

As one of the smallest Neodymium discs AMF have in stock, these magnets have an incredible thickness of only 1mm! Their diameter is 15mm and they have a surprising holding capacity or pull force of 0.757kg (in optimal conditions). That's impressive! These rare earth magnets are highly valued for their great size to strength ratio and are sometimes used for holding lightweight products on display or can be placed within high-quality or bespoke brochure covers or binders to hold them shut. The high strength and compact size of Neodymium magnets is the major attribute they bring to the table of designers, scientists and engineers. Small magnets like these are often visually undetectable while emitting a strong magnetic field that can make products unique or perform more efficiently.

Neodymium Disc Magnet - 15mm x 1mm | N35 (20022)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
263-294 N/A
Max Energy Product(BH)max(MGOe)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 263-294 N/A
Max Energy Product(BH)max(MGOe) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
