Neodymium Pot Magnet - Diameter 35mm x 12mm | M6 Internal Thread x 8.8mm
AMF stocks a large amount of Neodymium Pot Magnets. The corrosion and damage protection provided by the steel cap further enhances the versatility of this powerful holding pot magnet. This holding pot magnet has a female thread and is single-sided with a powerful 24 KG holding force. The threaded pot magnet has a pre-drilled hole in the casing that can accommodate a hook or eyelet attachment which, when fitted, makes this pot magnet one of the most practical stock magnets in the AMF range. Some of the common holding applications include - POS, Retail and Signage, Warehouse and Industrial use, Others include Doors, Gates and Latches along with Fishing and Marine use.

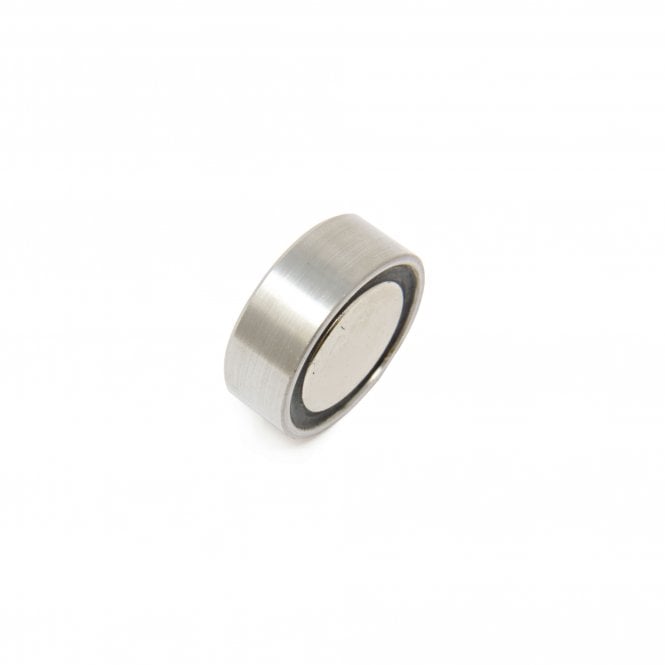

This magnet is a highly effective holding device with the magnetic field at the base being mostly North in orientation.

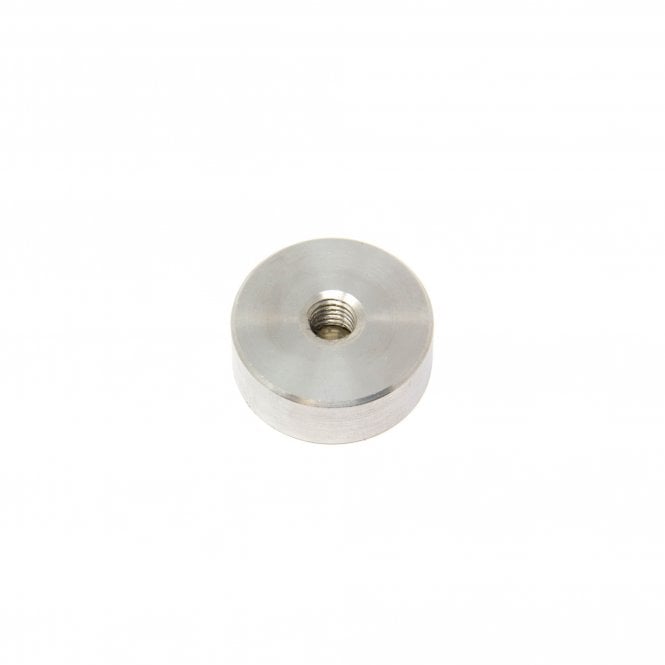

This Magnetic Pot Holder has an outer diameter of 35mm, and a height of 12mm. It has an internal M6 thread of 8.8mm depth and a pull force of 24 kilograms. This product is identified by AMF Magnetics Product Code AMFYPH35, and is sold per magnet.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
