Neodymium Pot Magnet with Round Hole - 32mm x 8mm
Product code: AMFYPB32
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Neodymium Pot Magnet with Round Hole - 32mm x 8mm
Magnetic Product Description:

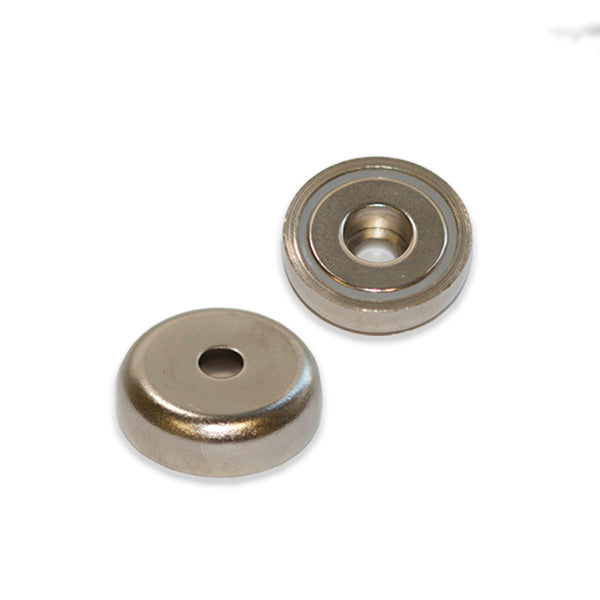

This rare earth pot magnet has an outside diameter of 32mm and an inside diameter of 5.5mm with an internal flange hole of 9mm. This round hole pot magnet has a thickness of 8mm, a pull force of 23kg and a weight of 36 grams. It is identified by the AMF magnet part number AMFYPB32.
Uses for our rare earth round hole pot magnets:
A bolt can be used to position this rare earth holding pot magnet. Neodymium holding pot magnets are high strength rare earth magnets in a mild steel cap for extra protection against damage. Due to the protective cover on these pot magnets, they are a single sided magnet.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 7.9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
