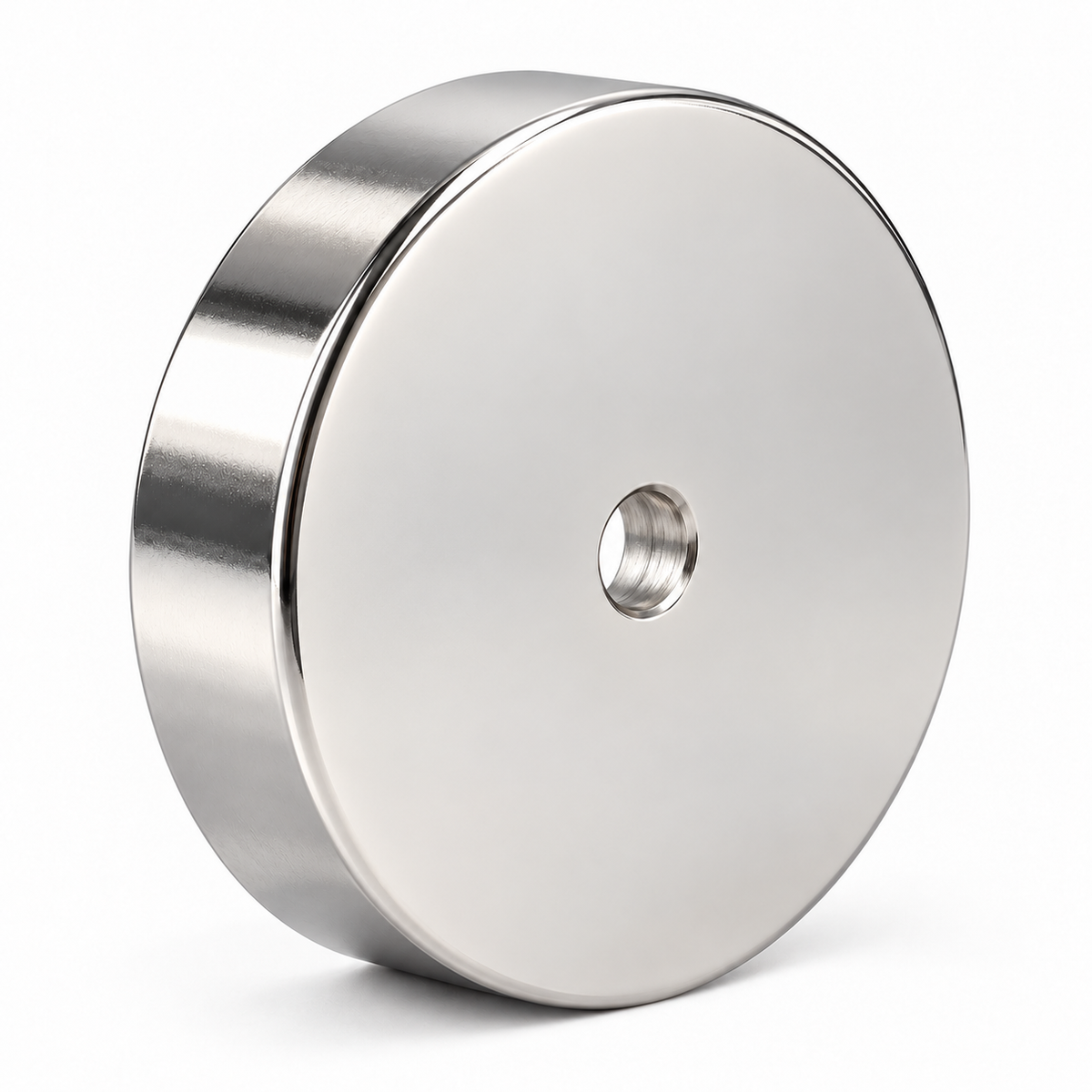

Neodymium Pot Magnet with Round Hole - 75mm x 18mm

Product code: AMFYPB75

$139.67for 1 to 9 items
$90.56buy 10 to 99 itemsand save 35%
$71.95buy 100+ itemsand save 48%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Round Hole - 75mm x 18mm

Product Code AMFYPB75
Pull Force* 155 kg
Weight 471 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 18mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Round Hole - 75mm x 18mm

Magnetic Product Description:

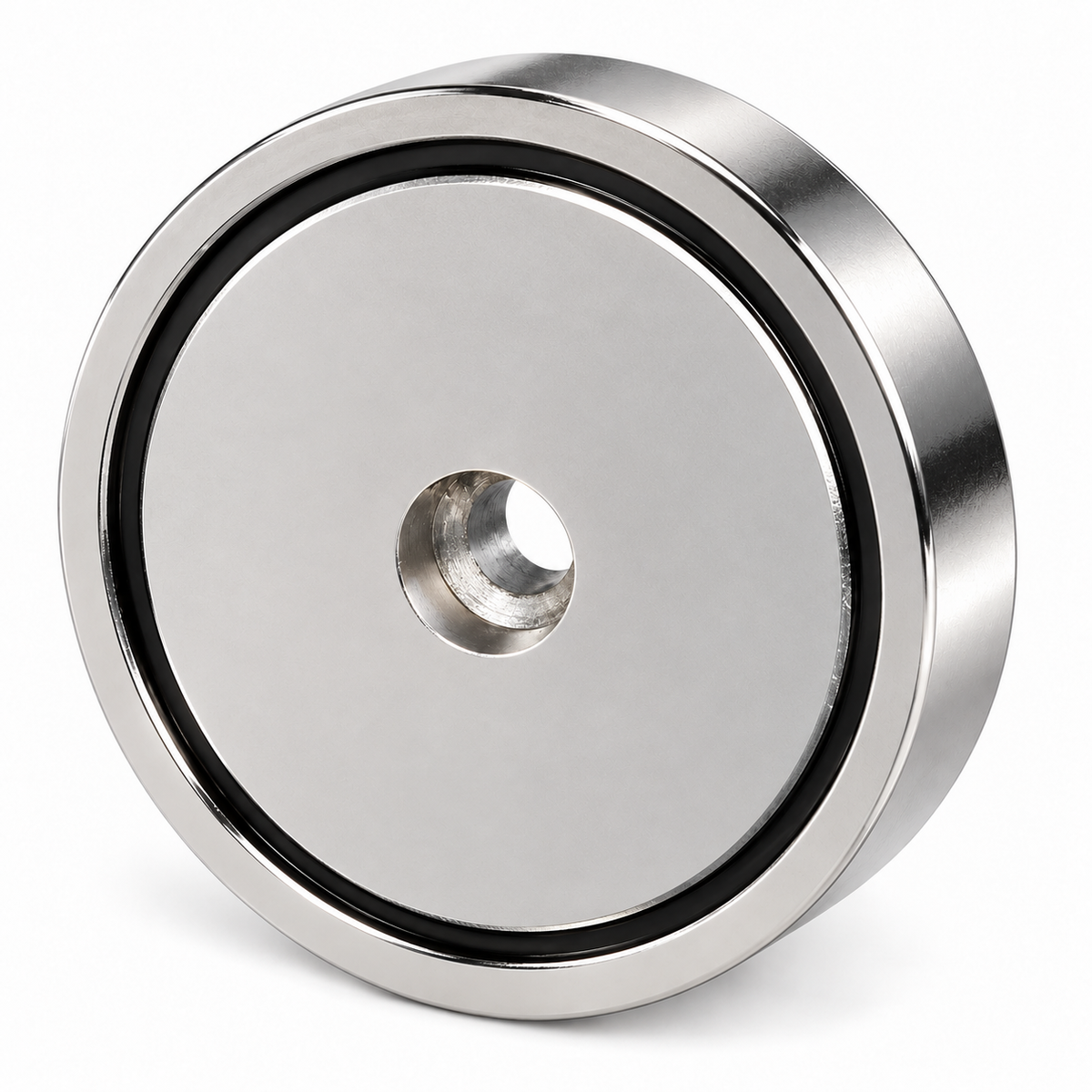

This rare earth pot magnet has an outside diameter of 75mm and an inside diameter of 10.5mm with an internal flange hole of 18mm. This round hole pot magnet has a thickness of 18mm, a pull force of 155kg and a weight of 471 grams. It is identified by the AMF magnet part number AMFYPB75.


Uses for our rare earth round hole pot magnets:

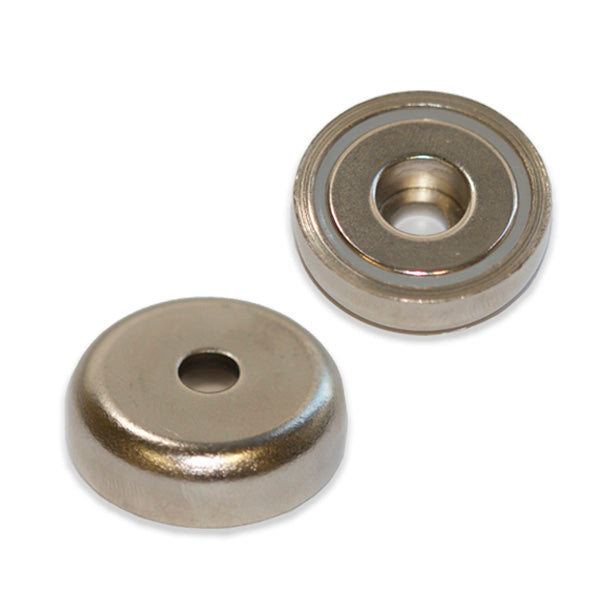

Our Rare Earth Holding Pot magnets with Round Holes consist of a powerful Neodymium magnet set in a mild steel cap. This cap protects the brittle magnet within from chipping or cracking, furthermore, the protective cover affects the magnetic field, projecting it downward to the base, so both North and South poles have some presence at the base or holding surface. The pull force on the opposite side is reduced and effectively creates a single-sided magnet that is highly beneficial in applications where any stray magnetic field is undesirable. These Pot magnets provide an easy non-invasive solution for attaching and suspending metal objects to just about any surface.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot Magnet with Round Hole - 75mm x 18mm (AMFYPB75)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
