Neodymium Pot Magnet with Round Hole - 48mm x 11.5mm

Product code: AMFYPB48

$51.84for 1 to 9 items
$41.00buy 10 to 99 itemsand save 20%
$32.18buy 100+ itemsand save 37%

Prices are GST Incl.

Volume pricing available on request

Neodymium Pot Magnet with Round Hole - 48mm x 11.5mm

Product Code AMFYPB48
Pull Force* 63 kg
Weight 114 gm
Style Rare earth round hole pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 11.5mm
*Measured against up to 10mm mild steel.
Neodymium Pot Magnet with Round Hole - 48mm x 11.5mm

Magnetic Product Description:

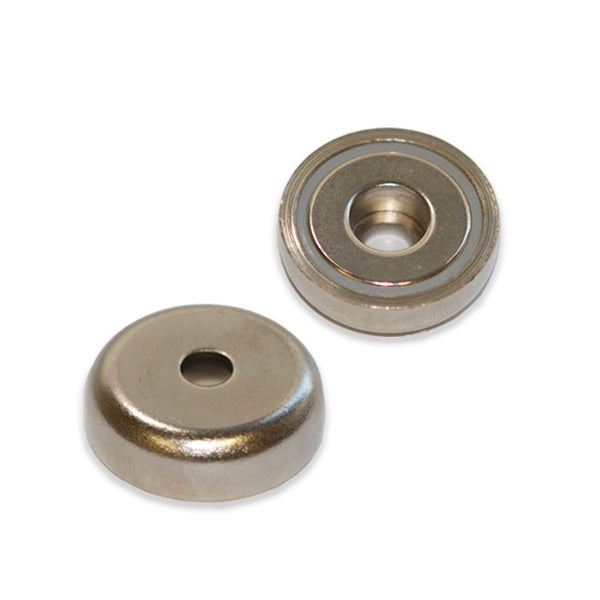

This rare earth pot magnet has an outside diameter of 48mm and an inside diameter of 8.5mm with an internal flange hole of 15mm. This round hole pot magnet has a thickness of 11.5mm, a pull force of 63kg and a weight of 114 grams. It is identified by the AMF magnet part number AMFYPB48.


Uses for our rare earth round hole pot magnets:

These Neodymium Pot Magnets have a round hole making them easy to attach using a bolt or by slotting them onto a protruding rod in a mechanical apparatus. The internal magnet is protected by a steel cap which enhances the magnetic field through the front face and reducing the magnetic field produced through the reverse side. This also means the pull-force of a pot magnet is stronger than a standard magnet. Popular with people working in the farming and mining sectors, these magnets have a robust and reliable hold that makes them ideal for people working with heavy machinery or in dynamic work environments.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPB16 16 3.5 6.5 5 4 6
AMFYPB20 20 4.5 8 7 6 12
AMFYPB25 25 5.5 9 8 14 23
AMFYPB32 32 5.5 9 8 23 36
AMFYPB36 36 6.5 11 7.9 29 50
AMFYPB42 42 6.5 11 9 32 73
AMFYPB48 48 8.5 15 11.5 63 114
AMFYPB60 60 8.5 15 15 95 240
AMFYPB75 75 10.5 18 18 155 471

Neodymium Pot Magnet with Round Hole - 48mm x 11.5mm (AMFYPB48)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
