Female Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with Rubber Case

Product code: RCND22F

$8.51 each for 1 to 9 items
$7.34buy 10+ itemsand save 13%
Total
$8.51

Not enough in stock. Please choose a lower quantity.

Minimum order quantity is 1

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Female Thread Neodymium Pot Magnet - Diameter 22mm x 6mm with Rubber Case

Rated 5.0 out of 5
Based on 1 review
Product Code RCND22F
Pull Force* 5kg
Weight 12 gm
Style Rare Earth female thread pot magnet
Grade N35
Direction of Magnetisation Axially magnetised through the 6mm
Dimensions Thickness:6mm, Height:Post height 3mm, Diameter:22mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

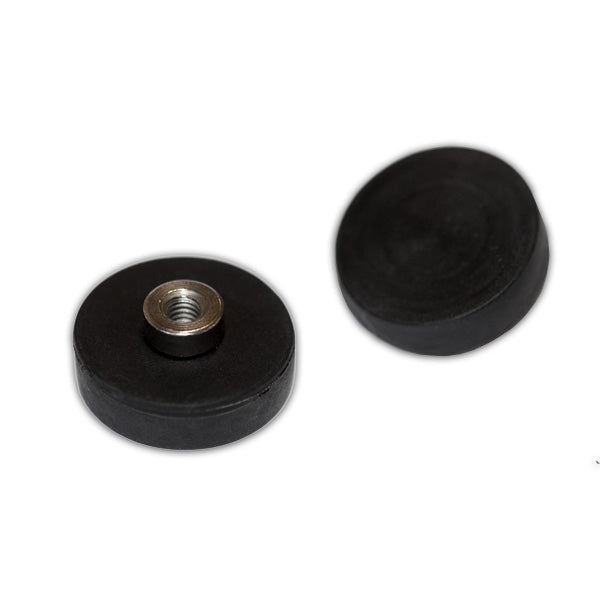

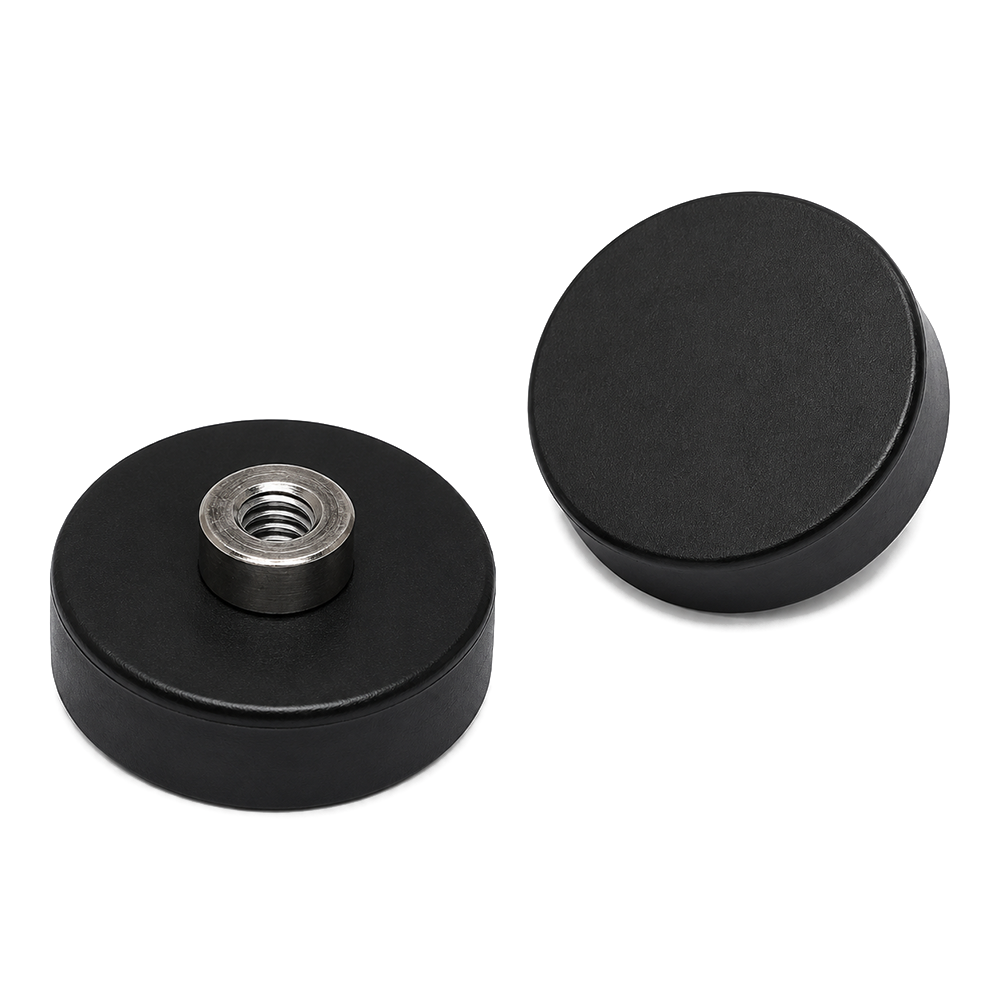

This rare earth female threaded pot magnet has a diameter of 22mm, a post height of 3mm, a base thickness of 6mm, a M3 female thread, and a Santoprene rubber coating that protects delicate surface areas. This female threaded magnet has a pull force of 5kg and a weight of 12 grams. It is identified by the AMF magnet part number RCND22F.


Uses for our Rare Earth female thread pot magnets:

These Rubber Coated Neodymium Pot magnets have a Female Thread for attachment with a bolt. The coating protects delicate surfaces like glass or paints from scratching and also offers a degree of anti-slip protection to applications where this is a problem. When magnets are bolted onto equipment or material that is non-metallic, these items can now be attached to vehicles, motorhomes, temporary buildings shipping containers or any other metal surface. This can be done without penetrating, damaging or scratching the surface and without the need for trade skills or tools.

Used in conjunction with a Male threaded counterpart, two metal items can be bonded magnetically in a permanent or temporary manner and free of screws, bolts, nails or rivets and the penetrative damage associated with their use. Storing equipment or tools in this fashion can be convenient and efficient and provides space-saving benefits in many cases. For truckers, campers and emergency service workers, these Rubber Coated Holding magnets offer a fast and easy method of attachment for things like temporary containment lines, warning signs and flashing lights while also protecting their vehicle paint finishes.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by David B.
I recommend this product
Rated 5 out of 5
Review posted

Very handy little magnets

I got 4 of these magnets to do one job to hold my glue pots up onto steel frame studs but only needed two of them. They are great

Loading...
Was this helpful?

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
