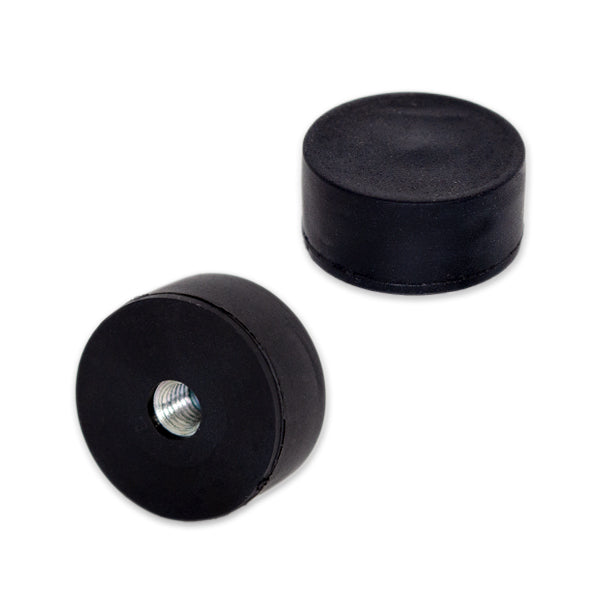

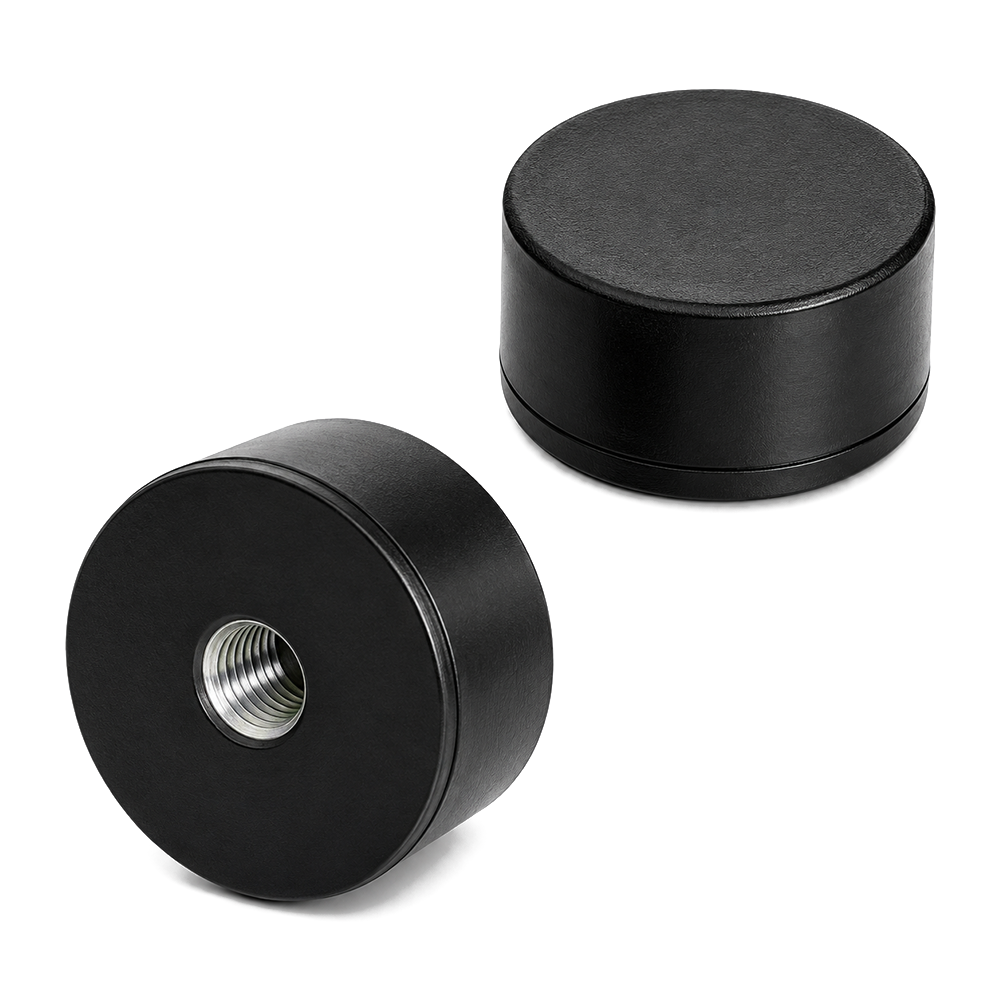

Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread

Product code: PMYP-G22RC

$5.27for 1 to 9 items
$4.54buy 10+ itemsand save 13%

Prices are GST Incl.

Volume pricing available on request

Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread

Product Code PMYP-G22RC
Pull Force* 3.8kg
Weight 12 gm
Style Rare Earth female thread pot magnet
Grade N42
Direction of Magnetisation Axially magnetised
Dimensions Thickness:10mm, Diameter:22mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

Rubber Coated Pot Magnet D22x10mm M5x6 internal thread, 3.8kg N42.

22mm Dia x 10mm Thick x M5 Thread Hole Rubber Coated Pot Magnet.


Uses for our Rare Earth female thread pot magnets:

  • The thread depth is 6mm with a flat bottom in the tapped hole.
  • This is important since we want the full 6mm of thread engagement.
  • N42 (NdFeB) neodymium magnet.
  • Rubber coated to increase slide resistance.
  • Each magnet can support 3.8kg vertically from the magnetic face when in flush contact with a mild steel surface of equal thickness.

Rubber Coated Pot Magnet 22mm x 10mm M5x6 thread (PMYP-G22RC)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.3-1.35 N/A
Remanence Br(kGs)
13-13.5 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
318-350 N/A
Max Energy Product(BH)max(MGOe)
40-44 N/A
Grade N42 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.3-1.35 N/A
Remanence Br(kGs) 13-13.5 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 318-350 N/A
Max Energy Product(BH)max(MGOe) 40-44 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
