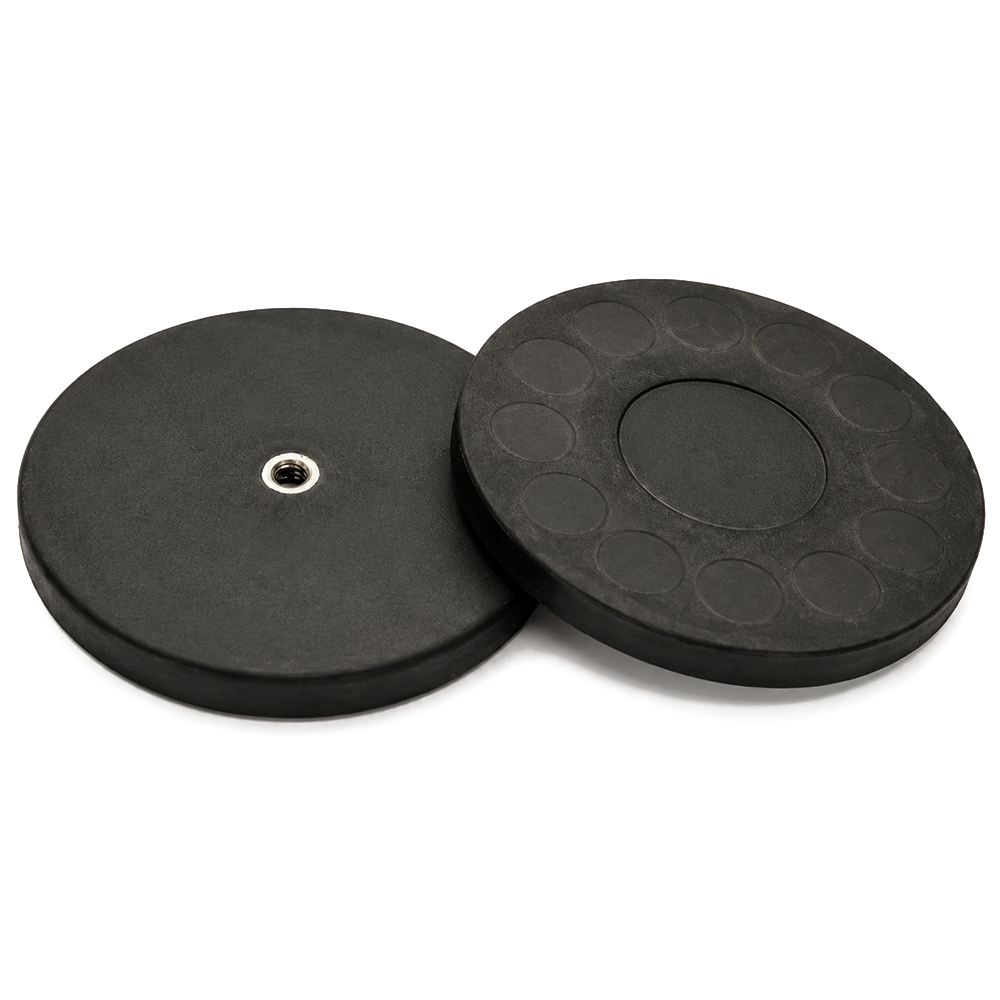

Female Thread Neodymium Pot Magnet - Diameter 88mm x 8mm with Rubber Case

Product code: RCND88F

$35.97for 1 to 9 items
$29.84buy 10+ itemsand save 17%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot Magnet - Diameter 88mm x 8mm with Rubber Case

Product Code RCND88F
Pull Force* 42 kg
Weight 210 gm
Style Rare Earth female thread pot magnet
Grade N35
Coating Santoprene Rubber
Direction of Magnetisation Axially magnetised through the 8mm
Dimensions Height:8.3mm, Diameter:88mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare earth female threaded pot magnet has a diameter of 88mm, a thickness of 8.3mm, a M8 female thread, and a Santoprene rubber coating that protects delicate surface areas. This female threaded magnet has a pull force of 42kg and a weight of 210 grams. It is identified by the AMF magnet part number RCND88F. Threaded hooks and eyelets are sold separately for this product, if required. Get in touch with us for pricing.


Uses for our Rare Earth female thread pot magnets:

These Rubber Coated Neodymium Pot magnets have a Female Thread allowing them to be attached to other materials with a bolt. The rubber coating also resists corrosion and protects easily scratched surfaces from damage. These Pot magnets can accept an eyelet or hook screwed into its threaded central void, for suspending outdoor equipment, heavy-duty gate and door latching, hanging signage and suspending guide ropes or barriers magnetically from metal structures without nails, screws, wire or glue. The rubber coating protects painted surfaces from scratching and offers substantial long-term resistance to corrosion. Farmers, fishers, campers, food-truck operators, and emergency workers are able to, at a moment’s notice, create a fixing point on the outside of their vehicles for stringing up hazard tape or securing signage, lighting, public address and. sound systems, cooking equipment or any other paraphernalia they need.

Female Thread Neodymium Pot Magnet - Diameter 88mm x 8mm with Rubber Case (RCND88F)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
263-294 N/A
Max Energy Product(BH)max(MGOe)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 263-294 N/A
Max Energy Product(BH)max(MGOe) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
