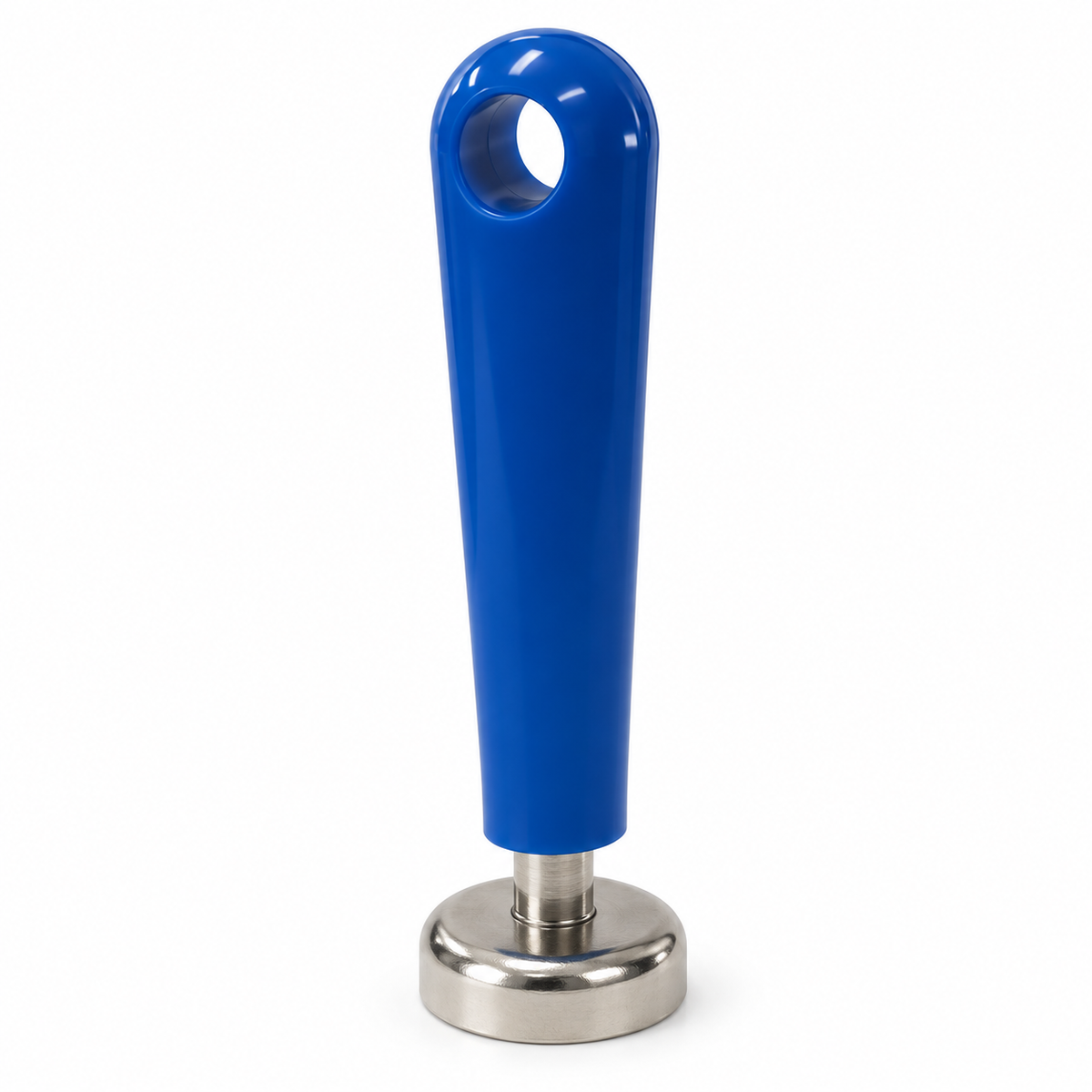

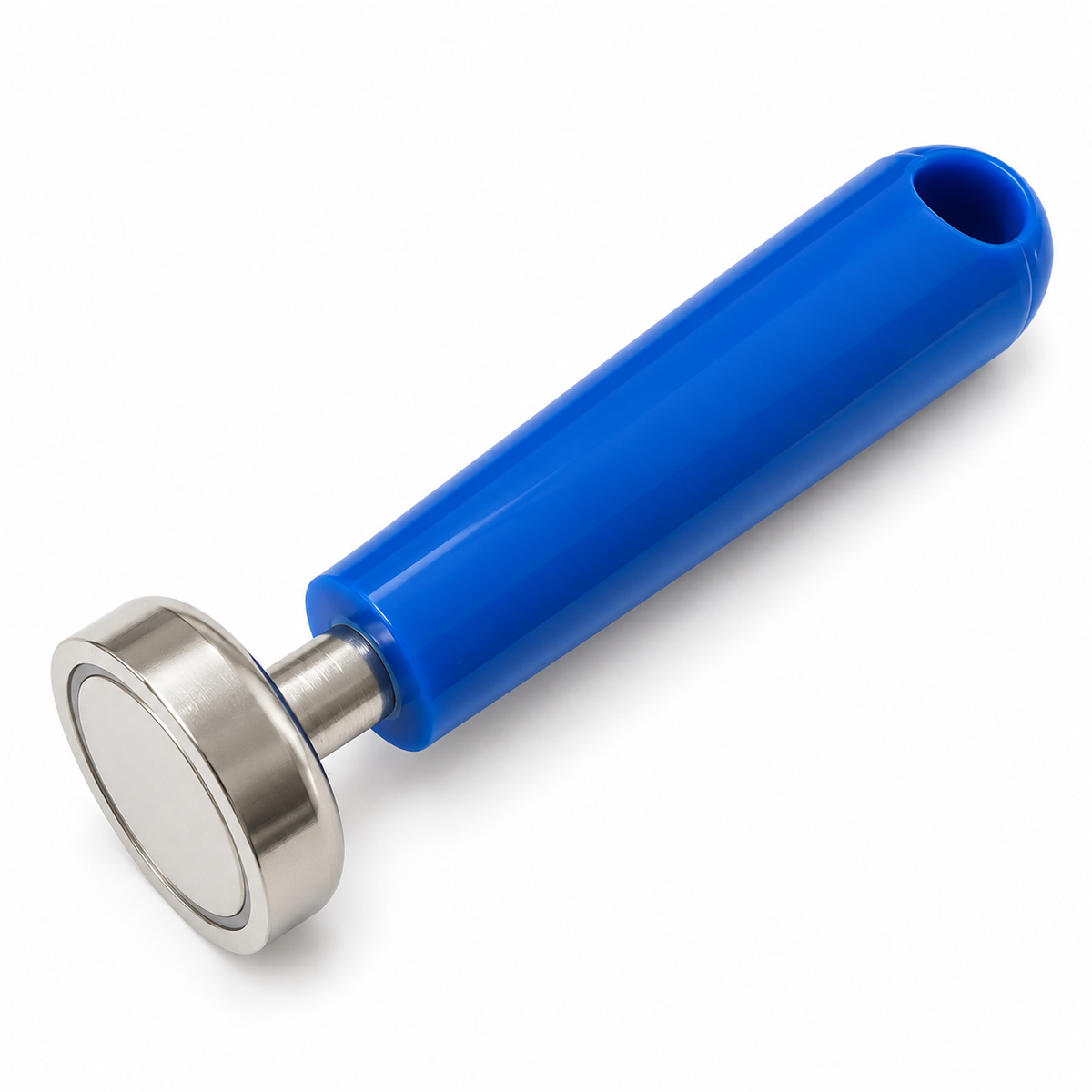

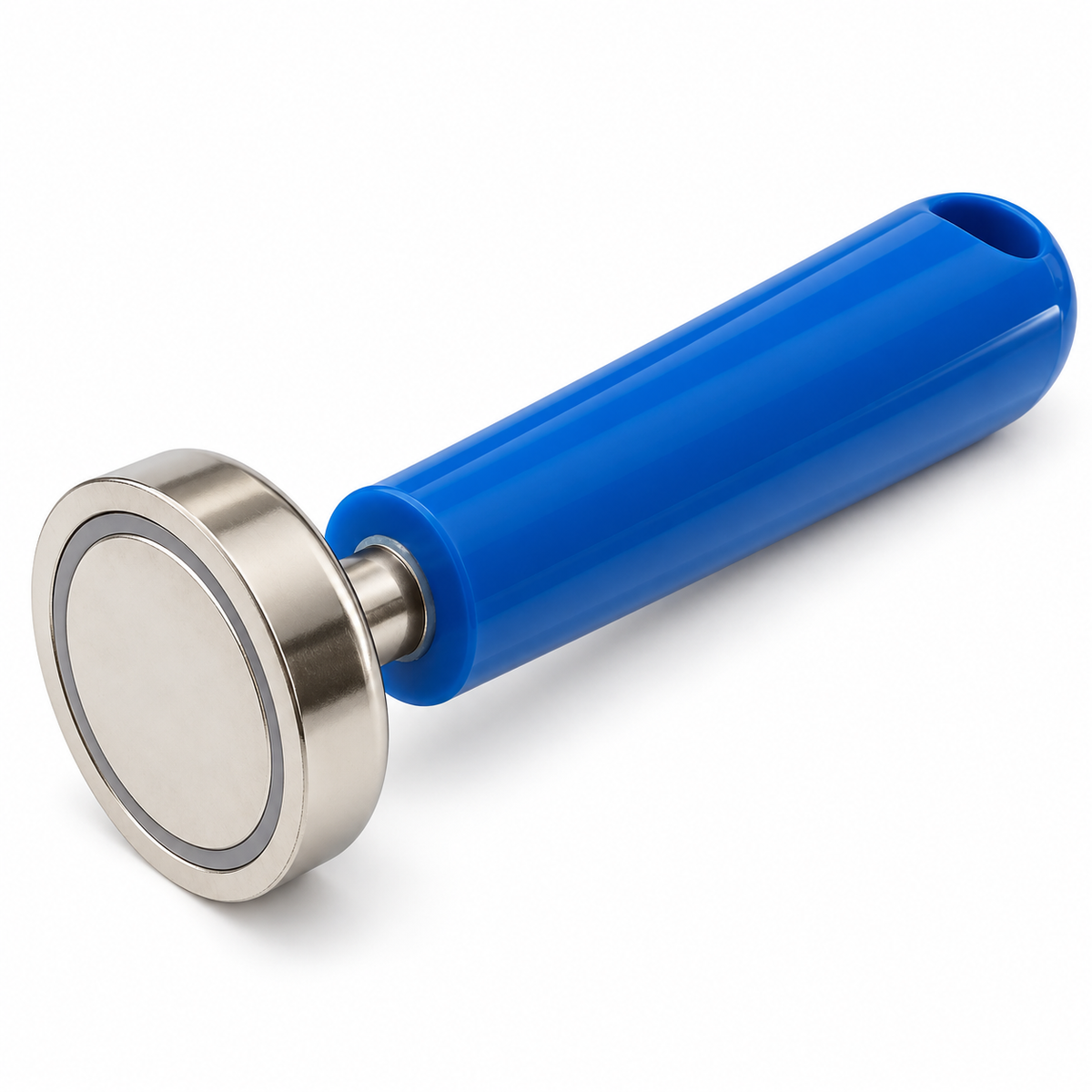

Female Thread Neodymium Pot Magnet with Detachable Blue Handle - D25mm x 95mm
Product code: AMFYPD25SBH
Australia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
This Female Thread Neodymium Pot Magnet with Detachable Blue Handle – D25mm x 95mm is a compact magnetic fastening solution for industrial, retail and DIY applications. Featuring an N38 neodymium magnet housed in a protective steel pot, it delivers a rated 19kg pull force for securing items to suitable ferrous steel surfaces.
The detachable blue handle provides a convenient grip for positioning and handling the magnet. Its M5 threaded connection allows the handle to be removed when required, offering flexibility for mounting and temporary fastening tasks.
The steel pot housing concentrates magnetic attraction at the active face and helps protect the neodymium core from impact and chipping. With a 25mm pot diameter and 15.8mm casing height, this handled rare earth magnet combines strong holding capacity with a manageable size.
Key Features
-
19kg rated pull force: Strong magnetic holding capacity in a compact pot.
-
N38 neodymium core: High-performance rare earth magnet.
-
Detachable blue handle: Convenient grip for positioning and handling.
-
M5 threaded connection: Allows the handle to be attached or removed.
-
Protective steel housing: Concentrates magnetic pull at the working face and helps shield the magnet from damage.
-
Versatile fastening: Suitable for industrial, retail and DIY applications on compatible steel surfaces.
Applications
This neodymium pot magnet with handle is suitable for:
-
Temporary fastening and positioning on steel surfaces.
-
Mounting tasks where a removable handle is useful.
-
Retail display and fixture positioning.
-
Workshop, fabrication and maintenance tasks.
-
DIY projects requiring a compact magnetic attachment.
Use & Handling
The rated pull force is a reference value, rather than a guaranteed load capacity in every application. Actual holding strength depends on the steel surface, thickness, contact area, coatings and direction of force. Sliding resistance differs from direct pull-off strength.
Position the magnet carefully to avoid trapped fingers, and avoid dropping or striking the assembly.
FAQs
Is the blue handle removable?
Yes. The handle attaches through an M5 threaded connection and can be detached when required.
What surfaces will this pot magnet attach to?
It attaches to suitable ferrous steel surfaces. It will not magnetically attach to timber, plastic, glass or aluminium.
What does the steel pot housing do?
It concentrates magnetic attraction at the active face and helps protect the neodymium core from impact and chipping.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
