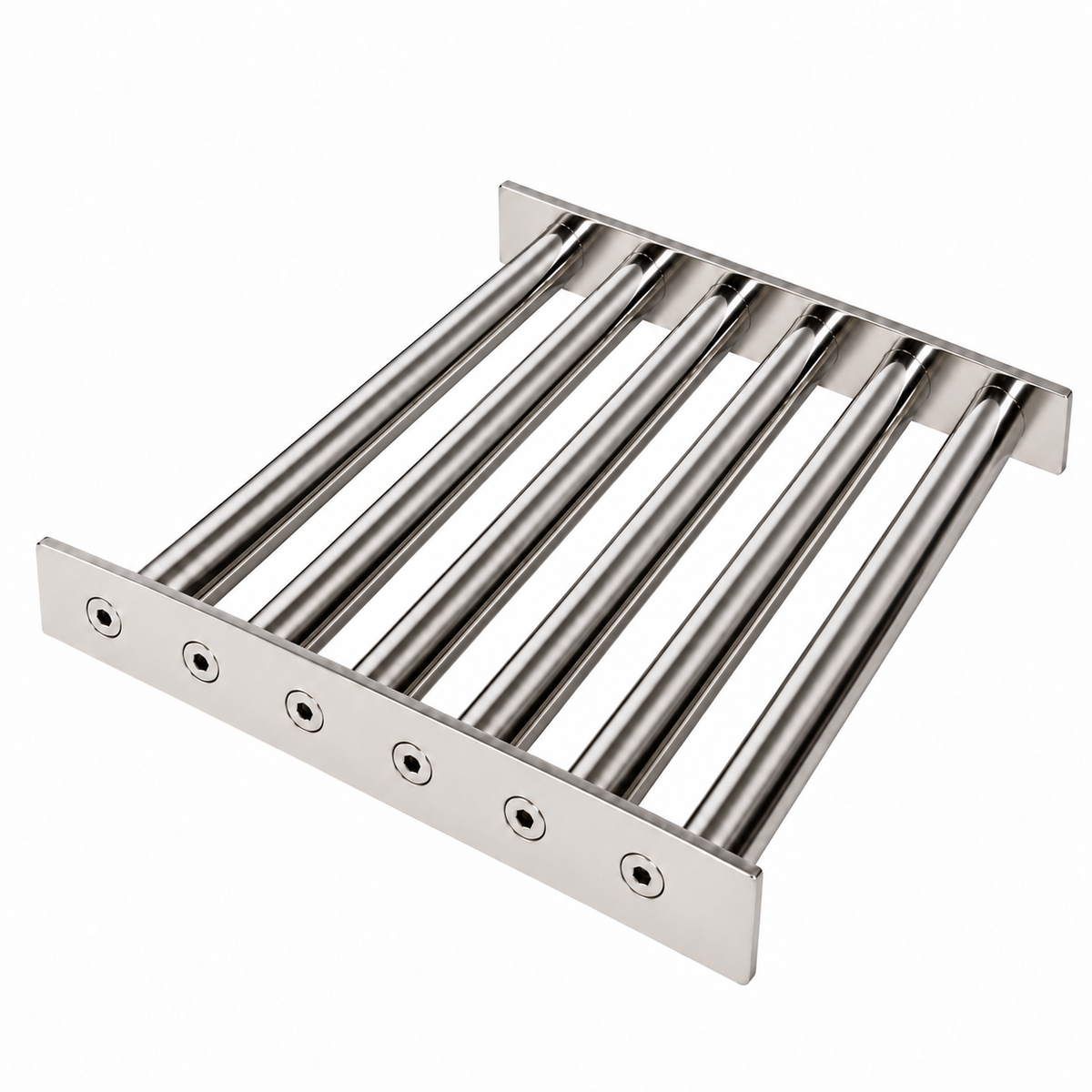

HACCP Compliant H-Shaped Grate Magnet - 310mm x 310mm | Min 10,000 Gauss
Product code: 93163HC
Australia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Please note: this product has a lead time of up to 3 weeks.
The HACCP Compliant H-Shaped Grate Magnet – 310mm x 310mm | Min 10,000 Gauss is designed to capture ferrous metal contamination from material passing through the grate. It supports magnetic separation and contamination control within HACCP-based processing programmes.
A Certificate of Conformity (CoC) is available for this product upon request.
This square grate magnet features six magnetic separator bars, positioned 50mm centre-to-centre, with 25mm clear gaps between bars. A minimum magnetic rating of 10,000 Gauss helps attract and retain ferrous particles as material passes close to the magnetic surfaces.
The bars are supported by two stainless steel side pieces, forming an H-shaped configuration with no welded end pieces. Its 310mm x 310mm footprint is suitable for processing installations where the grate dimensions and bar spacing match the available space and material flow requirements.
Key Features
-
310mm x 310mm footprint: Square grate with an H-shaped construction.
-
Minimum 10,000 Gauss rating: High magnetic strength for capturing ferrous contamination.
-
Six separator bars: Provide multiple magnetic capture surfaces across the grate.
-
50mm centre spacing: Consistent bar positioning with 25mm clear gaps.
-
Stainless steel side supports: Two side pieces hold the separator bars in position.
-
No welded end pieces: Open-ended H-shaped frame configuration.
-
HACCP compliant: Supports metal contamination control within a managed HACCP programme.
Applications
This magnetic grate can be considered for ferrous contamination control in:
-
Food ingredient and dry product processing.
-
Powder, grain and granular material handling.
-
Compatible hoppers, chutes and gravity-fed processing lines.
-
Product protection before downstream processing or packaging.
Suitability depends on the material being processed, flow rate, installation position and the type of contamination requiring removal.
Specifications
| Specification | Details |
|---|---|
| Product type | H-shaped magnetic grate |
| Overall dimensions | 310mm x 310mm |
| Footprint | Square |
| Minimum magnetic rating | 10,000 Gauss |
| Number of separator bars | 6 |
| Bar spacing, centre-to-centre | 50mm |
| Clear gap between bars | 25mm |
| Side supports | 2 stainless steel pieces |
| Welded end pieces | None |
| Compliance | HACCP compliant |
Compliance & Care
Magnetic separation supports a broader contamination control programme. Establish inspection and cleaning procedures appropriate to your processing conditions, removing captured metal regularly to maintain effective performance.
Handle the grate carefully, as strong magnetic attraction can create pinch hazards when brought close to ferrous objects.
FAQs
What does the minimum 10,000 Gauss rating mean?
Gauss measures magnetic flux density. The stated minimum rating describes the grate’s magnetic strength. Capture performance also depends on particle size, material flow and proximity to the separator bars.
How many magnetic bars does this grate contain?
The grate contains six separator bars, positioned 50mm apart from centre to centre, with 25mm clear gaps between them.
How is the H-shaped grate constructed?
The six bars are supported by two stainless steel side pieces. There are no welded end pieces.
Does the grate remove all types of metal?
It is designed to capture ferrous contamination. It should not be relied on to remove non-ferrous metals such as aluminium or copper.
Is this grate suitable for my processing system?
Check the 310mm x 310mm footprint and 25mm clear bar spacing against your installation and material flow requirements. Share your application details with our team for assistance selecting a suitable magnetic separator.
No FAQ available
