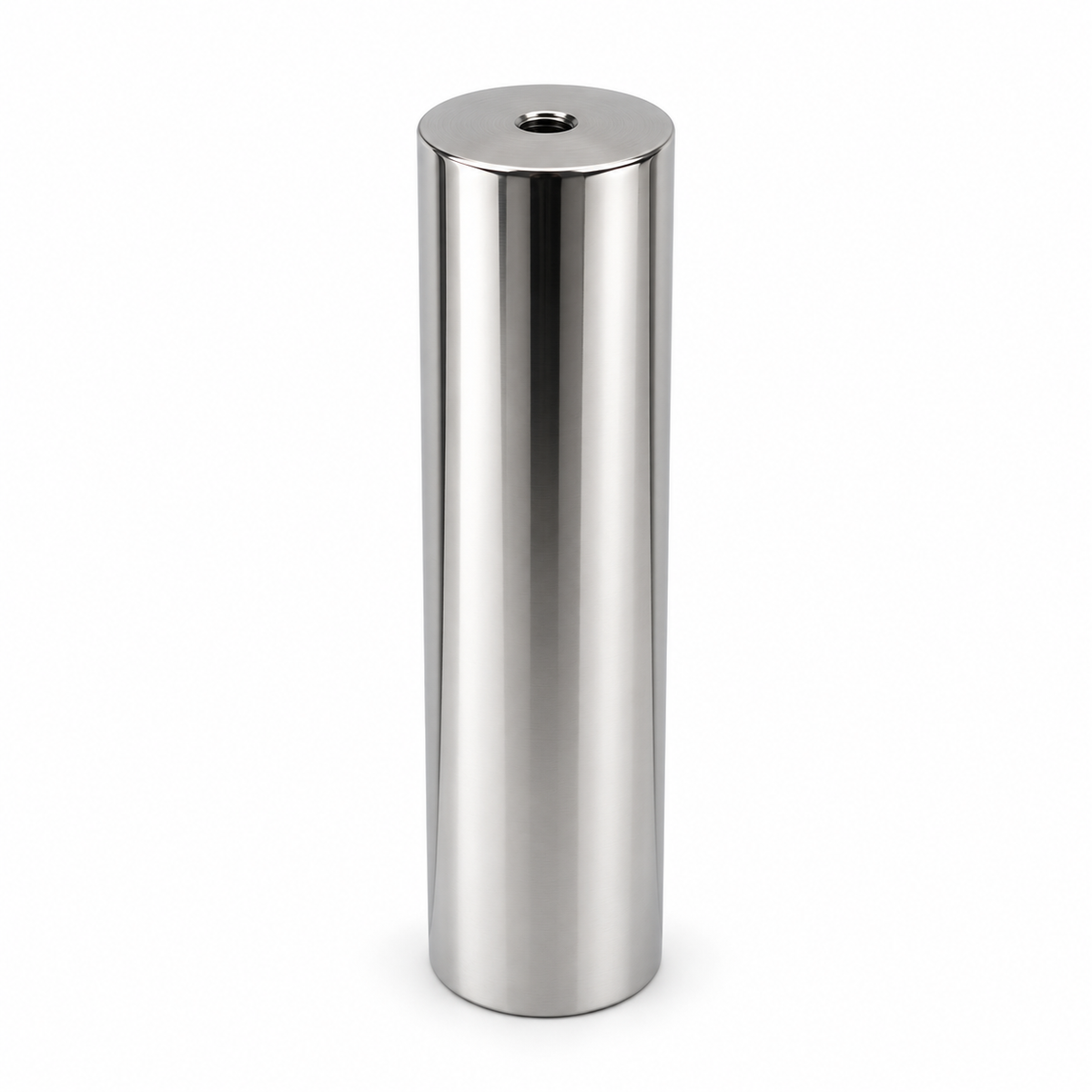

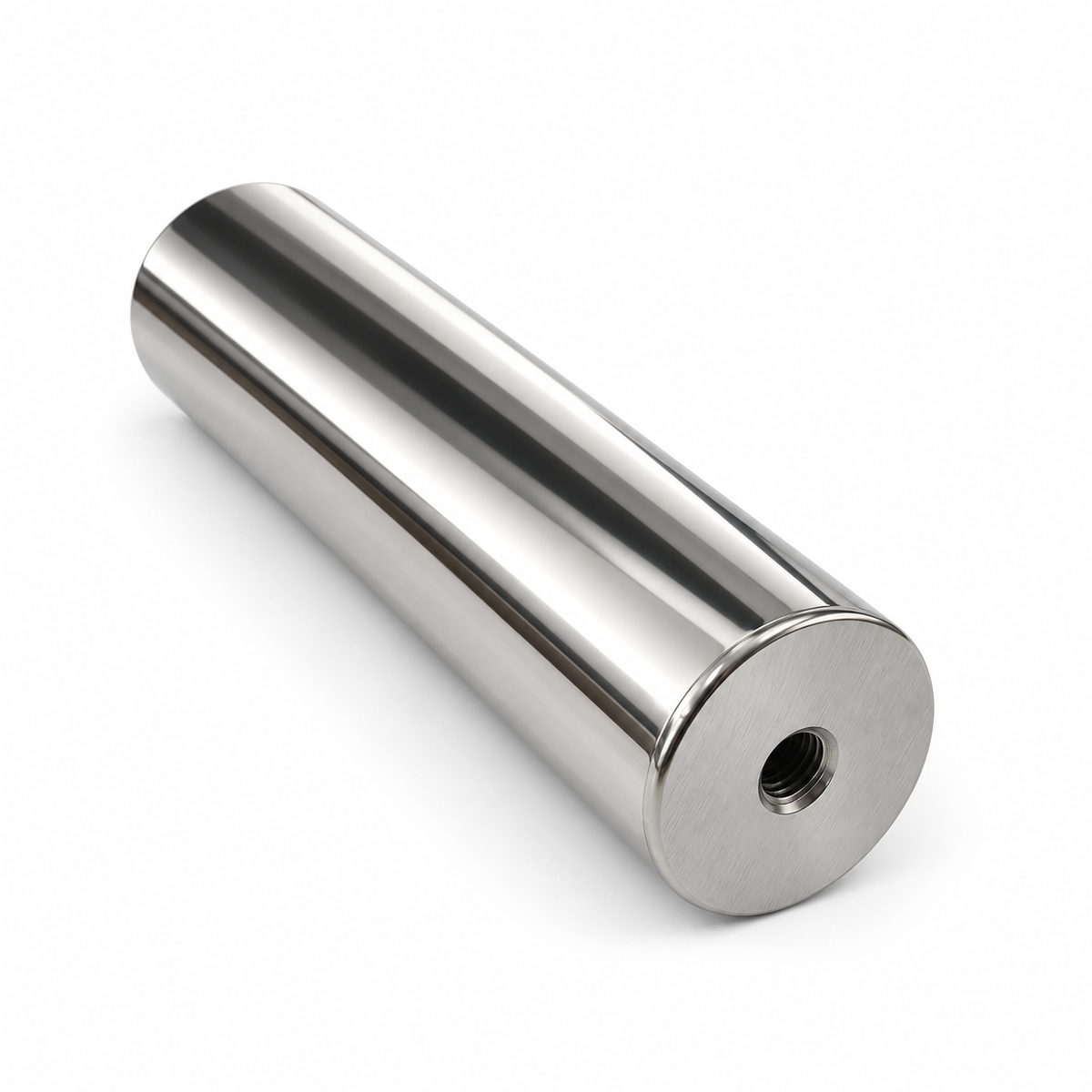

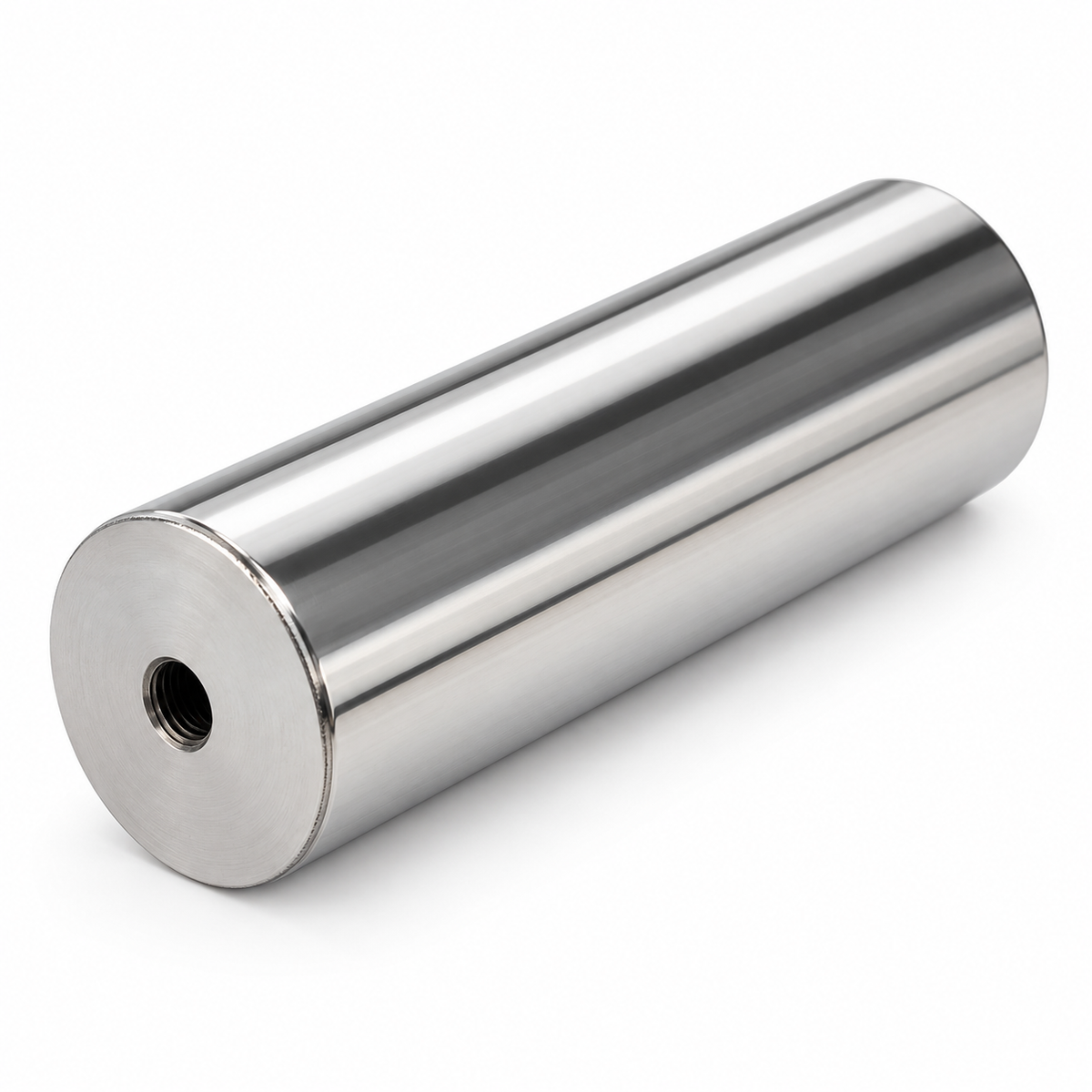

HACCP Compliant Separator Bar Tube Magnet - 25mm x 100mm | M6 Threads | N42SH | High Temperature | Min 10,000 Gauss
Product code: 93110N42SH
Australia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
HACCP Compliant High-Temperature Separator Bar Tube Magnet – 25mm x 100mm | N42SH
The HACCP Compliant Separator Bar Tube Magnet – 25mm x 100mm combines strong Rare Earth magnetic performance with high-temperature resistance for sensor systems, industrial automation and specialised processing equipment. Featuring N42SH Neodymium magnets, a minimum magnetic flux density of 10,000 Gauss (10K Gauss) and a maximum operating temperature of 150°C (302°F), this compact magnetic tube supports demanding industrial applications.
The magnets are enclosed within a SUS316 stainless steel tube, providing corrosion resistance, protection for the internal assembly and a smooth surface for cleaning. M6 × 10mm threads at both ends allow secure mounting to compatible equipment, brackets and custom assemblies.
AMF Magnetics part number: 93110N42SH. A Certificate of Conformity (CoC) is available upon request.
Key Features and Benefits
-
High-temperature performance: Rated for operation up to 150°C (302°F), supporting applications that exceed the temperature limits of standard Neodymium grades.
-
Two N42SH Neodymium magnets: Contains two high-temperature Rare Earth magnets within a protective stainless steel enclosure.
-
Minimum 10,000 Gauss: Provides high magnetic flux density for specialised industrial requirements.
-
SUS316 stainless steel housing: Offers corrosion resistance, mechanical protection and a smooth surface for cleaning and maintenance.
-
M6 × 10mm threads at both ends: Enables secure mounting and integration into compatible equipment.
-
Compact dimensions: Measures 25mm in diameter × 100mm in length for integration into equipment with limited space.
-
Documentation available: A Certificate of Conformity can be requested to support your documentation requirements.
Applications
This high-temperature, axially magnetised separator bar is designed for sensor systems and specialised industrial assemblies exposed to elevated temperatures. Potential applications include:
-
Industrial automation: Magnetic sensing, position detection and custom machinery assemblies.
-
Food and beverage processing: Installation in compatible processing equipment within HACCP-managed operations.
-
Plastics manufacturing: Magnetic sensing and equipment assemblies near heated processes.
-
Packaging production: Machinery incorporating heating, drying or curing stages.
-
Pharmaceutical and chemical processing: Specialised equipment requiring heat-resistant magnetic components and SUS316 stainless steel housing.
-
Material handling: Magnetic sensing, monitoring and positioning assemblies.
-
Heating and sterilisation equipment: Compatible installations operating within the bar’s temperature rating and environmental limits.
Select the bar according to the required magnetic orientation, mounting arrangement, operating temperature and process conditions.
Designed for Elevated Temperatures
Standard Neodymium magnets can lose magnetic performance when exposed to temperatures above their rated limits. This separator tube contains N42SH high-temperature Neodymium magnets and is rated for operation up to 150°C (302°F).
The SUS316 stainless steel enclosure protects the internal assembly and provides a durable, easy-to-clean exterior. Its compact dimensions and threaded mounting points support installation in existing equipment or incorporation into new designs.
Specifications
-
Product: HACCP compliant high-temperature separator bar tube magnet
-
AMF part number: 93110N42SH
-
Diameter: 25mm
-
Length: 100mm
-
Magnet material: Neodymium Rare Earth
-
Magnet grade: N42SH
-
Housing material: SUS316 stainless steel
-
Mounting threads: M6 × 10mm at both ends
-
Magnetic flux density: Minimum 10,000 Gauss (10K Gauss)
-
Maximum operating temperature: 150°C (302°F)
-
Compliance: HACCP compliant
-
Certificate of Conformity: Available upon request
Compliance and Safe Use
For HACCP-managed applications, confirm that the bar’s installation, cleaning procedures and inspection requirements suit your process. A Certificate of Conformity is available upon request to support product documentation.
Handle carefully during installation and maintenance, as strong magnetic attraction can trap fingers or draw nearby steel objects towards the bar. Allow the assembly to cool before handling after high-temperature operation.
Do not exceed the 150°C maximum operating temperature. Confirm compatibility with the intended cleaning chemicals, process conditions and mounting components before installation.
Frequently Asked Questions
What is the maximum operating temperature?
This separator bar is rated for operation up to 150°C (302°F).
What mounting threads does it have?
The bar has M6 × 10mm threads at both ends for mounting to compatible equipment, brackets and custom assemblies.
What magnets are inside the tube?
The housing contains N42SH high-temperature Neodymium Rare Earth magnets.
What stainless steel is used for the housing?
The tube is manufactured from SUS316 stainless steel.
What is the magnetic flux density?
The bar has a specified minimum magnetic flux density of 10,000 Gauss, also expressed as 10K Gauss.
Is a Certificate of Conformity available?
Yes. Request a Certificate of Conformity from AMF Magnetics using part number 93110N42SH.
Is this suitable for every magnetic separation application?
Suitability depends on the required magnetic field arrangement, material flow, operating conditions and installation.
