Internal Thread Neodymium Pot Magnet | Stainless Steel Coating | 40mm x 25mm

Product Code AMFYPSSID40
Pull Force* 40 kg
Weight 100 gm
Coating Stainless Steel
Direction of Magnetisation Through Height
Dimensions Height:25mm, Diameter:40mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

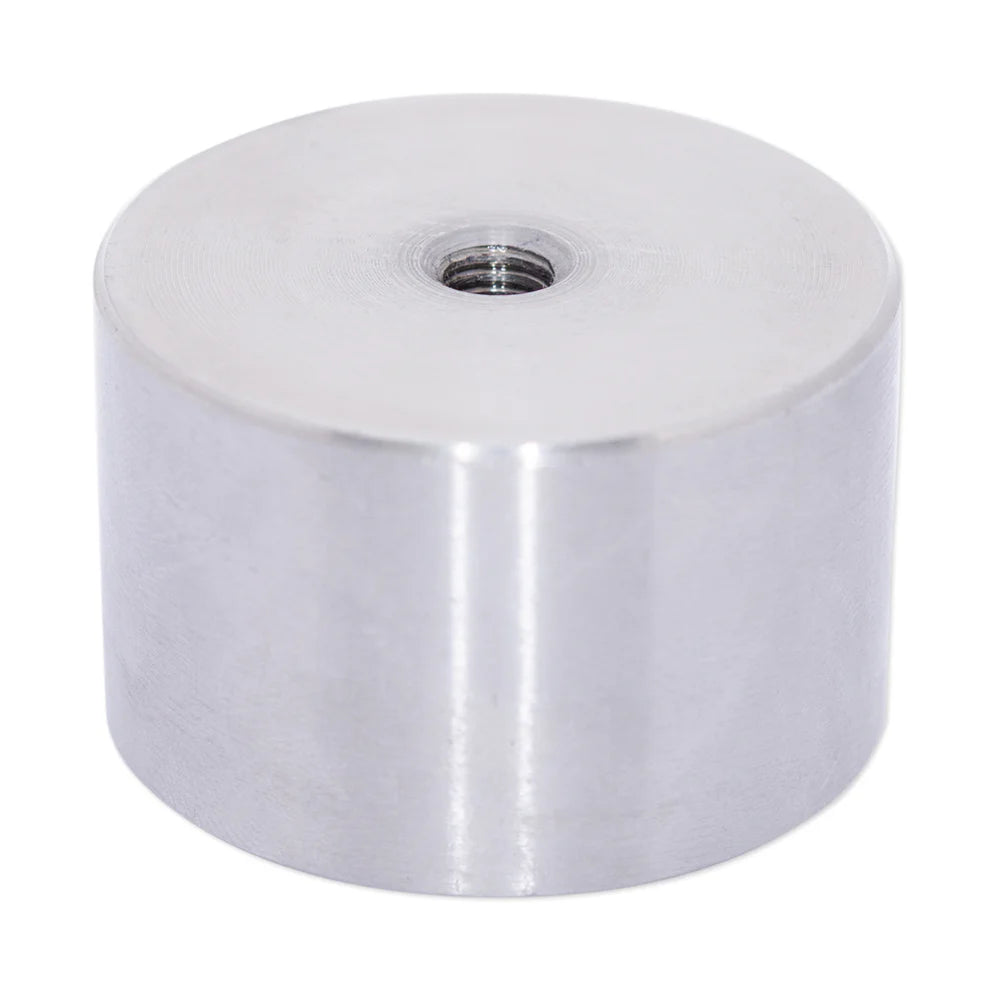

This Rare Earth Female Threaded Pot Magnet has a diameter of 40mm, a total height of 25mm, and an M6 female thread x 12mm depth. This pot magnet has a pull force of 40kg. It is identified by the AMF Magnet part number AMFYPSSID40

Uses for our Female Thread Neodymium Pots with Stainless Steel Coating:

The anti-corrosive properties of the stainless steel coating further increase the versatility of this powerful Neodymium Holding magnet. Stainless steel, unlike most metallic materials, does not oxidise and rust, so for outdoor applications or where the magnet is affected by the weather, moisture or corrosive elements, this style of magnet is ideal.

Stainless steel is made from chromium-based alloys which are also non-magnetic, so this magnet is a highly effective holding device with the magnetic field at the base being North in orientation. The threaded hole in the casing can accommodate a hook or eyelet attachment which, when fitted, makes this Pot magnet one of the most practical magnets available. Stainless steel surfaces do not promote the development of bacteria and are not easily corroded or contaminated. This helps to satisfy hygiene and health and safety requirements that are commonly enforced in food preparation and medical environments or anywhere sterilisation is extremely important.

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
