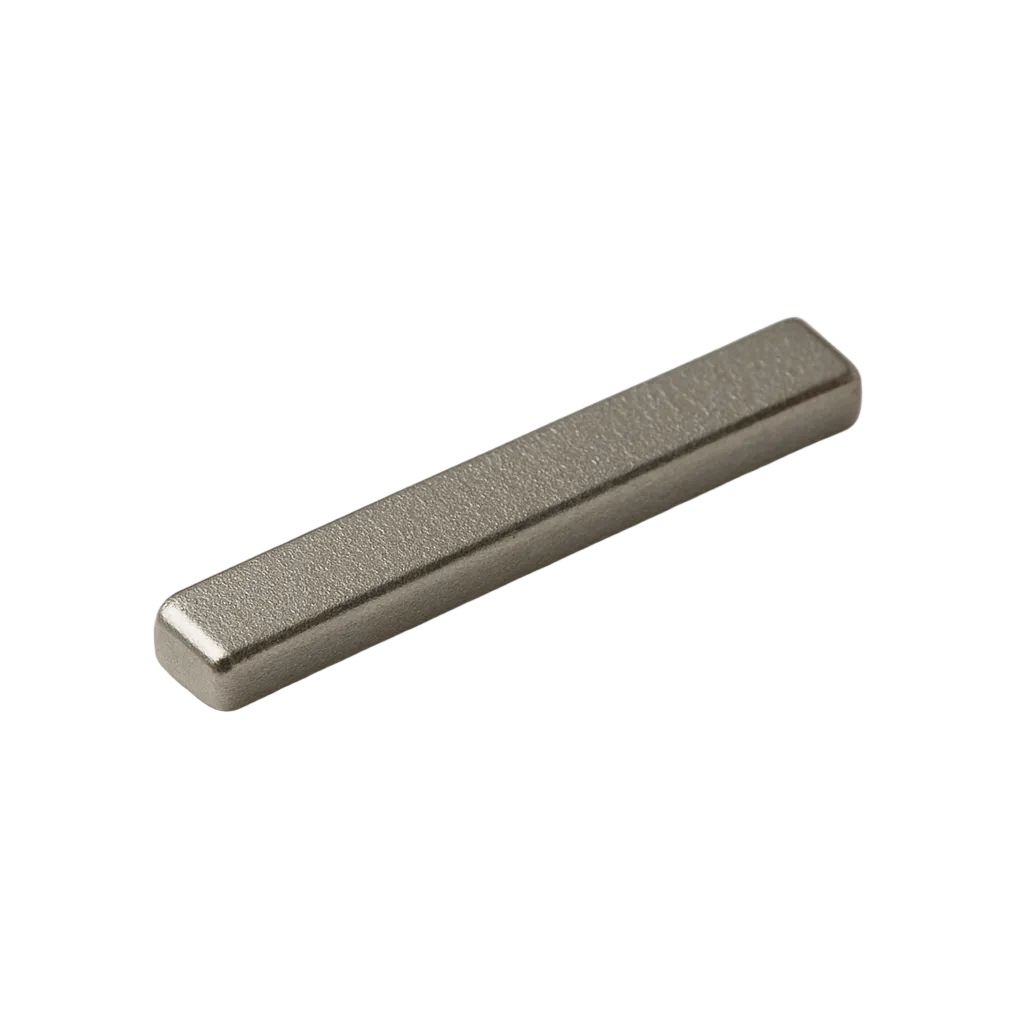

Neodymium Block Magnet – 9mm x 1.3mm x 1mm | N48H | High Temperature 120°C
Product code: B-W1.3H1L9-N48H
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
This Neodymium Block Magnet measures 9mm (L) x 1.3mm (W) x 1mm (H) and is manufactured from powerful N48H Rare Earth material, making it an exceptional choice where both strength and heat resistance are required. With a pull force of 260 grams and a surface field of 4321 Gauss, this compact yet high-performance magnet is engineered for precision applications in electronics, sensors, laboratory instruments, and specialist engineering projects.
This magnet is identified by product code B-W1.3H1L9-N48H.
Thanks to its high-temperature rating of up to 120°C, this magnet maintains its magnetic performance in demanding environments where standard grades may fail. Its slimline dimensions and strong adhesive pull make it ideal for use in miniature devices, custom assemblies, and space-restricted magnetic systems.
Key Features:
Dimensions: 9mm x 1.3mm x 1mm
Material: Rare Earth Neodymium (N48H grade)
High Temperature Resistance: Up to 120°C
Pull Force: 260g
Surface Gauss: 4321
Compact size with high magnetic strength
Applications:
Electronics & Circuitry – for positioning, holding, and sensing applications.
Medical & Laboratory Equipment – precision magnetic solutions in controlled environments.
Engineering & Prototyping – suitable for high-temperature test rigs and assemblies.
Crafts & Custom Builds – strong miniature magnet for creative and technical projects.
AMF Magnetics supplies premium quality Neodymium magnets trusted by engineers, manufacturers, and hobbyists across Australia. With local stock and fast dispatch, you can rely on this 9mm x 1.3mm x 1mm N48H block magnet for performance, durability, and reliability in every application.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
