Neodymium Ring Magnet – OD24mm x ID15mm x H2mm | N35H | High Temperature ≤120°C
Product code: R-OD24H2ID15-N35H
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified

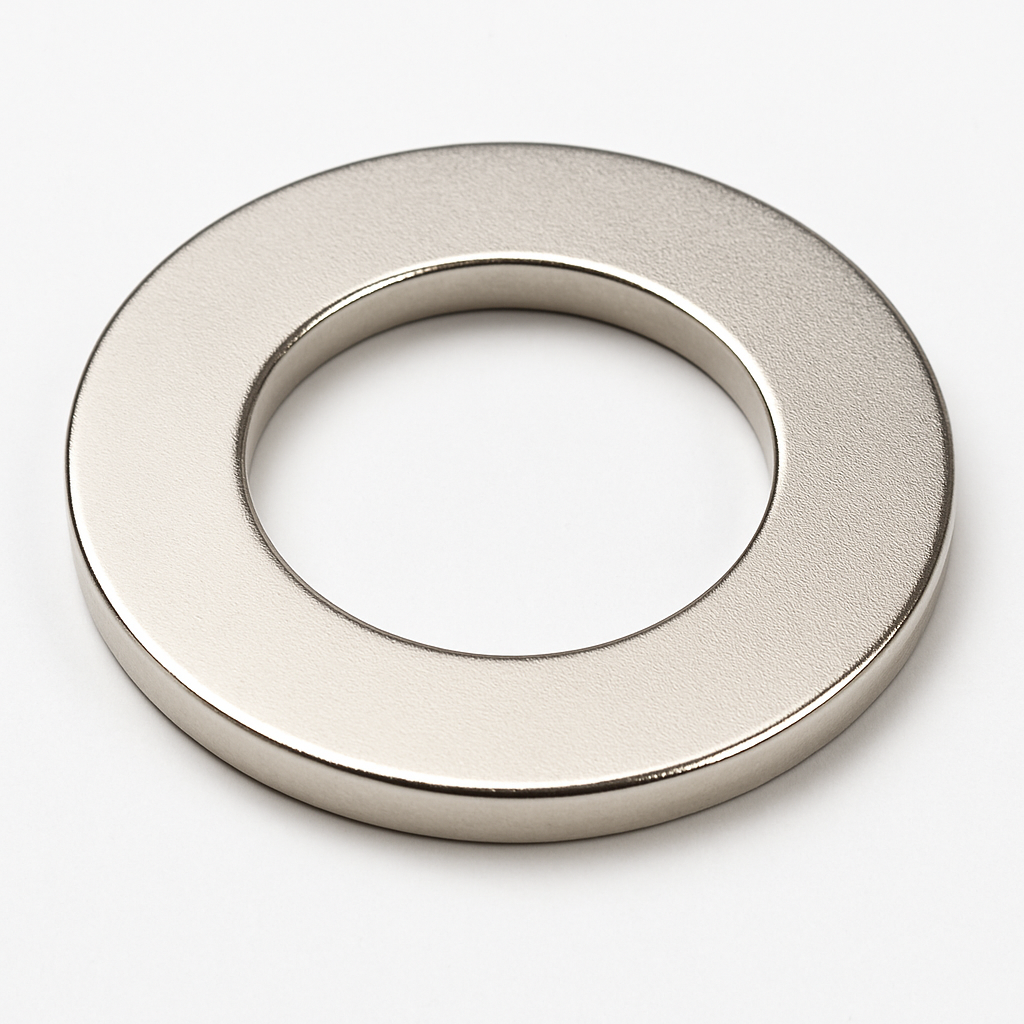

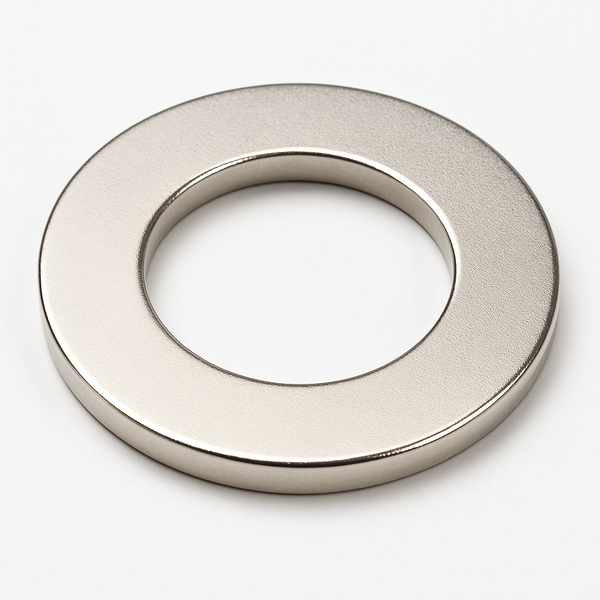

This Neodymium Ring Magnet has an outer diameter of 24mm, inner diameter of 15mm, and height of 2mm, providing a slim profile with impressive magnetic performance. Made from N35H grade Rare Earth material, this ring magnet combines high strength with temperature stability up to 120°C, making it suitable for both industrial and technical applications.
This magnet is identified by product code R-OD24H2ID15-N35H.
With a pull force of 2.2kg and a surface gauss of -564, this lightweight yet durable magnet is ideal for use in rotor assemblies, magnetic couplings, sensors, fixtures, and custom engineering projects where consistent performance is required even in elevated temperature conditions.
Key Features:
Dimensions: 24mm (OD) x 15mm (ID) x 2mm (H)
Grade: N35H Neodymium – strong magnetic performance with high-temp resistance
Pull Force: 2.2kg
Surface Field: -564 Gauss
Operating Temperature: ≤120°C
Slim profile, durable, and versatile.
Applications:
Magnetic Couplings & Rotors – efficient torque transfer and rotational systems.
Sensors & Detection Devices – consistent magnetic field for technical equipment.
Engineering & Manufacturing – suitable for assemblies requiring a slim yet powerful ring magnet.
Research & Prototyping – adaptable to specialist high-temperature projects.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
