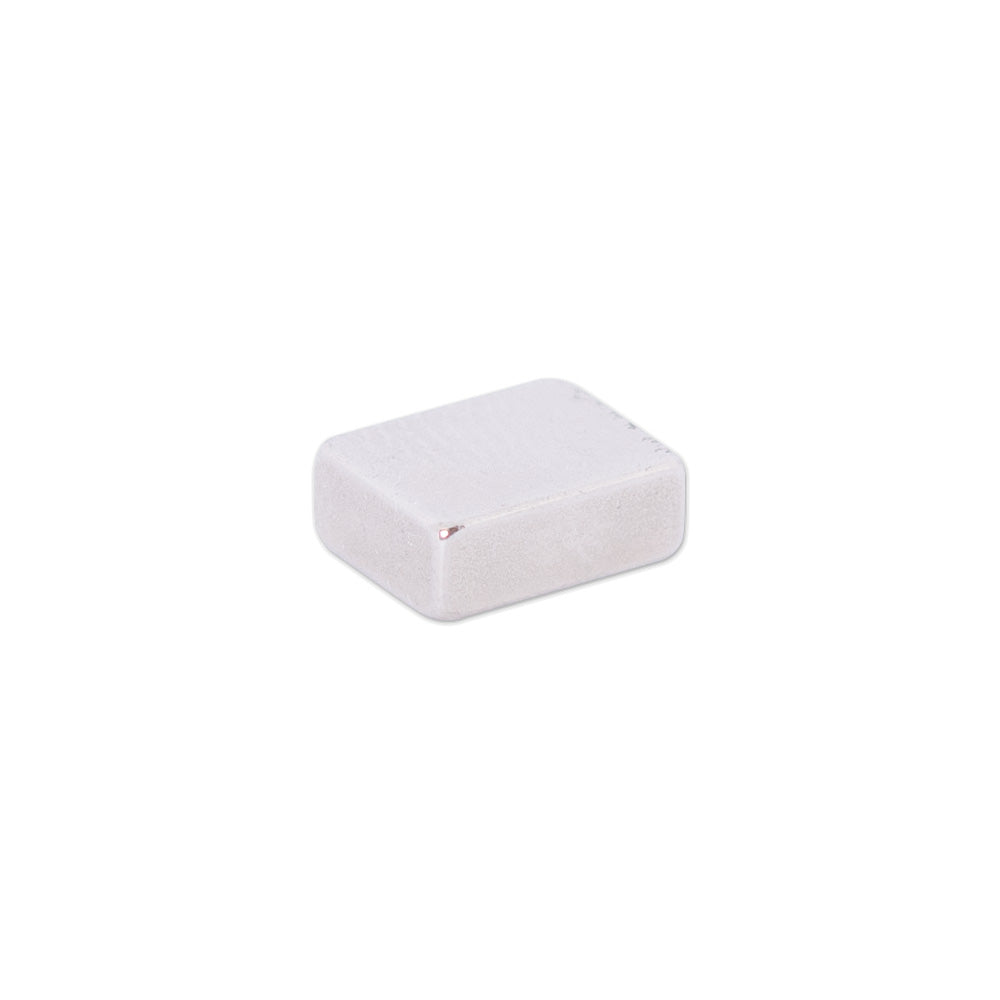

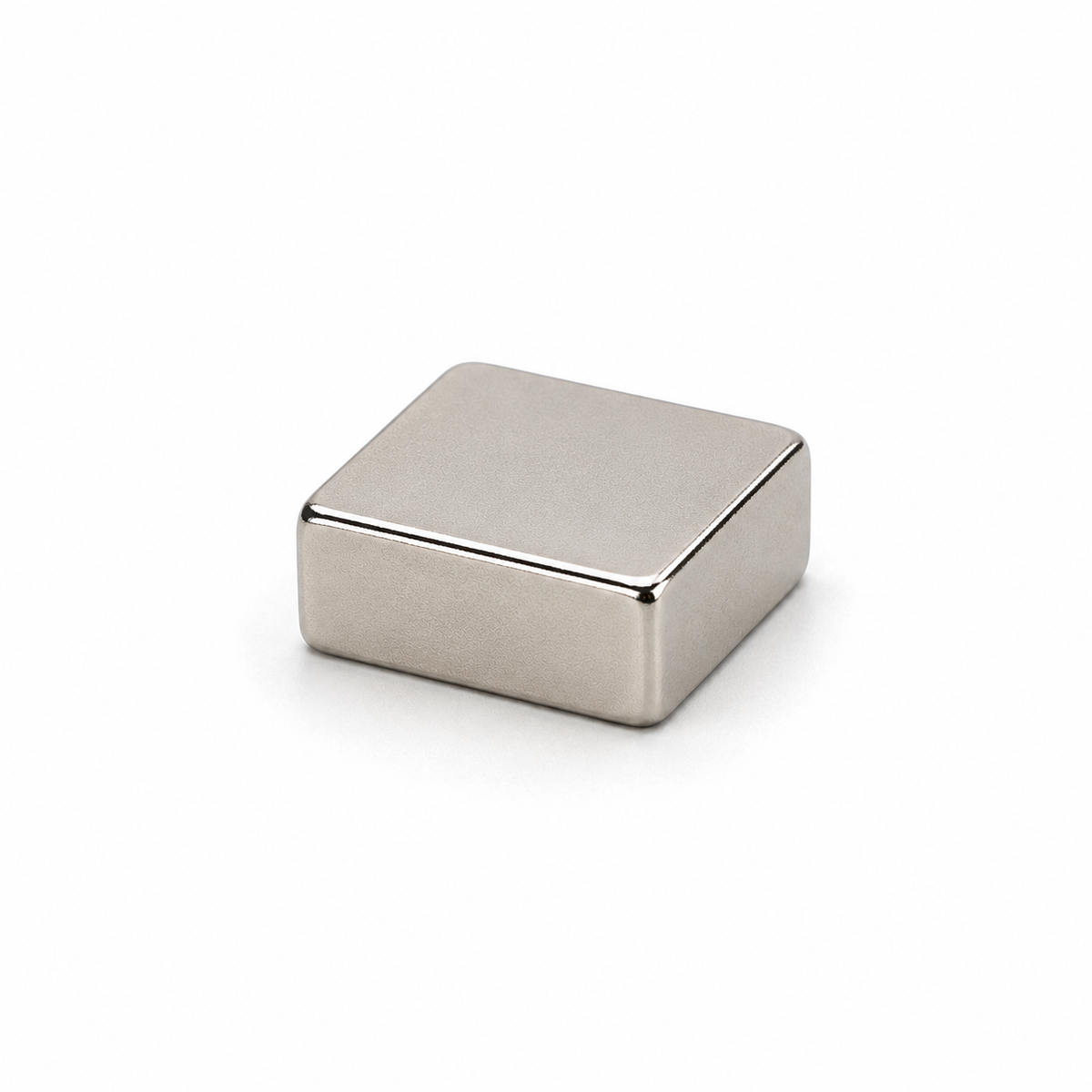

Neodymium Block Magnet - 6mm x 6mm x 3mm | N48

Product code: B-W6H3L6-N48

$1.44for 1 to 9 items
$1.04buy 10 to 99 itemsand save 27%
$0.84buy 100+ itemsand save 41%

Prices are GST Incl.

Volume pricing available on request

Neodymium Block Magnet - 6mm x 6mm x 3mm | N48

Product Code B-W6H3L6-N48
Pull Force* 1.388 kg
Weight 3 gm
Style Rare Earth Block
Gauss 6396
Grade N48
Coating Nickel
Direction of Magnetisation Axially (through height)
Dimensions Width:6mm, Height:3mm, Length:6mm
*Measured against up to 10mm mild steel.
Neodymium Block Magnet - 6mm x 6mm x 3mm | N48

Magnetic Product Description:

This neodymium magnetic block has a length of 6mm, width of 6mm and a height of 3mm. It has a magnetic flux reading of 6396 Gauss and a pull force of 1.38 kilos. It is identified by the AMF magnet part number B-W6H3L6-N48.






Uses for our rare earth block magnets:

This square Neodymium Block is magnetically strong for its size and has a slim 3mm height dimension that allows it to operate inside the cover of a product or to be concealed inside a device where the magnetic field can operate discreetly and without an obvious visual presence. This is one of the most appealing aspects of magnetic power. The invisible magnetic field creates a bond with ferrous metal, or another magnet, that is permanent, predictable and extremely reliable. More traditional mechanical or adhesive forms of attachment are invasive, unattractive and over extended periods of time, can become faulty and unreliable. In terms of long-term performance, magnetism offers considerable cost-savings. Small square magnets are often used to act as clamps, clasps, joins, closures and attachment points for creative craft projects and also in practical and innovative commercial designs.



Neodymium Block Magnet - 6mm x 6mm x 3mm | N48 (B-W6H3L6-N48)

Grade
N48 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.37-1.43 N/A
Remanence Br(kGs)
13.7-14.3 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=875 N/A
Intrinsic Coercivity iHc(Oe)
>=11 N/A
Max Energy Product(BH)max(KJ/m)
358-390 N/A
Max Energy Product(BH)max(MGOe)
45-49 N/A
Grade N48 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.37-1.43 N/A
Remanence Br(kGs) 13.7-14.3 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=875 N/A
Intrinsic Coercivity iHc(Oe) >=11 N/A
Max Energy Product(BH)max(KJ/m) 358-390 N/A
Max Energy Product(BH)max(MGOe) 45-49 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
