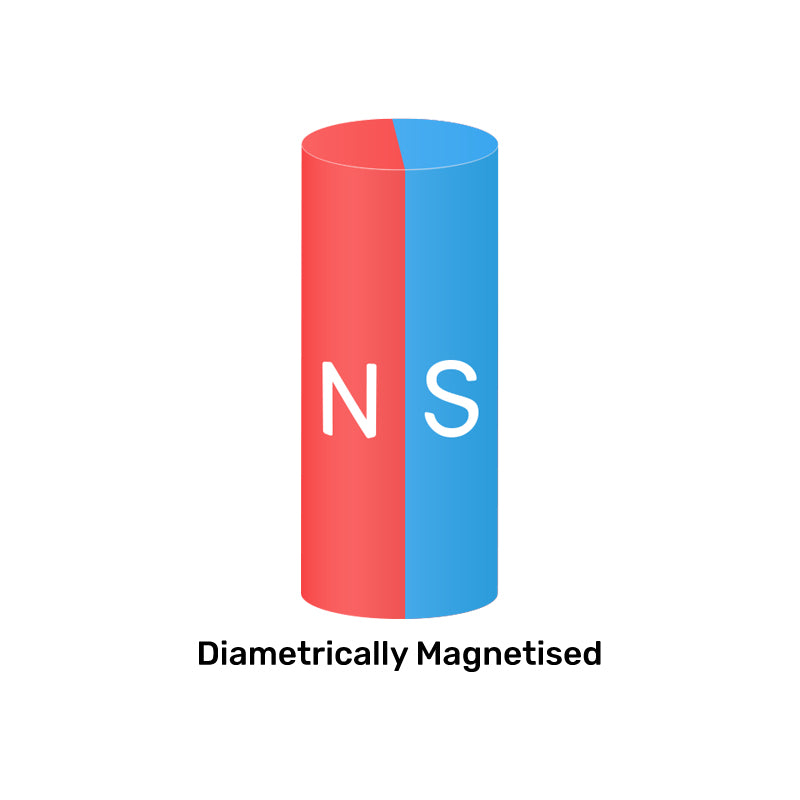

Neodymium Cylinder Magnet - 2.7mm x 5mm | N52 | Diametrically Magnetised | Parylene-C Coating

Product code: C-D2.7H5-N52C

$1.73for 1 to 9 items
$1.38buy 10 to 99 itemsand save 20%
$1.27buy 100+ itemsand save 26%
Total
$1.73

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Neodymium Cylinder Magnet - 2.7mm x 5mm | N52 | Diametrically Magnetised | Parylene-C Coating

Rated 5.0 out of 5
Based on 1 review
Product Code C-D2.7H5-N52C
Pull Force* 312g
Weight 2 gm
Style Neodymium Cylinder
Gauss 6994
Grade N52
Coating Parylene-C
Direction of Magnetisation Axially
Dimensions Height:5mm, Diameter:2.7mm
*Measured against up to 10mm mild steel.
Neodymium Cylinder Magnet - 2.7mm x 5mm | N52 | Diametrically Magnetised | Parylene-C Coating

Magnetic Product Description:

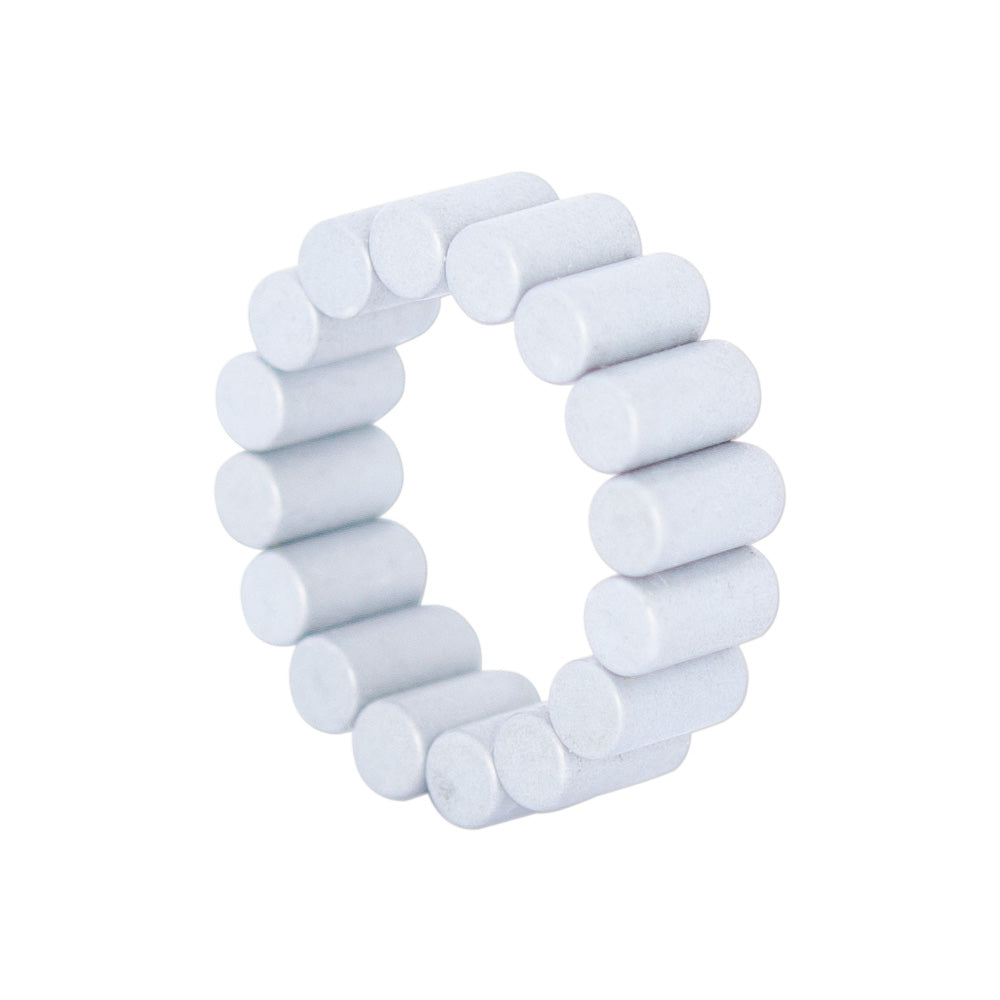

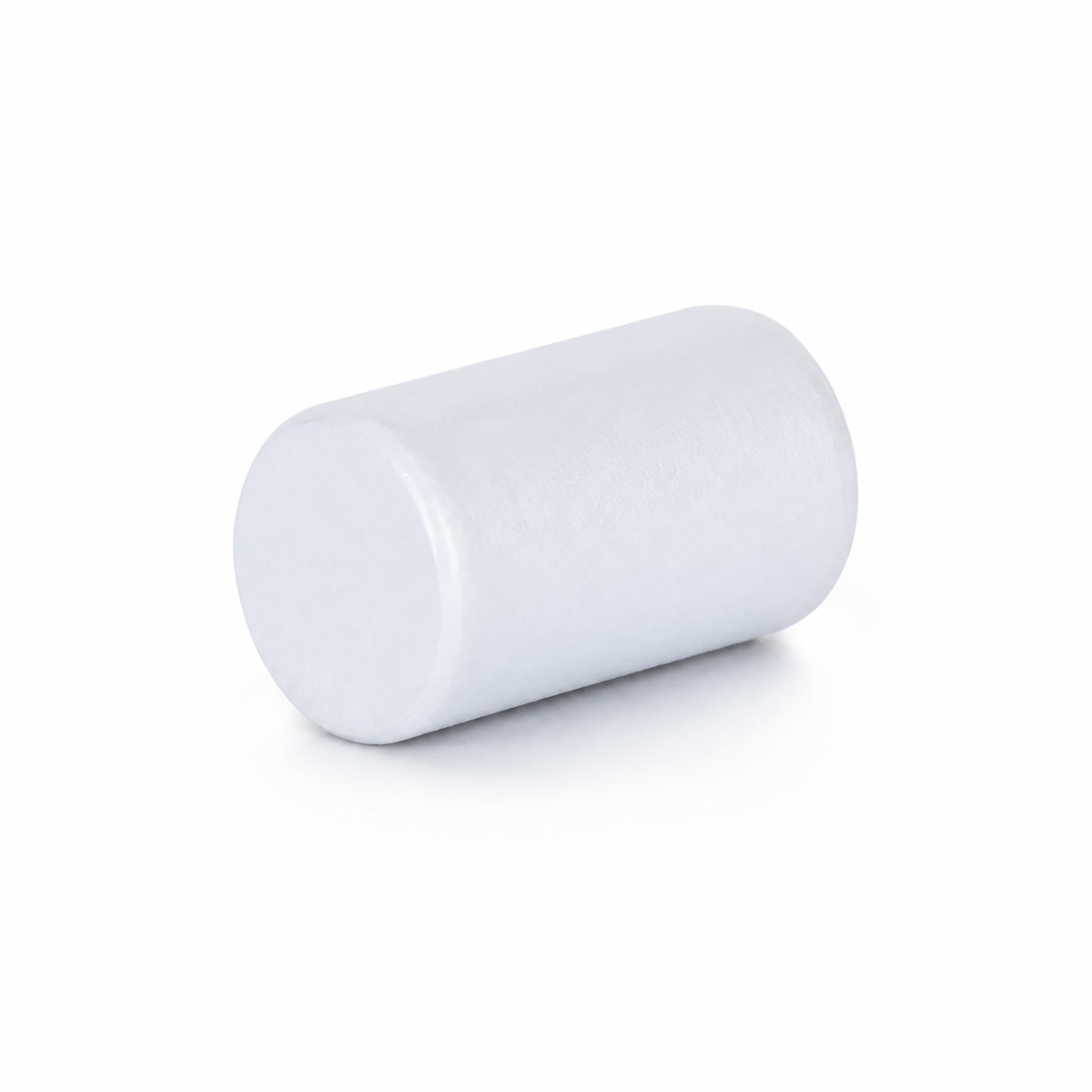

This popular Rare Earth cylinder magnet has a diameter of 2.7mm and a height of 5mm. It is an N52 grade Rare Earth magnet. It has a magnetic flux reading of 6994 Gauss and a pull force of 312 grams. It is identified by the AMF Magnetics part number C-D2.7H5-N52C. Price is per singular magnet.

Uses for our Rare Earth Cylinder Magnets with Parylene-C Coating:

Cylinder magnets are utilised in a huge array of magnetic tools and are ideal for products such as metal separation devices, generators, magnetic stirrers, metal detectors, tool and knife holders and stud finders. Also referred to as rod magnets, these mini magnets are also suited to a range of craft and home handy projects. Their small sizes makes them a discreet solution for holding, attached and securing lightweight items. Although petite they are still considered strong magnets and should be handled with care and kept out of the reach of children. This magnet is Parylene C coated which lends it a blue tinted chrome-like appearance and provides superior corrosion resistance compared to standard Nickel plating.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Mrs P.
I recommend this product
Rated 5 out of 5
Review posted

Great customer service

Excellent fast service. I use these magnets for jewellery clasps, they are perfect for the job.

Loading...
Was this helpful?

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
