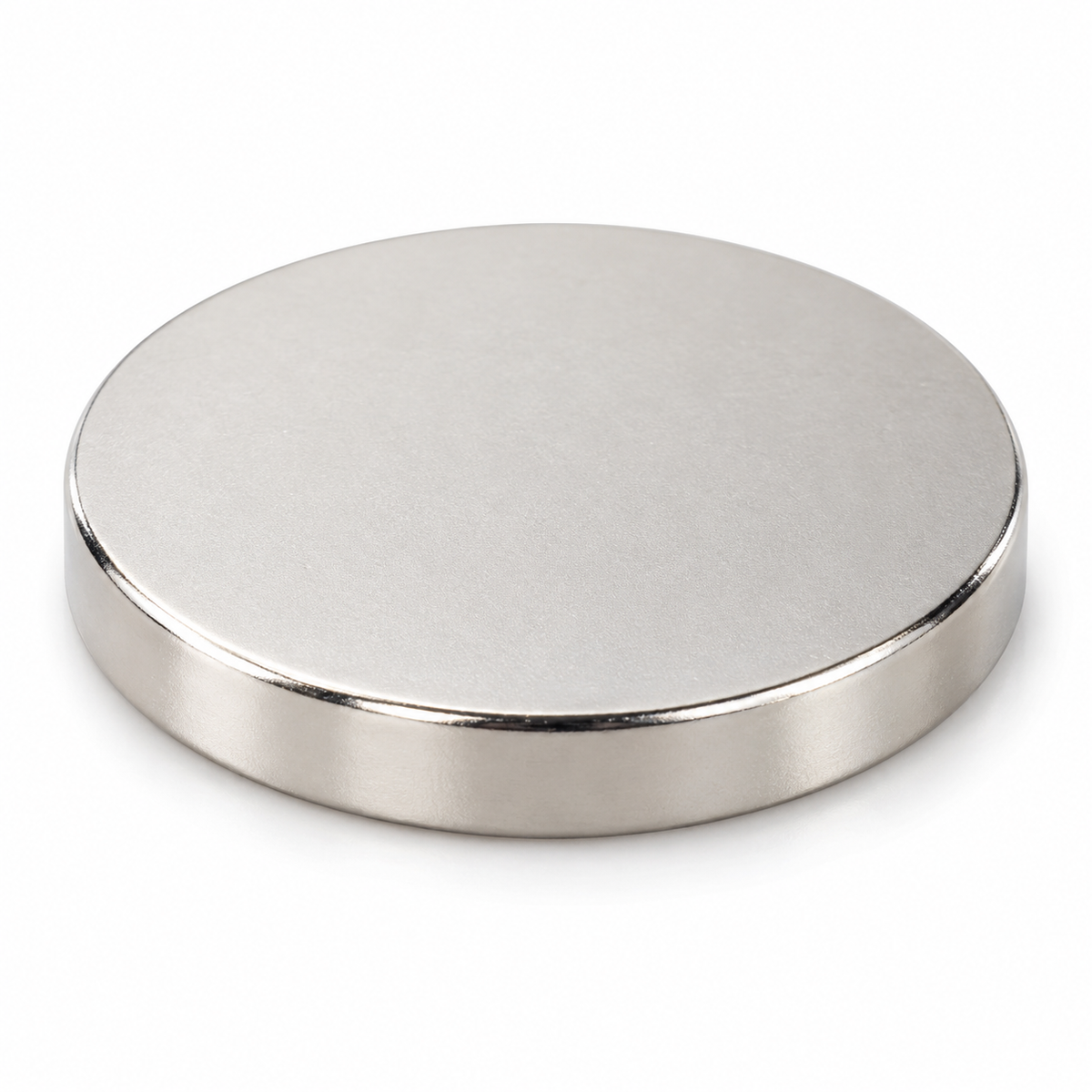

Neodymium Disc Magnet - 10mm x 1.5mm

Product code: 20055

$1.70for 1 to 9 items
$1.36buy 10 to 99 itemsand save 20%
$1.18buy 100+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 10mm x 1.5mm

Rated 5.0 out of 5
Based on 2 reviews
Product Code 20055
Pull Force* 860g
Weight 1 gm
Style Rare Earth Disc magnet
Gauss 1810
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:1.5mm, Diameter:10mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 10mm x 1.5mm

Magnetic Product Description:

This rare earth disc has a diameter of 10mm and a height of 1.5mm. It has a magnetic flux reading of 1810 Gauss and a pull force of 860 grams. It is identified by the AMF magnet part number 20055.


Uses for our rare earth disc magnets:

Metal separation, picking up nails & screws, water conditioning, building generators, magnetic stirrers, metal detectors, tool knife holders, holding, stud finders, magnetic therapy, magic tricks, brochure closures.

This Rare Earth Disc Magnet can be used in a huge range of applications due to their unusually thin profile. When doubled up or used in a series, these magnets are ideal for experimentation as the pull force can be increased or modified by stacking or using in combination. This utility makes these magnets every fabricator’s dream. It is never possible to know every variable of a complex construction project from the outset and these handy little magnets allow fabricators to modify the pull force throughout the prototyping phase.

This delicate little disc magnets are also particularly popular with cabinet makers working on small and intricate creations such as jewellery boxes, picture frames, clocks and cases. Their small diameter and shallow profile mean they can be easily concealed within thin wooden surfaces for an elegant finish. They provide a secure holding power which is especially useful for objects that will be transported or used as storage.

Neodymium Disc Magnet - 10mm x 1.5mm (20055)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
