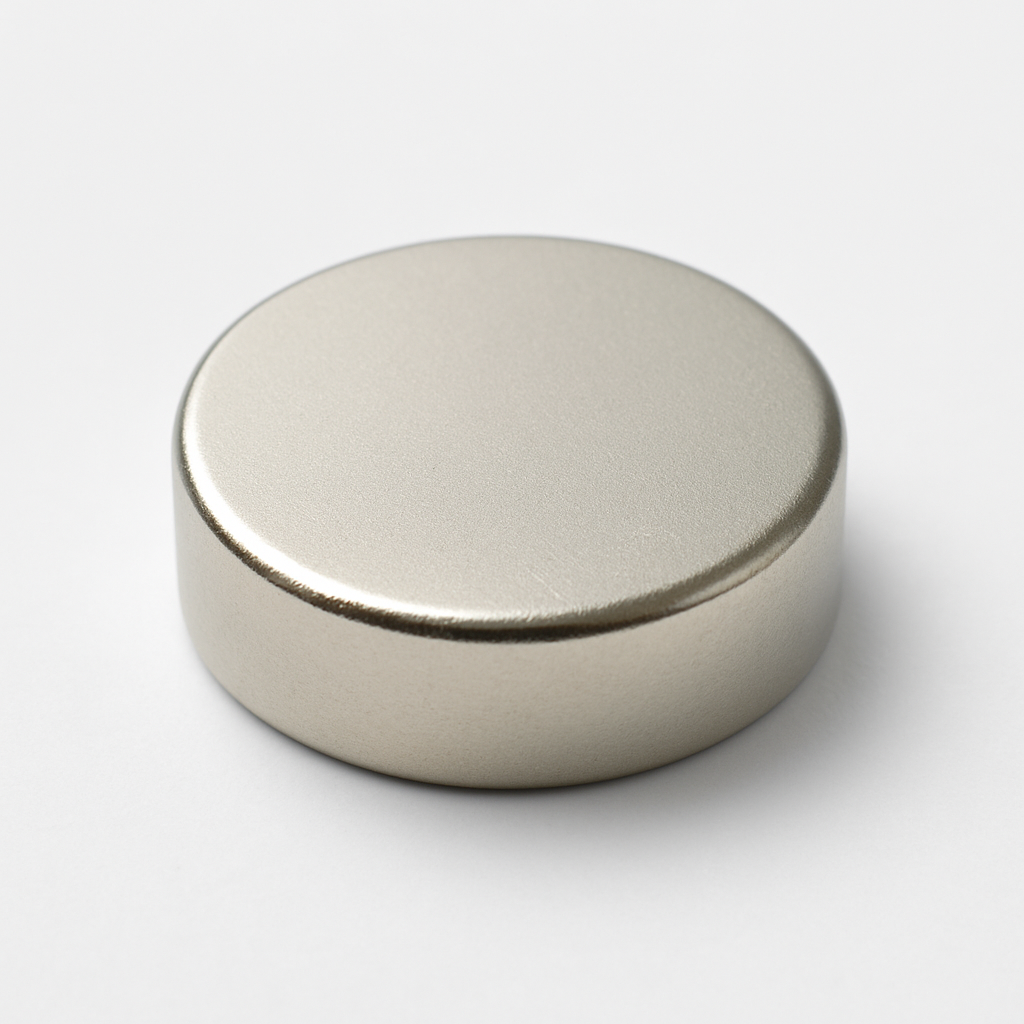

Neodymium Disc Magnet - 10mm x 3mm

Product code: 20050

$1.87for 1 to 9 items
$1.50buy 10 to 99 itemsand save 19%
$1.35buy 100+ itemsand save 27%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 10mm x 3mm

Rated 4.9 out of 5
17 Reviews
Product Code 20050
Pull Force* 1.96 kg
Weight 2 gm
Style Rare Earth Disc magnet
Gauss 3396
Grade N42
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:3mm, Diameter:10mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 10mm x 3mm

Magnetic Product Description:

This Rare Earth Disc is small in size with a diameter of 10mm and height of 3mm. Although small, this magnet is extremely strong for its size. It has a magnetic pull force of 1.96KG and a magnetic flux reading of 3396. Rare Earth magnets are extremely strong permanent magnets, for other shapes and sizes see out Rare Earth Neodymium page.


Uses for our rare earth disc magnets:

Our strong Magnetic Discs can be used in countless ways. A few of these applications include metal separation, water conditioning, building generators, metal detectors, magnetic therapy and brochure closures.

This slimline Neodymium disc is easily concealed making it ideal for textile projects and arts and crafts. There are many ingenious ways our customers use this product to hold and control fabrics. Ideal in the fashion industry as an alternative to buttons and hooks for heavy-weight fabrics such as winter coats.

They can also be sewn into the hem of curtains, shade cloths or windbreakers. Rare Earth Magnetic Discs are particularly popular with model makers as a means of not only constructing but displaying their creations. The magnetic attachment makes it easy to take models down and put them back in place without hooks and wires.

Neodymium Disc Magnet - 10mm x 3mm (20050)

Grade
N42 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.3-1.35 N/A
Remanence Br(kGs)
13-13.5 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
318-350 N/A
Max Energy Product(BH)max(MGOe)
40-44 N/A
Grade N42 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.3-1.35 N/A
Remanence Br(kGs) 13-13.5 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 318-350 N/A
Max Energy Product(BH)max(MGOe) 40-44 N/A
average rating 4.9 out of 5
Based on 17 reviews
  • 5 Stars
    16 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
17 Reviews
Reviewed by Jeff
I recommend this product
Rated 5 out of 5
Review posted

10mmx3mm magnets

I build R/C planes and use the magnets to attach any parts that need to be removable for service to inside equipment. This works very well.

Loading...
Was this helpful?
Reviewed by Tim M.
I recommend this product
Rated 5 out of 5
Review posted

Right on Point

The product was received in a timely manner and was exactly as expected. It works well with the application I purchased it for. Would consider buying again.

Loading...
Was this helpful?
Reviewed by Steve
I recommend this product
Rated 5 out of 5
Review posted

Strong Magnets!

I use these magnets to glue to acrylic rods for use as flight stands for Warhammer models. They're super strong, allow me to mix and match model bases and with a short rod helps to protect my models during transport.

Loading...
Was this helpful?
Reviewed by james
I recommend this product
Rated 5 out of 5
Review posted

excellent

I am using these magnets as catches on jewelry boxes and boxes for family history books where the tops overhang the sides. They are powerful enough to hold the tops shut without needing excessive force to open them.

Loading...
Was this helpful?
Reviewed by Anna F.
I recommend this product
Rated 4 out of 5
Review posted

Good

Although one chipped easily, that was covered in the written material supplied, otherwise the magnets have been great for the homeschool science experiments I was wanting to do with my son involving batteries and copper wire. We may have to order some larger ones now!!

Loading...
Was this helpful?
