Neodymium Disc Magnet - 50mm x 12.5mm

Product code: 20001

$61.47 each for 1 to 9 items
$51.92buy 10 to 99 itemsand save 15%
$42.49buy 100+ itemsand save 30%
Total
$61.47

Not enough in stock. Please choose a lower quantity.

Minimum order quantity is 1

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

Neodymium Disc Magnet - 50mm x 12.5mm

Rated 5.0 out of 5
Based on 1 review
Product Code 20001
Pull Force* 40.8 kg
Weight 182 gm
Style Rare Earth Disc magnet
Gauss 2817
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:12.5mm, Diameter:50mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 50mm x 12.5mm

Neodymium Rare Earth Disc Magnet Description:

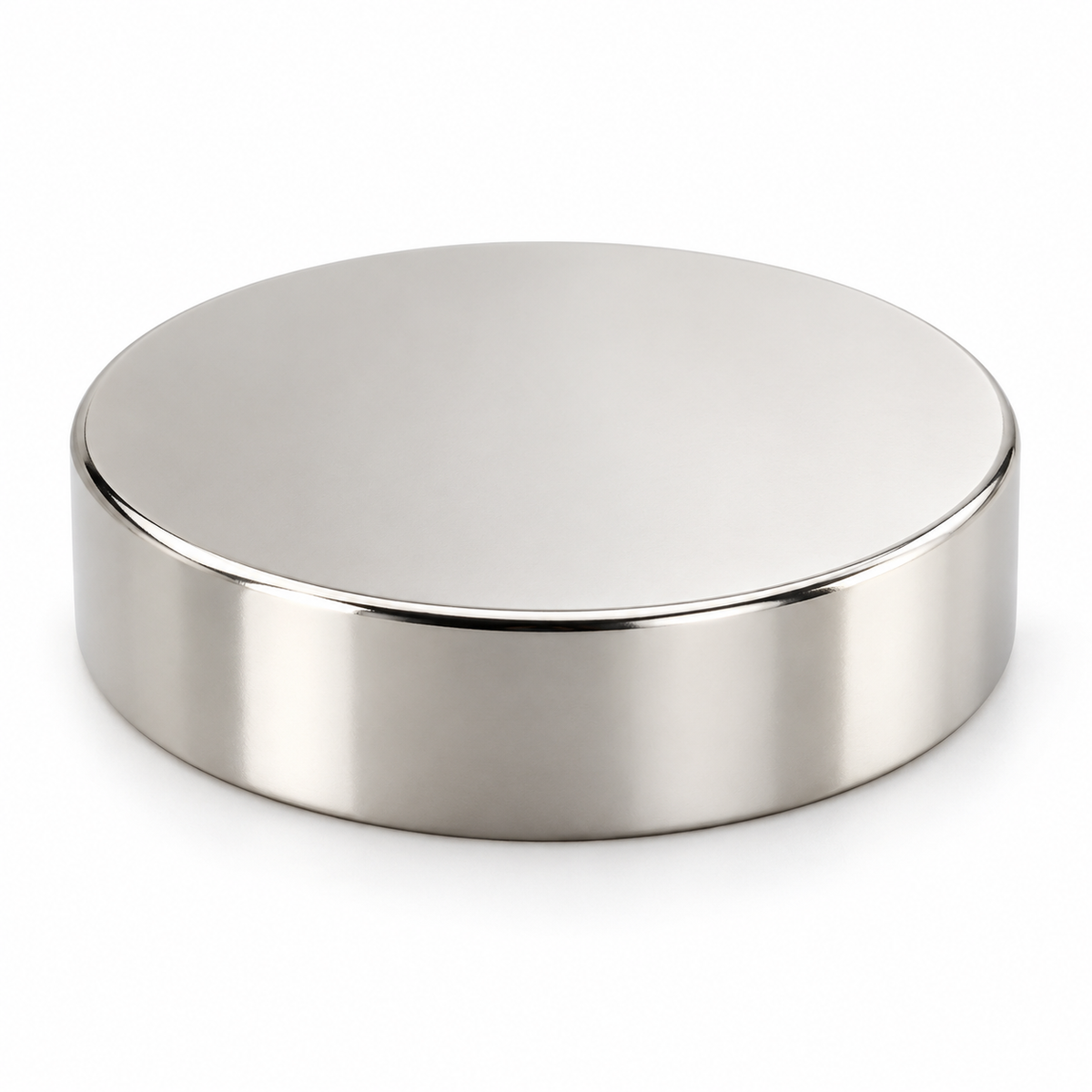

This Neodymium Disc Magnet has a diameter of 50mm and a height of 12.5mm. Despite it’s small size this product is extremely strong. It has a magnetic flux reading of 2817 Gauss and a pull force of 40.8 kilos. It is identified by the AMF magnet part number 20001. These strong magnetic discs have a nickel coating for corrosion resistance and long wear.


Uses for our Rare Earth Disc Magnets:

Our Neodymium Rare Earth Magnets are made from the highest quality magnetic material. AMF Magnetics stock a wide range of Rare Earth permanent magnets in many shapes and sizes. This super strong disc magnet is versatile and known for its reliability and durability.
With a diameter of 50mm, this Neodymium disc is one of the larger and more powerful disc magnets we have in stock. This product is often used in electronic devices such as security cameras, remote controls, kitchen appliances and more. This disc magnet has an extremely strong holding force in comparison to its size with a pull strength of 40.8 kilos.

average rating 5.0 out of 5
Based on 1 review
  • 5 Stars
    1 Review
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
1 Review
Reviewed by Patrick M.
I recommend this product
Rated 5 out of 5
Review posted

Very Happy Customer

Great product I've received and VERY quick delivery time.

Thank You!

Loading...
Was this helpful?

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
