Neodymium Disc Magnet - 8mm x 5mm

Product code: 20065

$1.67for 1 to 9 items
$1.38buy 10 to 99 itemsand save 17%
$1.27buy 100+ itemsand save 23%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 8mm x 5mm

Rated 4.9 out of 5
Based on 9 reviews
Product Code 20065
Pull Force* 1.87kg
Weight 2 gm
Style Rare Earth Disc magnet
Gauss 4919
Grade N38
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised
Dimensions Height:5mm, Diameter:8mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 8mm x 5mm

Rare Earth Magnetic Disc Product Description:

This rare-earth disc has a diameter of 8mm and a height of 5mm. This product is made from extremely strong Neodymium Magnets.Neodymium Rare Earth magnets are the most powerful magnets today, making this product powerful relative to its size. It has a magnetic flux reading of 4919 Gauss and a pull force of 1.87 kg.


Uses for this Neodymium Rare Earth Magnetic Disc:

This small magnet is popular in many specialised industries as they provide a strong magnetic force for their tiny size. This magnet is often used to support industrial machinery or to secure important workshop tools.
Neodymium disc magnets are often used in a wide variety of lubricating equipment. This tiny disc magnet can be used to assist the hold and release function in high performance grease guns and pumps. Rare Earth Disc Magnets also help to secure wall mounted oil dispensing units.
Timber craftspeople find this 8mm x 5mm disc magnet easy to hide in their works of timber and metal. Embedding metal sections in timber forms with these magnets allows the metal sections to be easily removed for cleaning or polishing. Gluing or screwing the metal sections into the timber forms is much more intrusive and restrictive than these little magnetic helpers!

Neodymium Disc Magnet - 8mm x 5mm (20065)

Grade
N38 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.23-1.3 N/A
Remanence Br(kGs)
12.3-13 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
286-318 N/A
Max Energy Product(BH)max(MGOe)
36-40 N/A
Grade N38 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.23-1.3 N/A
Remanence Br(kGs) 12.3-13 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 286-318 N/A
Max Energy Product(BH)max(MGOe) 36-40 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

average rating 4.9 out of 5
Based on 9 reviews
  • 5 Stars
    8 Reviews
  • 4 Stars
    1 Review
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
9 Reviews
Reviewed by Tezza
I recommend this product
Rated 5 out of 5
Review posted

More than what I needed

8 X 5 MM EXPERIMENT FOR HOLDING OVERHEAD CUPBOARDS CLOSED. More than I needed strength wise , nice and small totally did the job.

Loading...
Was this helpful?
Reviewed by Desmond
I recommend this product
Rated 5 out of 5
Review posted

Great site, will buy from you again

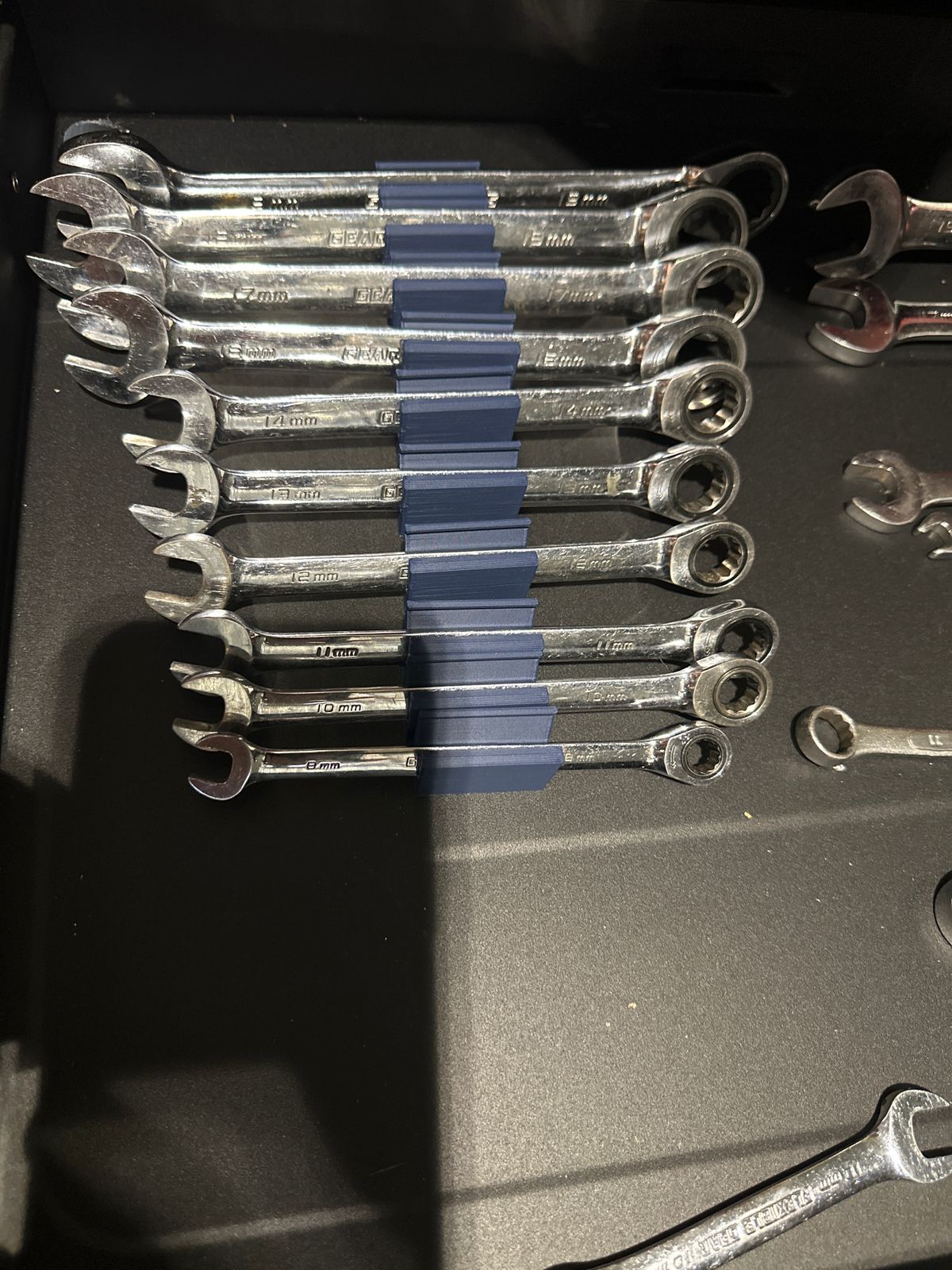

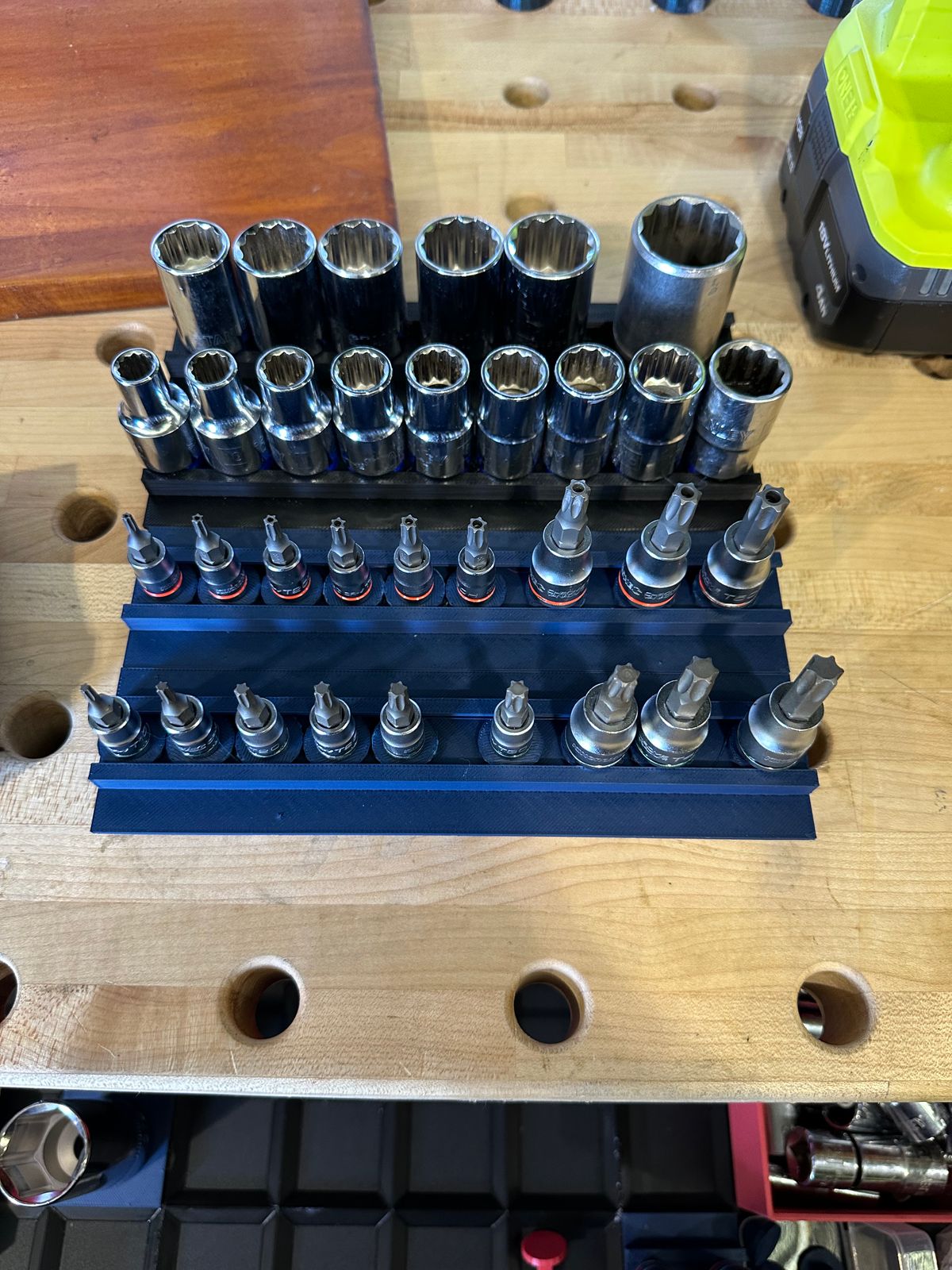

Magnets arrived in only a few days. The finish on the magnets is clean and bright, and the dimensions are spot on. I'm using them on various tools and fittings around the house.

Loading...
Was this helpful?
Reviewed by ronda
I recommend this product
Rated 5 out of 5
Review posted

good

I am using these magnets for artworks. The size is perfect for my requirements and most importantly the pull strength. Very happy. Thanks.

Loading...
Was this helpful?
Reviewed by Craig
I recommend this product
Rated 5 out of 5
Review posted

Snap fit

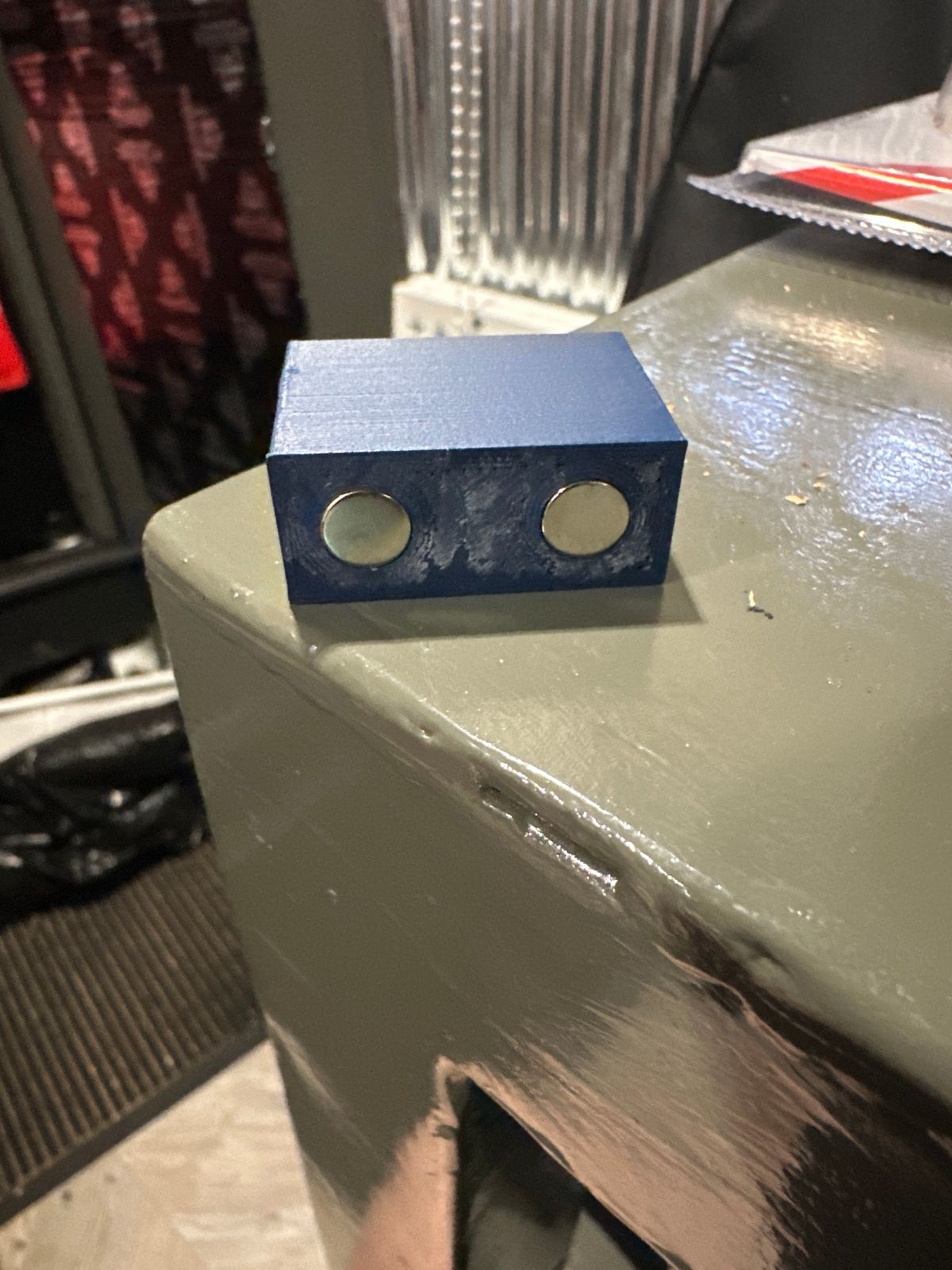

These were the perfect size to install into 3D printed parts. Made some auto gauge sun covers for the cars dashboard. They are easily removable and held in place without holes or screws

Loading...
Was this helpful?
Reviewed by Pete
I recommend this product
Rated 5 out of 5
Review posted

Perfect for the job

Perfect for the job

Loading...
Was this helpful?
