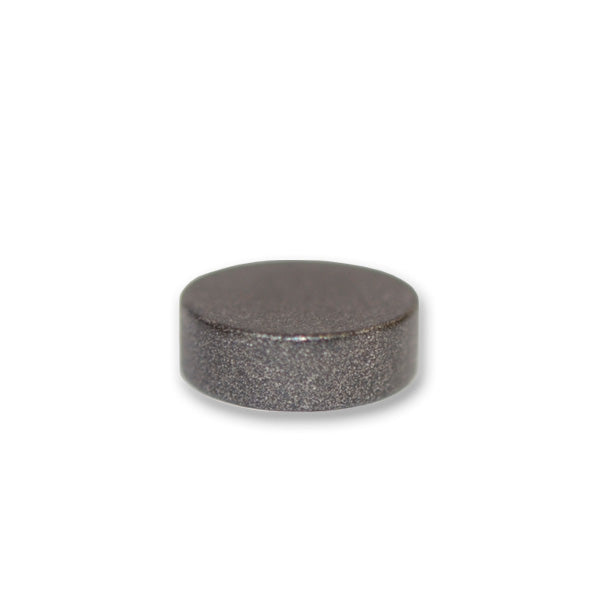

Neodymium Disc Magnet - 9.5mm x 3.2mm | N42 SH | NiCuNi Teflon Coated

Product code: 20060T

$4.51for 1 to 9 items
$3.92buy 10 to 99 itemsand save 13%
$3.01buy 100+ itemsand save 33%

Prices are GST Incl.

Volume pricing available on request

Neodymium Disc Magnet - 9.5mm x 3.2mm | N42 SH | NiCuNi Teflon Coated

Product Code 20060T
Pull Force* 2.1 kg
Weight 11 gm
Style Rare Earth Disc Magnet
Grade N42 SH
Coating NiCuNi Teflon
Direction of Magnetisation Axially magnetised
Dimensions Height:3.2mm, Diameter:9.5mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 9.5mm x 3.2mm | N42 SH | NiCuNi Teflon Coated

Magnetic Product Description:

This NiCuNi Teflon coated Rare Earth Disc has a diameter of 9.5mm and a height of 3.2mm. It has a pull force of 2.1 kilos and is identified by AMF magnet part number 20060T.


Uses for our NiCuNi Teflon coated Disc Magnets:

Industrial storage and steel fabrication businesses supply a range of products and services sometimes tailor made to suit their clients’ individual needs. Using these NiCuNi Teflon coated 9.5mm x 3.2mm magnets, companies build lockers, cabinets, material handling devices, shelving and mezzanine floors, pallet racks and loading dock equipment.

Building custom made or made to order machines and equipment presents its own very real difficulties, very different to plucking a mass produced item from existing stock. Designers and the tradespeople filling these orders need a variety of options when considering the durability, desirability and user friendliness of anything they design and construct. These magnets, along with many others create options other methods and materials simply cannot match for simplicity and efficiency. The predictability, reliability and cost effectiveness of magnetisation also helps keep the costs of design and construction under control. Controlling production costs is vital in any business, particularly when estimating in advance the price to the client of producing custom built equipment.

Neodymium Disc Magnet - 9.5mm x 3.2mm | N42 SH | NiCuNi Teflon Coated (20060T)

Grade
N42 SH N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.3-1.35 N/A
Remanence Br(kGs)
13-13.5 N/A
Coercivity bHc(kA/m)
>=836 N/A
Coercivity bHc(Oe)
>=10.5 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
318-350 N/A
Max Energy Product(BH)max(MGOe)
40-44 N/A
Grade N42 SH N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.3-1.35 N/A
Remanence Br(kGs) 13-13.5 N/A
Coercivity bHc(kA/m) >=836 N/A
Coercivity bHc(Oe) >=10.5 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 318-350 N/A
Max Energy Product(BH)max(MGOe) 40-44 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
