Neodymium Disc Magnet - 10mm x 2.5mm | N35H | High Temperature ≤120ºC | Diametrically Magnetised

Product code: 20052D

$2.60 each for 1 to 9 items
$2.21buy 10 to 99 itemsand save 15%
$1.82buy 100+ itemsand save 30%
Total
$2.60

Not enough in stock. Please choose a lower quantity.

Minimum order quantity is 1

Prices are GST Incl.

Volume pricing available on request

Australia's Leading Supplier

Shipping Worldwide*

30 Day Returns

Same Day Dispatch*

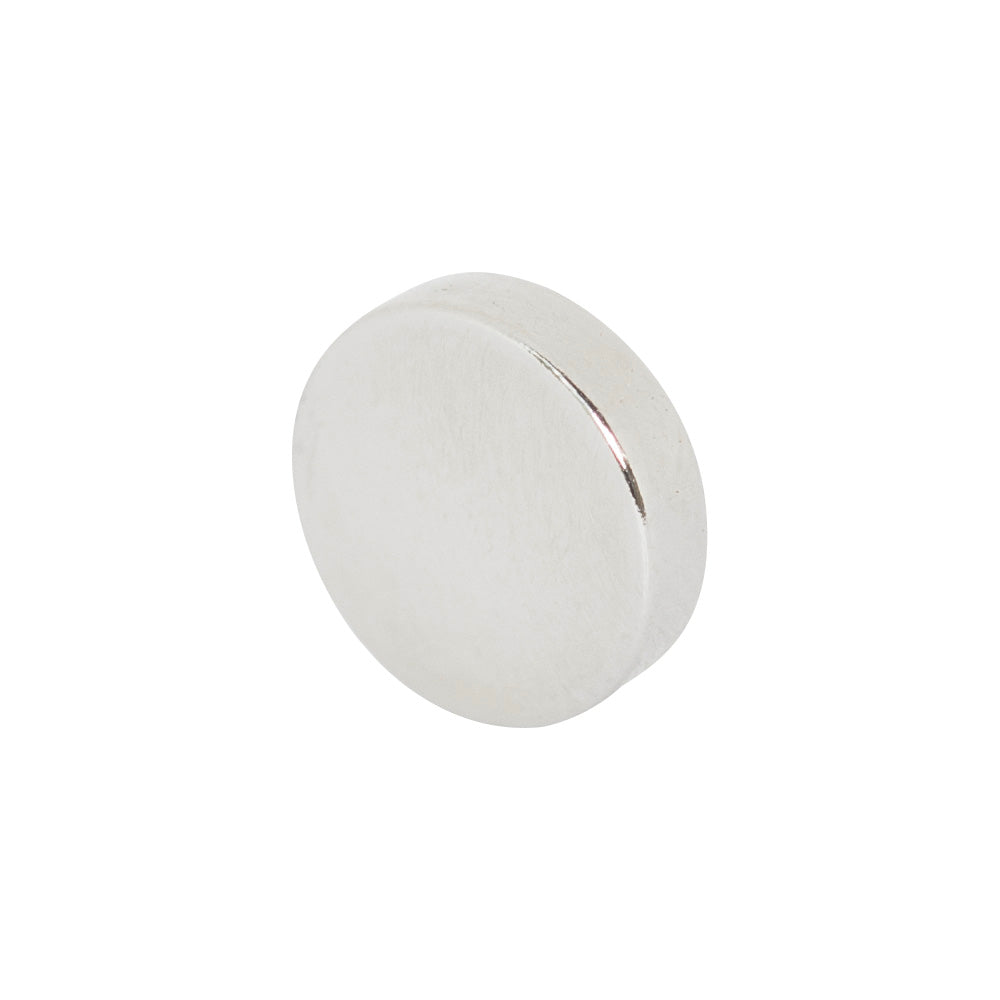

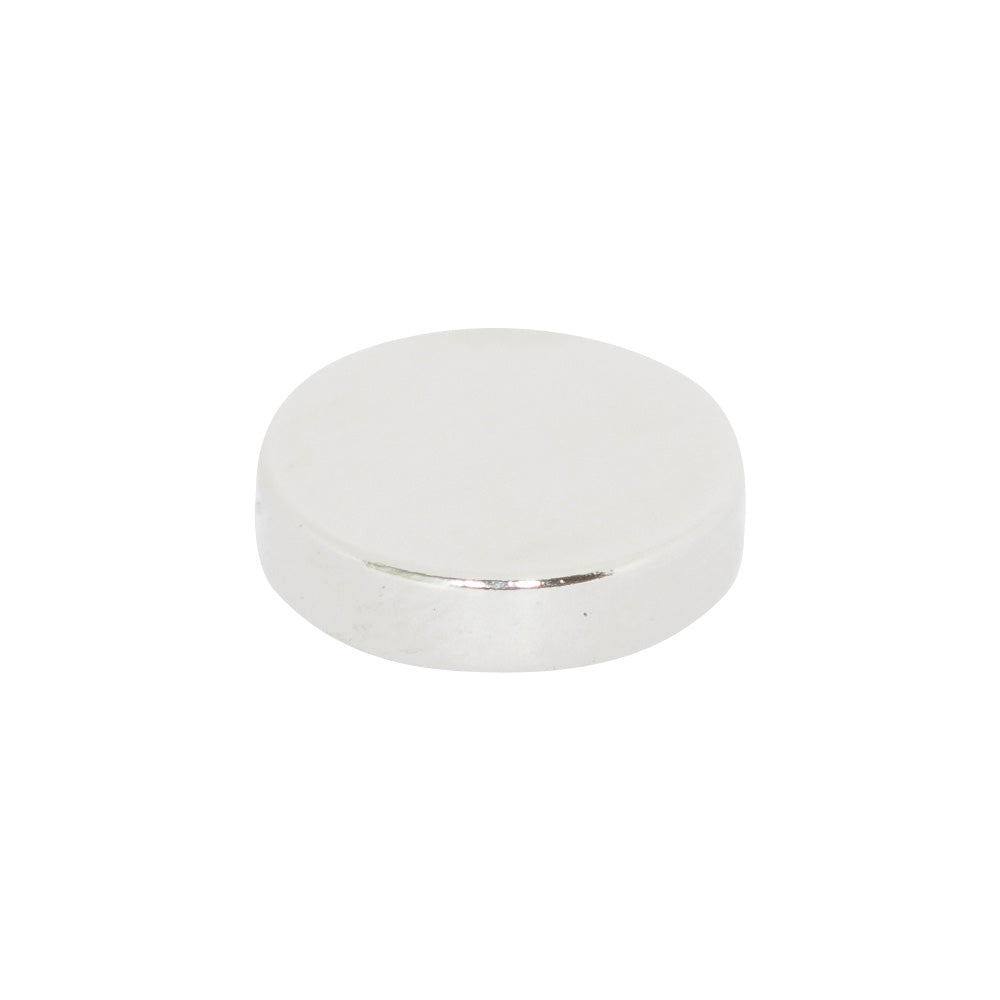

Neodymium Disc Magnet - 10mm x 2.5mm | N35H | High Temperature ≤120ºC | Diametrically Magnetised

Product Code 20052D
Pull Force* 1.22 kg
Weight 1 gm
Style Neodymium Disc
Gauss 2706
Grade N35H
Temperature Resistance ≤120ºC
Coating Nickel (Ni)

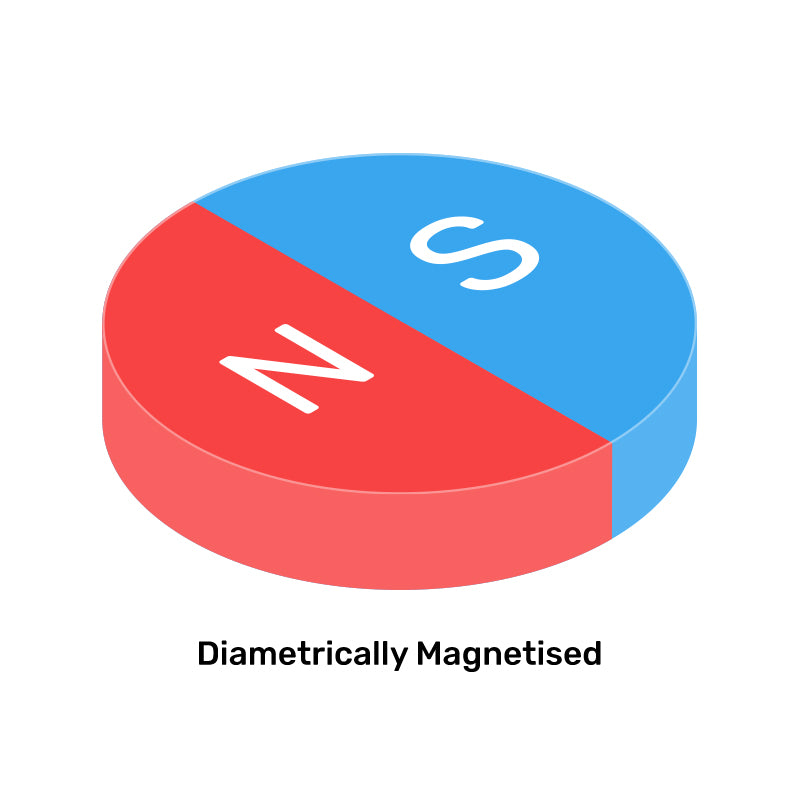

Direction of Magnetisation Diametric
Dimensions Height:2.5mm, Diameter:10mm
*Measured against up to 10mm mild steel.
Neodymium Disc Magnet - 10mm x 2.5mm | N35H | High Temperature ≤120ºC | Diametrically Magnetised

Magnetic Product Description:

This Rare Earth (Neodymium) disc magnet has a diameter of 10mm, and a height of 2.5mm. This magnet is N35H grade, which enables it to withstand high temperatures of up to ≤120ºC. It has a magnetic flux reading of 2,706 Gauss, a pull force of 1.22 kilograms. The direction of magnetism of this Rare Earth disc magnet is diametric. This product is identified by AMF Magnetics part number 20052D.

Uses for our Diametric Rare Earth Disc Magnets:

No FAQ available

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
