Neodymium Disc Magnet - 3mm x 1mm | N35
Product code: D-D3H1-N35
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
20 Day Returns Policy
ISO 9001 and HACCP Certified
Magnetic Product Description:

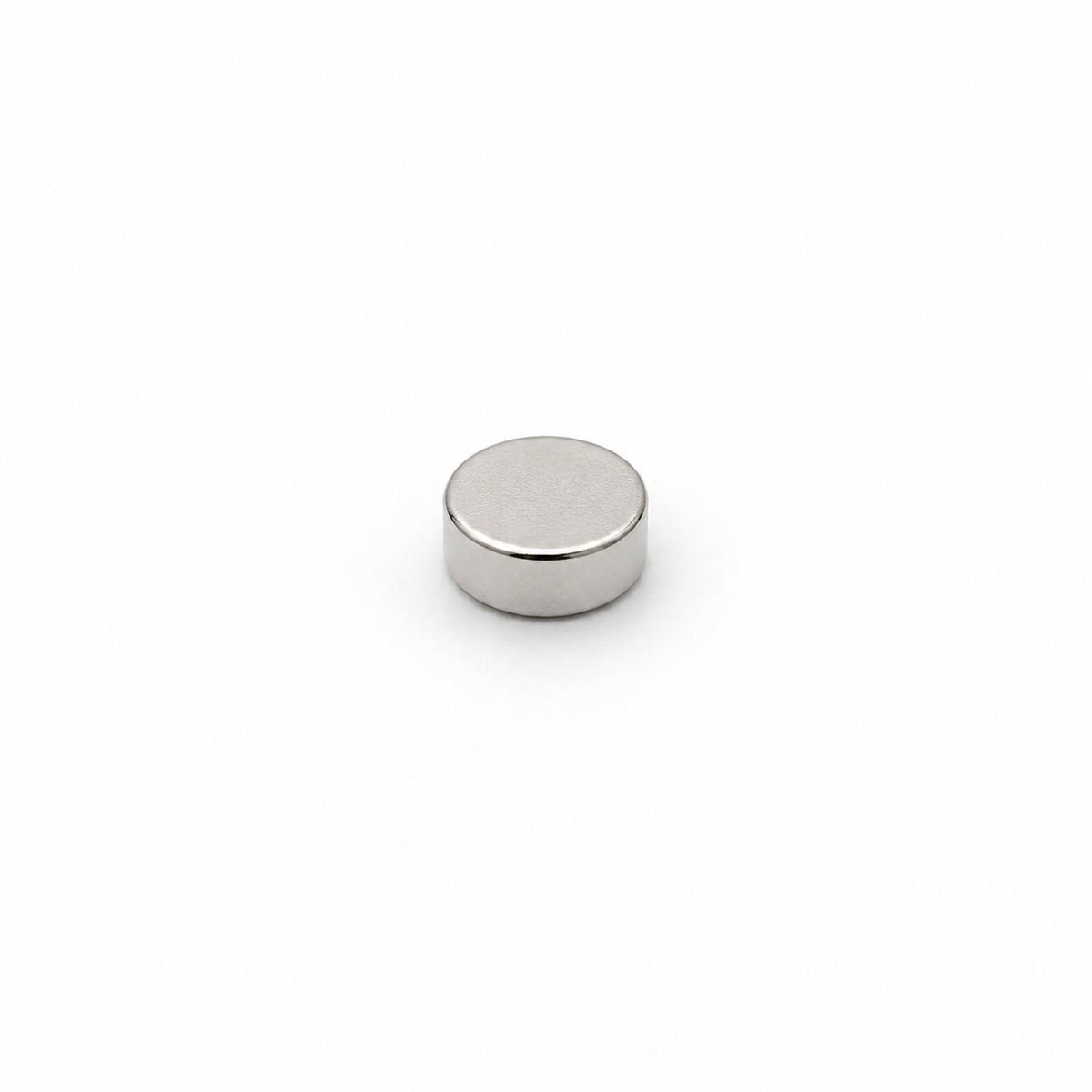

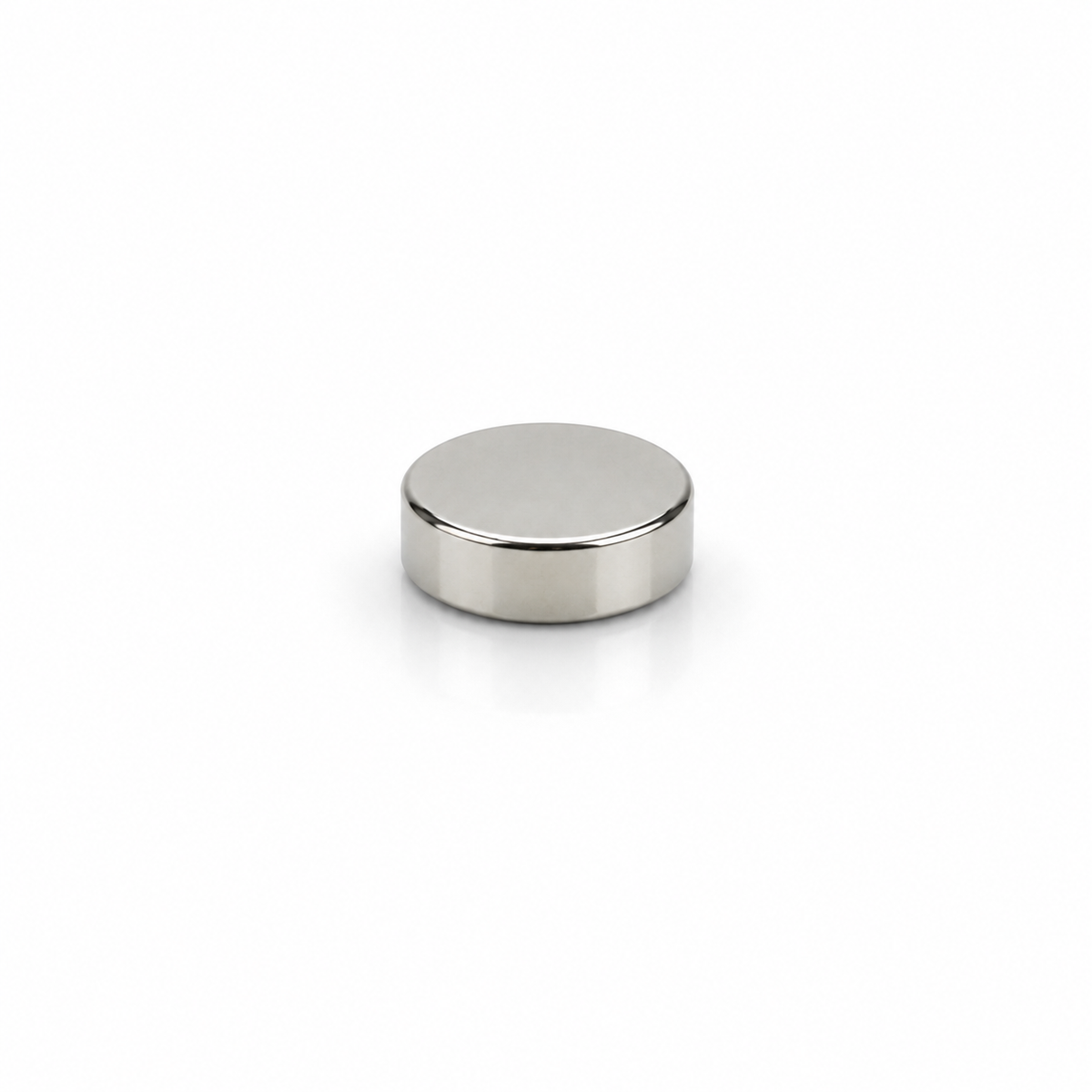

This rare earth disc has a diameter of 3mm and a height of 1mm. It has a magnetic flux reading of 3478 Gauss and a pull force of 90 grams. It is identified by the AMF magnet part number D-D3H1-N35.
Uses for our Rare Earth Disc Magnets:
These strong rare earth disc magnets are made from N35 grade Neodymium material. Small magnets such as these may be tiny in size however they are super strong relative to the less powerful magnetic materials such as Ferrite or Samarium cobalt magnets. Permanent magnets come in a range of sizes however these tiny discs are unlikely to be suitable for heavy duty applications. They can be used by themselves or in multiples, allowing you to adjust how much magnetic power you need on a very subtle level by adding or subtracting magnetic material to adjust the magnetic force to your needs. Although you may not consider the hold of 90 grams to be extremely strong it is considerable when their miniature proportions are taken into account. These small magnets are a craft makers dream. They strong magnets that can easily hidden from view in delicate artworks. Neodymium disc magnets are key components in all sorts or modern products and can be found in anything from electric motors to communication equipment. The Neodymium magnetic material is nickel coated to provide good resistance to the corrosive effects of humid environments and the chrome finish can be quite useful for aesthetic appeal.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
