Neodymium Disc Magnet - 4mm x 2.4mm | Gold Coating I N50
Product code: D-D4H2.4-N50AU
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Neodymium Disc Magnet - 4mm x 2.4mm | Gold Coating I N50
Magnetic Product Description:

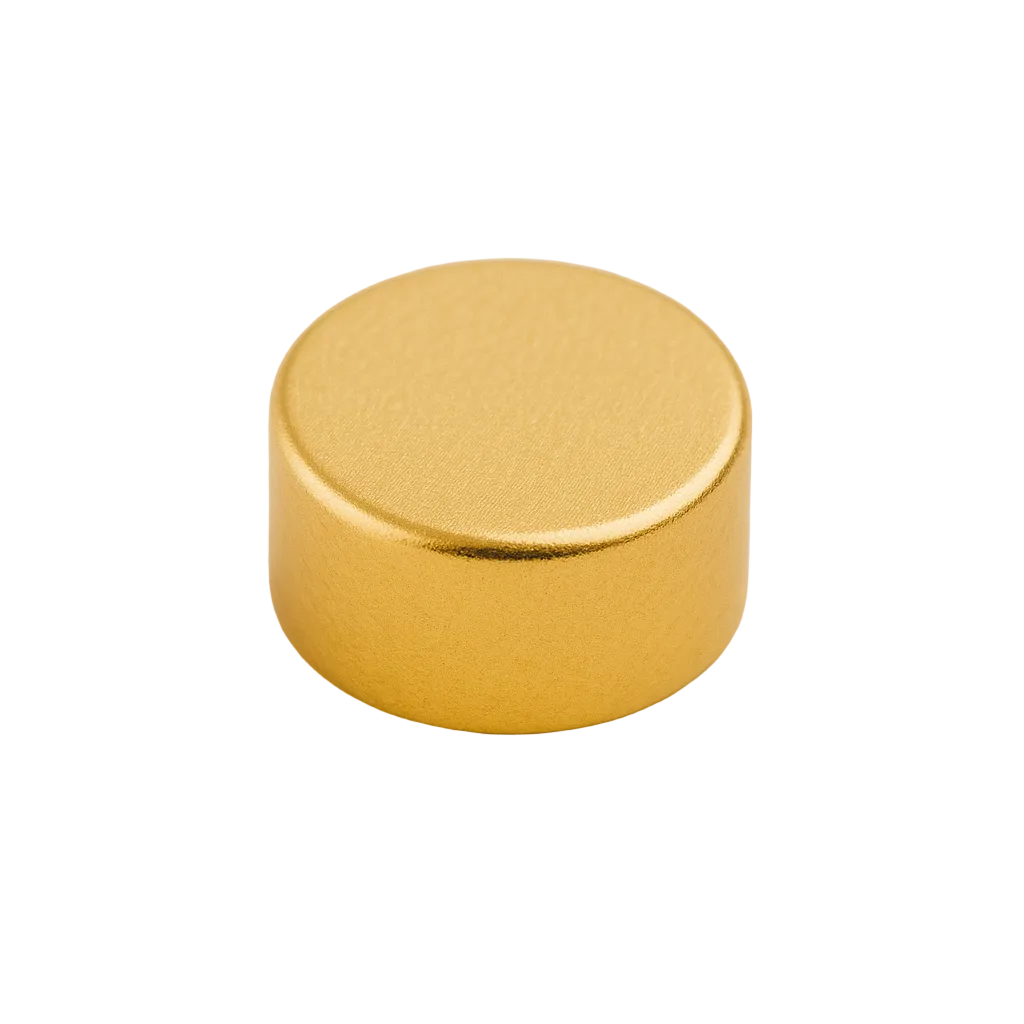

This gold coated rare earth disc has a diameter of 4mm and a height of 2.4mm. It has a magnetic flux reading of 5569 Gauss and a pull force of 489 grams. Its AMF magnet part number is D-D4H2.4-N50AU.
Uses for our rare earth disc magnets:
This delicate but strong Gold Coated Neodymium Disc is one of our smallest magnets and appeals to those wanting a more refined appearance. Museums, galleries and exhibitors often choose these gold plated magnets as they add a more sophisticated element to a display. Craftspeople and hobbyists find this disc useful as a clasp and model fixing purposes. There are many functional benefits provided by the gold plating due to its unique properties including corrosion-resistance and thermal and electrical conduction. These properties make them suitable for many specialised applications such as componentry in electric devices that form part of security equipment including warning systems and monitoring devices.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
