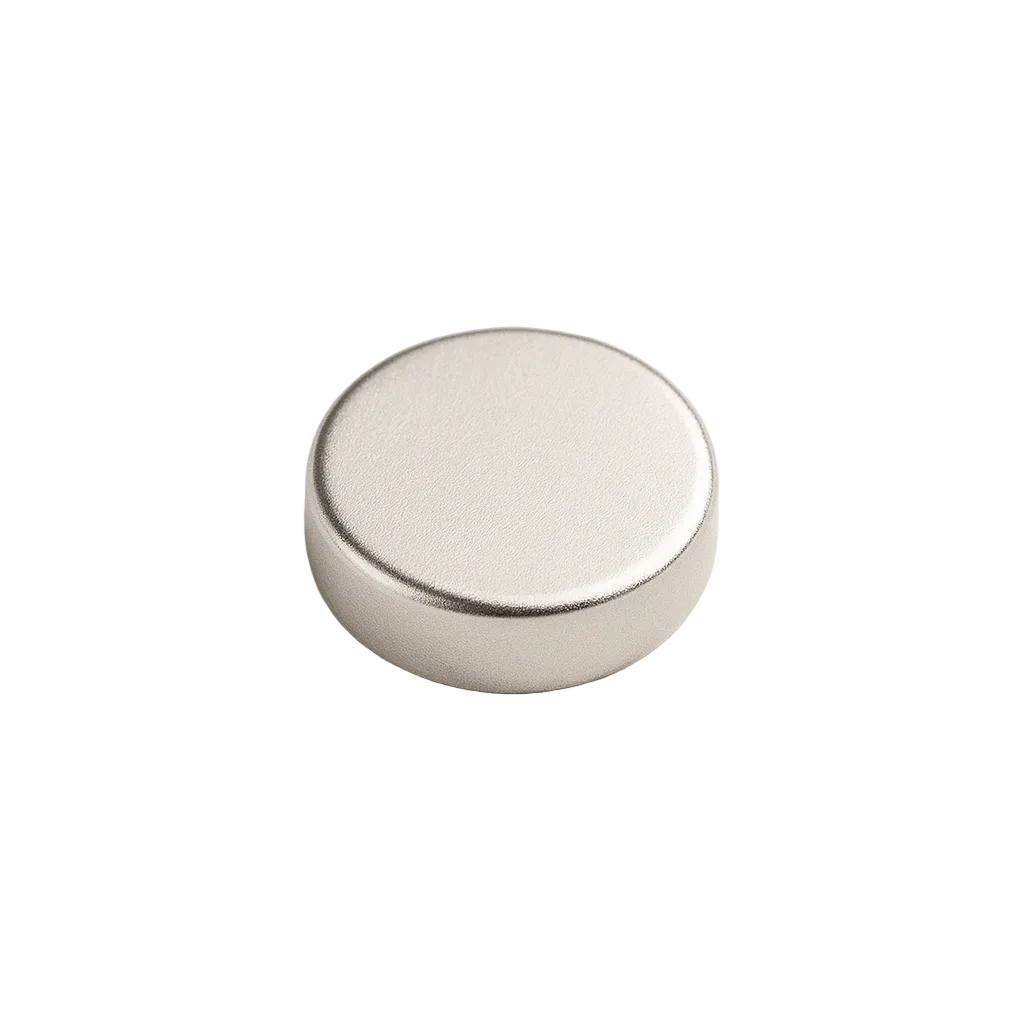

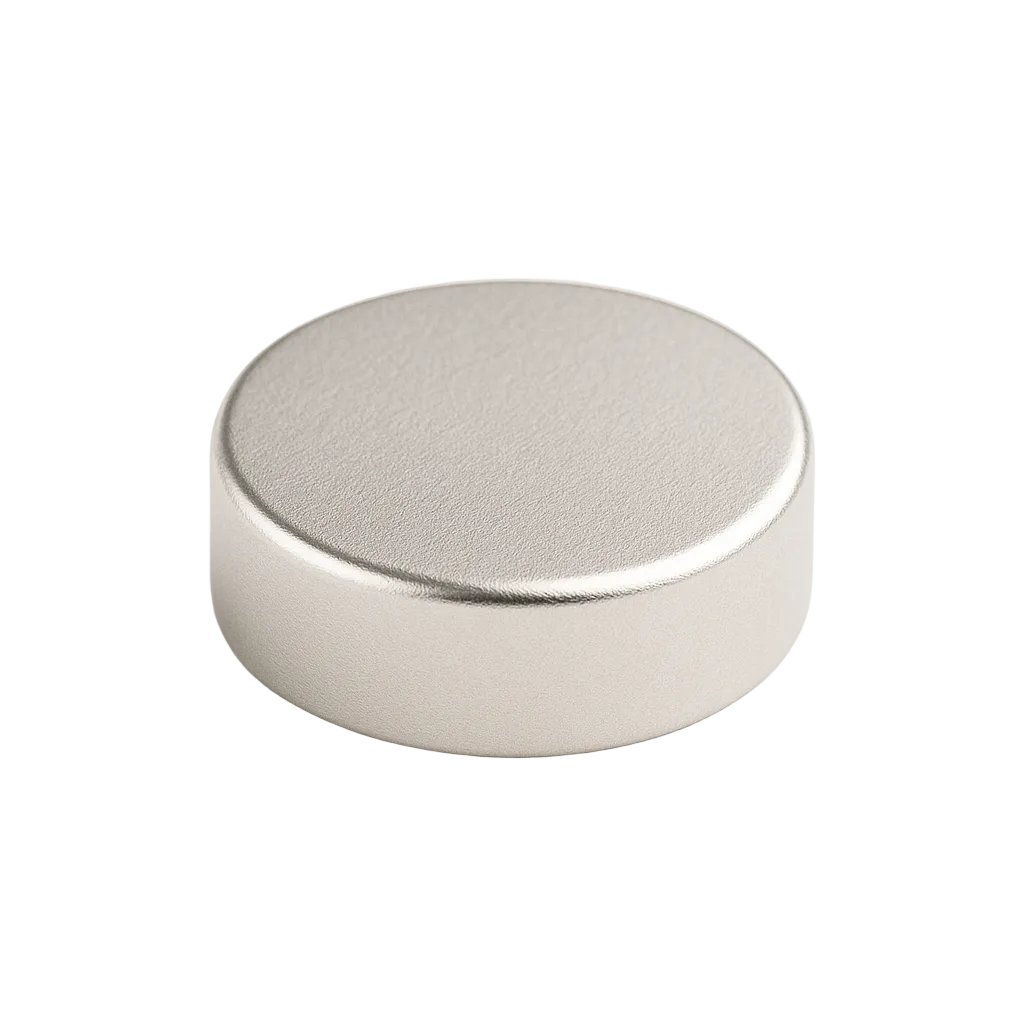

Neodymium Disc Magnet - 9.5mm x 3.2mm | N42SH | High Temperature ≤150ºC
Product code: 20060A
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Magnetic Product Description:
This Rare Earth disc magnet has a diameter of 9.5mm and a height of 3.2mm. It has a magnetic flux reading of 3688 Gauss and a pull force of 2 kilograms. Its N42UH grade enables this magnet to be exposed to environments less than or equal to 150ºC. This magnet is identified by the AMF Magnetics part number 20060A.
Uses for our Rare Earth Disc Magnets:
Magnets of this caliber resist the demagnetising effect that is caused by exposure to heat and are chosen for applications where operating environments exceed 100°C. Processing plants that use heat treatments for manufacturing or sterilising their products require sensitive and reliable magnetic devices for controlling, measuring and monitoring that need to remain reliable and operational under these conditions.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
Magnetic Product Description:
This Rare Earth disc magnet has a diameter of 9.5mm and a height of 3.2mm. It has a magnetic flux reading of 3688 Gauss and a pull force of 2 kilograms. Its N42UH grade enables this magnet to be exposed to environments less than or equal to 150ºC. This magnet is identified by the AMF Magnetics part number 20060A.
Uses for our Rare Earth Disc Magnets:
Magnets of this caliber resist the demagnetising effect that is caused by exposure to heat and are chosen for applications where operating environments exceed 100°C. Processing plants that use heat treatments for manufacturing or sterilising their products require sensitive and reliable magnetic devices for controlling, measuring and monitoring that need to remain reliable and operational under these conditions.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
