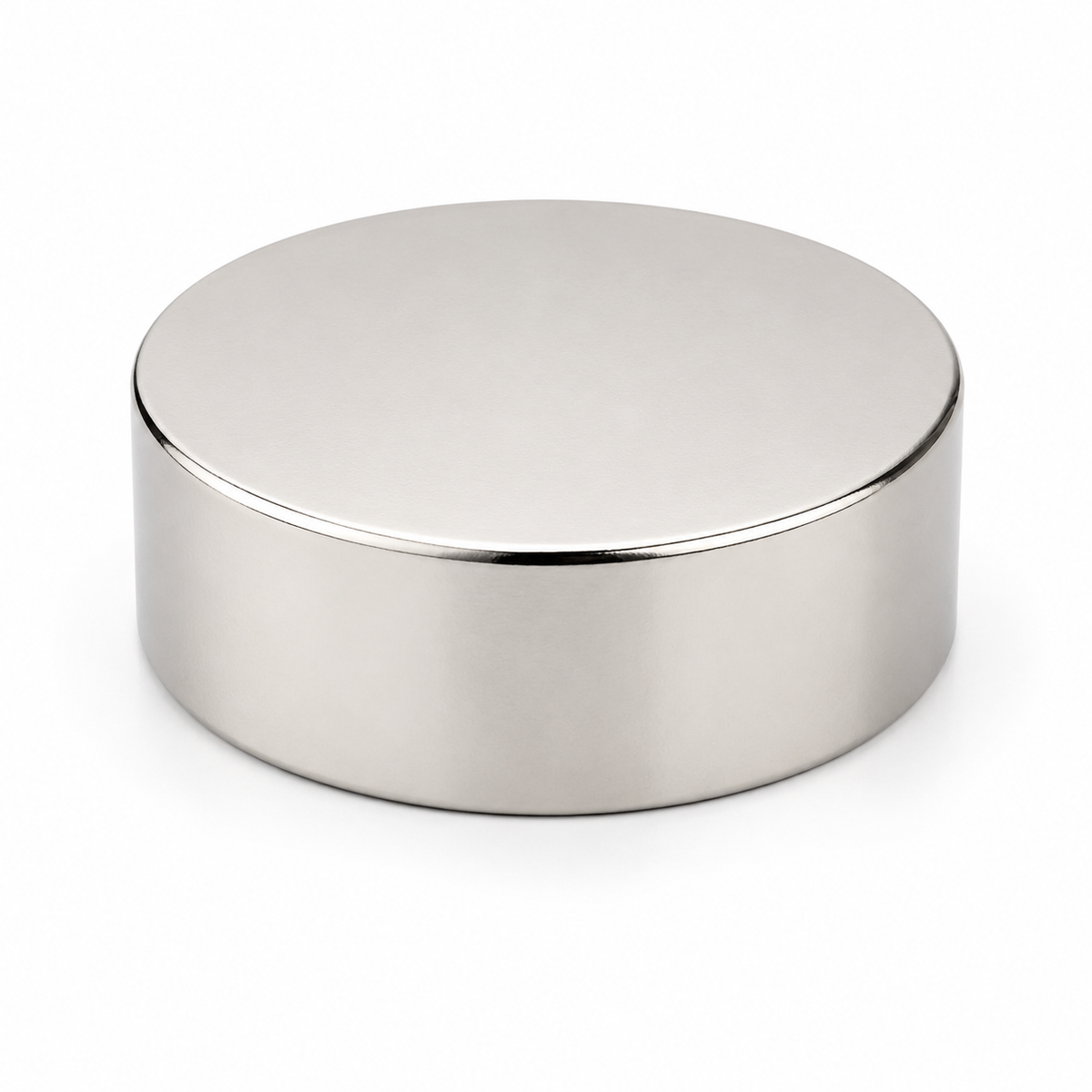

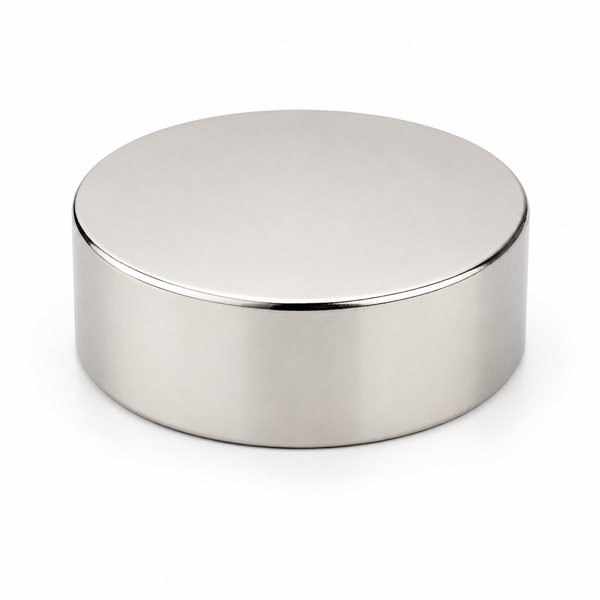

Neodymium Disc Magnet – D60mm x 25mm | N48
Product code: D-D60H25-N48
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
This Neodymium Disc Magnet (60mm diameter x 25mm height) is a heavy-duty rare earth magnet built for industrial performance. Manufactured in Grade N48, it delivers high magnetic strength combined with stability at temperatures up to 80°C, making it ideal for use in demanding environments. With a surface gauss rating of 4545 and a remarkable pull force of 141.33 kilograms, this large disc magnet is trusted for applications requiring maximum strength and reliability.
This magnet is identified by product code D-D60H25-N48
Key Features:
Dimensions: 60mm (Diameter) x 25mm (Height)
Grade: N48y
Maximum Operating Temperature: 80°C
Pull Force: 141.33kg – outstanding holding capacity
Surface Gauss: 4545
Coating: Triple-layer Nickel-Copper-Nickel (NiCuNi) for durability and corrosion protection
Applications:
Due to its large size and extreme strength, this neodymium disc magnet is widely used in industrial, commercial, and engineering applications, including:
Heavy-duty magnetic clamping and holding systems.
Industrial machinery and mechanical assemblies.
Magnetic separation, lifting, and recovery equipment.
Motors, turbines, and high-temperature machinery.
Prototyping and research requiring maximum strength magnets.
The combination of power, durability, and high-temperature resistance makes this disc magnet a versatile solution for demanding projects. Its strong NiCuNi coating ensures long-lasting protection against wear and corrosion, while its high pull force makes it suitable for professional engineering, manufacturing, and scientific applications.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
