Neodymium NeoFlex® Magnetic Strip - 12.5mm x 2mm x 1m | Self-Adhesive 3M VHB 4910

Product code: 59075VHB

$35.95for 1 to 9 items
$31.95buy 10 to 99 itemsand save 11%
$29.95buy 100+ itemsand save 16%

Prices are GST Incl.

Volume pricing available on request

Neodymium NeoFlex® Magnetic Strip - 12.5mm x 2mm x 1m | Self-Adhesive 3M VHB 4910

Product Code 59075VHB
Pull Force* 650 g/cm²
Weight 250 gm
Style Rare Earth Strip Magnet
Tolerance Thickness:2mm, Width:12.5mm, Length:1metre
*Measured against up to 10mm mild steel.

Magnetic Product Description:

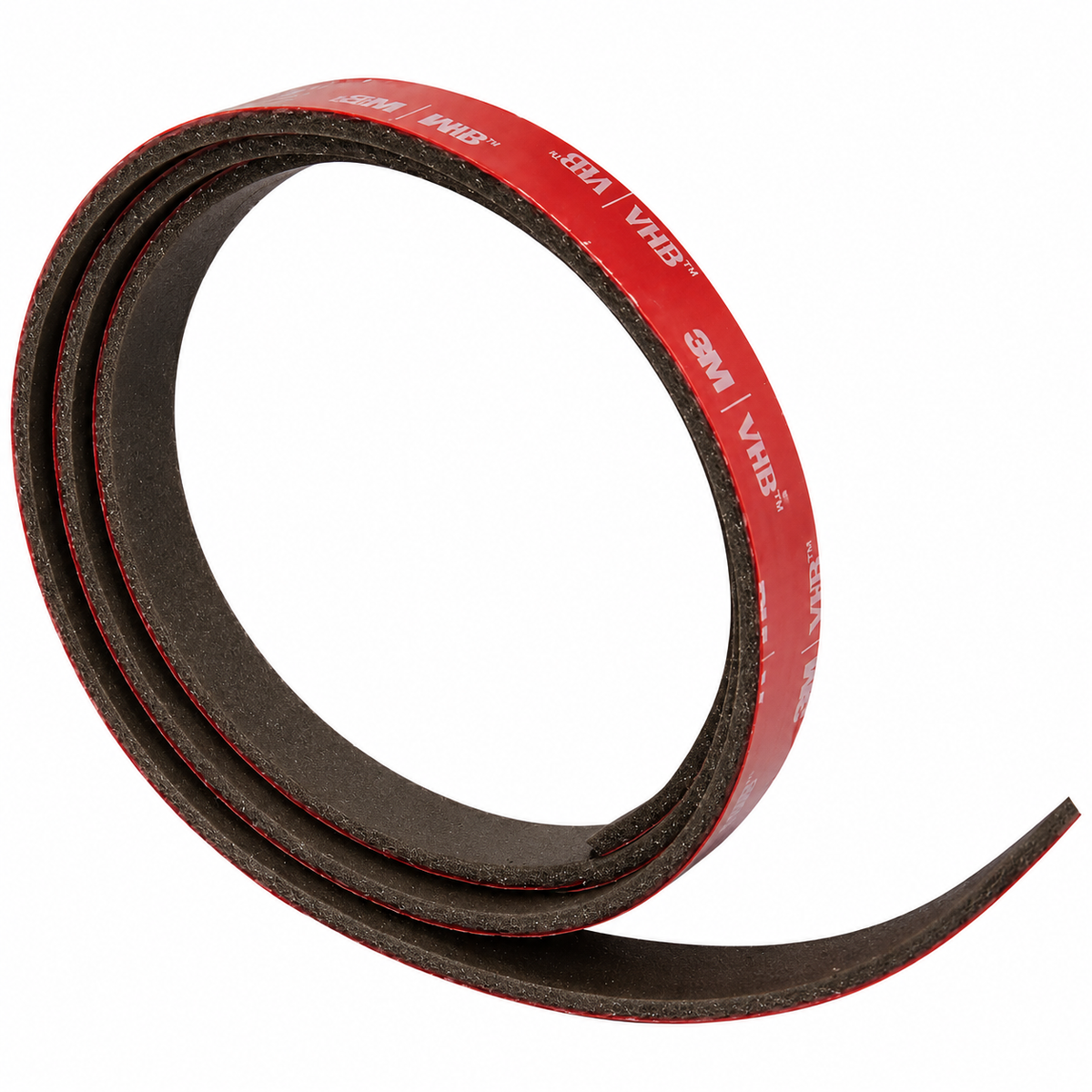

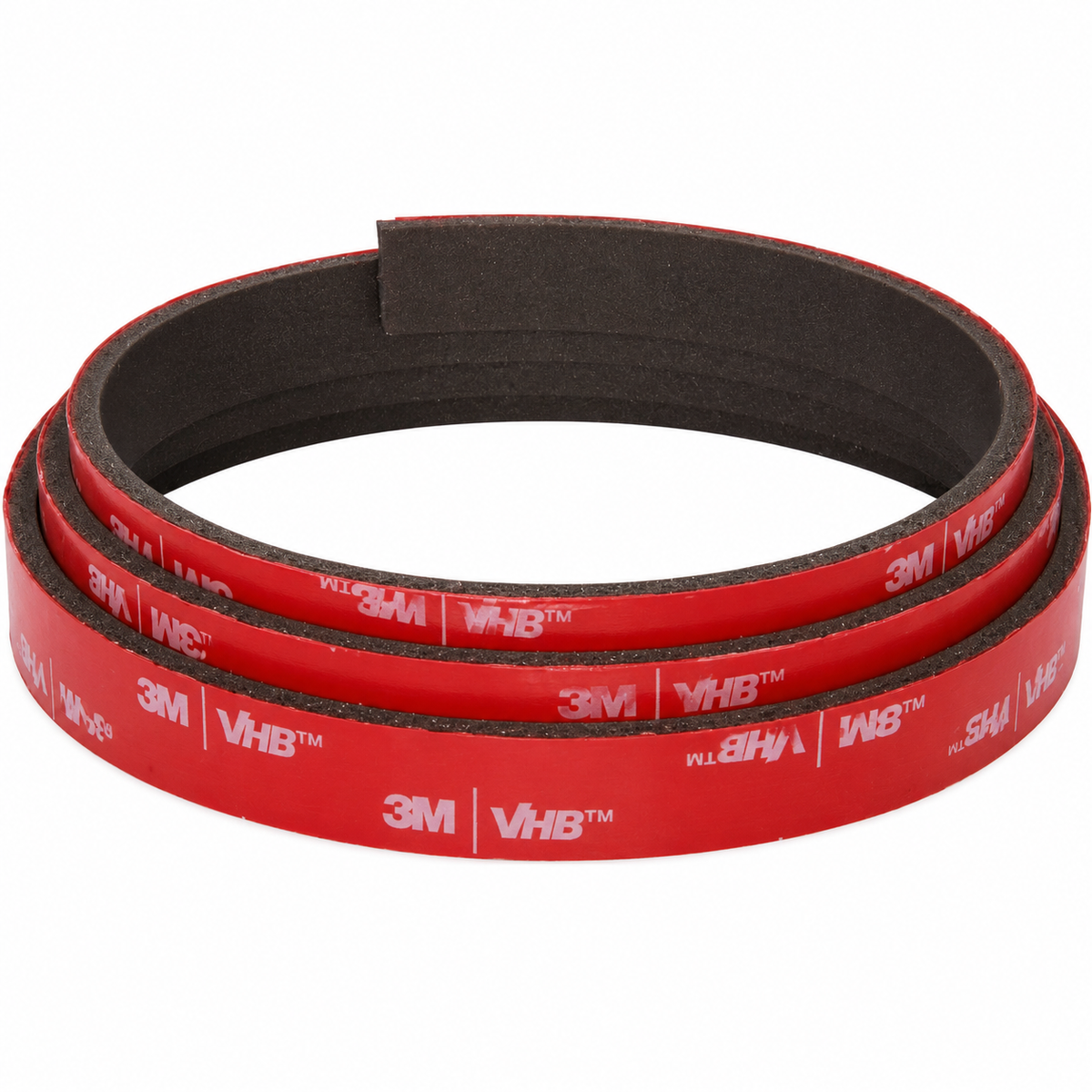

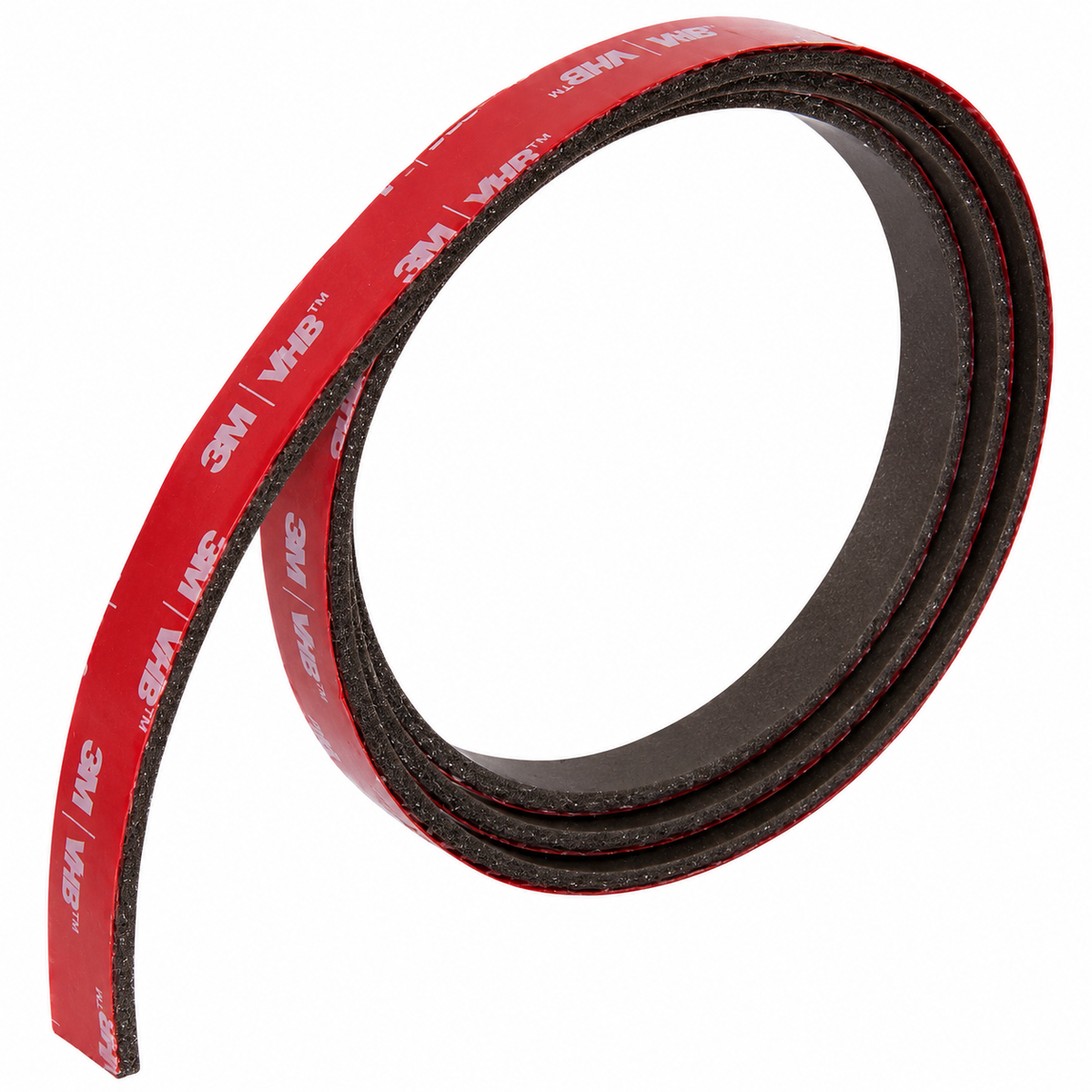

This NeoFlex® flexible magnetic strip is the strongest magnetic tape we have. This self-adhesive Rare Earth magnetic strip has a width of 12.5mm, a thickness of 2mm and a length of 1 metre. This product is Identified by the AMF Magnetics part number 59075VHB.

Uses for our Rare Earth NeoFlex® Magnetic Tape:

As the name suggests, this NeoFlex® 1 metre length of adhesive-backed magnetic tape contains super-strong Neodymium magnetic material within a rubberised medium that gives it excellent flexibility. The addition of versatile and super-strong 3M VHB 4910 adhesive backing to the powerful Neodymium tape results in the ultimate magnetic product that can bond strongly and instantly to a huge range of surfaces including sleek, lightweight modern materials that would otherwise lose structural integrity if attached using traditional penetrative fasteners.

The VHB 4910 adhesive backing takes an already state of the art NeoFlex® magnetic tape product to a new level. Industrial-grade levels of adhesion are obtained with VHB 4910 adhesive and this allows architects and engineers to reconsider design and construction methods where power tools and mechanical fasteners have previously been typical requirements.

3M VHB 4910 adheres instantly without the usual curing period associated with common glues and bonds strongly with a multitude of materials including sealed timber, sealed concrete, glass, metals, PVC, acrylic, polycarbonate and most painted surfaces. VHB 4910 adheres permanently and is highly heat resistant which makes it an excellent alternative to welds, rivets and screws.The reduction in assembly time and employee skill levels makes the innovative VHB 4910 backed NeoFlex® magnetic tape a serious alternative contender for modern construction techniques and product designs that want to avoid using unsightly conventional fasteners and the usual construction and maintenance costs.

Neodymium NeoFlex® Magnetic Strip - 12.5mm x 2mm x 1m | Self-Adhesive 3M VHB 4910 (59075VHB)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
