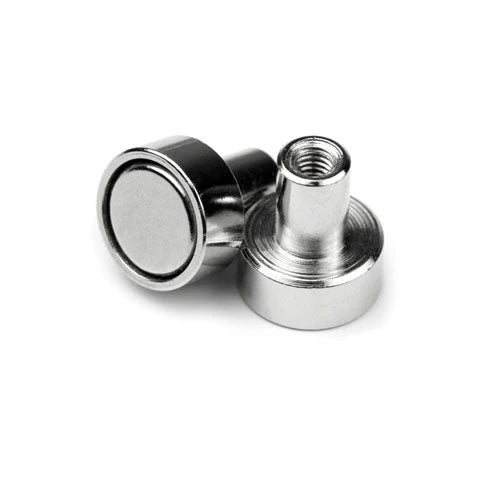

Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm

Product code: AMFYPD10

$2.12for 1 to 9 items
$1.42buy 10 to 99 itemsand save 33%
$1.06buy 100+ itemsand save 50%

Prices are GST Incl.

Volume pricing available on request

Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm

Product Code AMFYPD10
Pull Force* 2.2 kg
Weight 4 gm
Style Rare Earth female thread pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 5mm
*Measured against up to 10mm mild steel.
Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm

Magnetic Product Description:

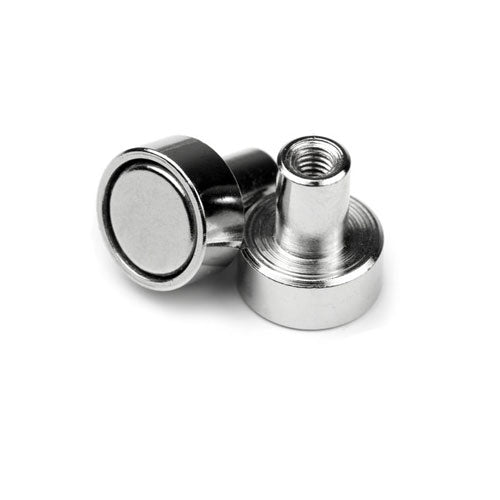

This rare earth female threaded pot magnet has a diameter of 10mm, a total height of 12mm and a magnet housing thickness of 5mm. It has a 3mm female thread with an external boss of 7mm. This female threaded pot magnet has a pull force of 2.2kg and a weight of 4 grams. It is identified by the AMF magnet part number AMFYPD10.


Uses for our rare earth female thread pot magnets:

These Female Threaded Holding Pot Magnets consist of a Neodymium disc magnet housed inside a mild steel cup with a protruding female threaded stem. The steel cap protects the brittle Neodymium magnet within from unwanted damage such as chipping and cracking. This protective case also magnifies the holding power of the magnet by deflecting the magnetic field produced through the reverse side of the magnet so both poles are presented through the active face of the magnet. These pots are commonly used in conjunction with standard hardware such as bolts, hooks and eyelets as a non-destructive solution for attaching and suspending objects from ferrous surfaces.



ModelNo. D1Ø M H h Holding force(kg) Weight (g)
AMFYPD10 10 5.5 3 12 5 2.2 3.5
AMFYPD12 12 6 3 13 5 3.2 5
AMFYPD16 16 6 4 13 5 5.5 8
AMFYPD20 20 8 4 15 7 9 17
AMFYPD25 25 10 5 17 8 22 32
AMFYPD32 32 10 6 18 8 34 47
AMFYPD36 36 10 6 18 8 41 59
AMFYPD42 42 10 6 20 9 68 87
AMFYPD48 48 12 8 24 11.5 81 132
AMFYPD60 60 14 8 30 15 113 270
AMFYPD75 75 16 10 34 18 164 552

Female Thread Neodymium Pot Magnet - Diameter 10mm x 12mm (AMFYPD10)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence
1.18-1.25 N/A
Coercivity
11.8-12.5>=859 N/A
Intrinsic Coercivity
>=10.8 N/A
Max Energy Product
>=955 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence 1.18-1.25 N/A
Coercivity 11.8-12.5>=859 N/A
Intrinsic Coercivity >=10.8 N/A
Max Energy Product >=955 N/A
