Female Thread Neodymium Pot Magnet - Diameter 75mm x 34mm
Product code: AMFYPD75
$137.56for 1 to 9 items
$102.67buy 10 to 99 itemsand
save 25%
$75.77buy 100+ itemsand
save 44%
Female Thread Neodymium Pot Magnet - Diameter 75mm x 34mm
Rated 4.5 out of 5
Product Code
AMFYPD75
Pull Force*
164kg
Weight
552 gm
Style
Rare Earth female thread pot magnet
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetised thru the 18mm
*Measured against up to 10mm mild steel.
Magnetic Product Description:

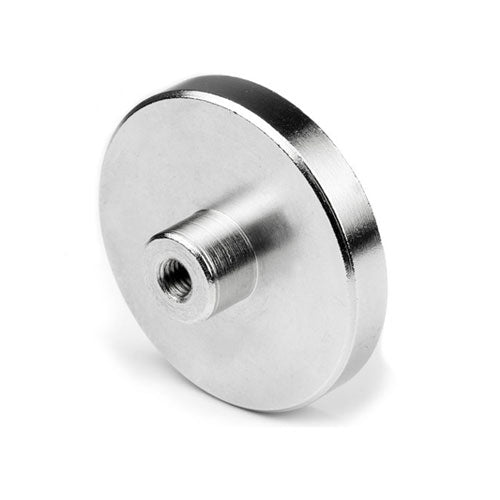

This rare earth female threaded pot magnet has a diameter of 75mm, a total height of 34mm and a thickness of 18mm. It has a 10mm female thread with an external boss of 16mm. This female threaded magnet has a pull force of 164kg and a weight of 552 grams. It is identified by the AMF magnet part number AMFYPD75.
Uses for our rare earth female thread pot magnets:
These Neodymium Pot magnets have a Female Thread for convenient attachment to other materials with a bolt. These materials can include timber, acrylic and other non-ferrous materials including aluminium. These 75mm diameter female Pot magnets can also be fitted with Hooks or Eyelets to convert them into handy suspension tools for organising all types of equipment, in a safe and convenient way. The magnet is encased in steel which protects the magnet from damage, while also deflecting the magnetic force to the base, giving it excellent holding capability and increased attractive power. Non-metallic materials can be fitted with these magnets with a bolt and then attached to metal surfaces like pallet racking, machinery or vehicles, for example. In other applications, they attach to threaded rod can be used to display advertising material or signage which is attached magnetically and easily removed and reattached. Unlike traditional methods of attachment, magnetic bond is non-penetrative and does not require tools or expertise to implement. For outdoor markets, food trucks, workshops and retail displays, Female Thread Pot magnets are extremely popular.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 8 |
5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
Female Thread Neodymium Pot Magnet - Diameter 75mm x 34mm (AMFYPD75)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | |
| >=10.8 | N/A |
| Coercivity bHc(Oe) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | >=10.8 | N/A |
| Coercivity bHc(Oe) | >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
