Female Thread Neodymium Pot Magnet - Diameter 42mm x 20mm
Product code: AMFYPD42
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

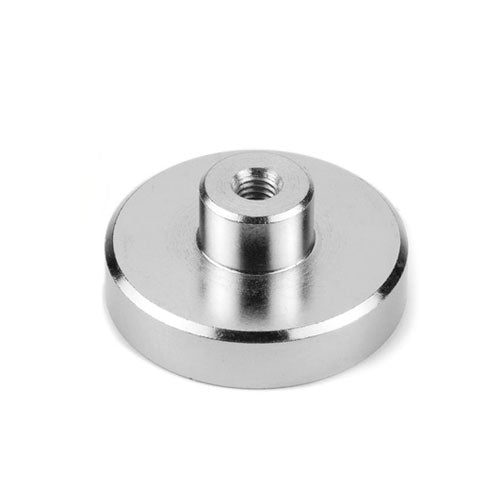

Female Thread Neodymium Pot Magnet - Diameter 42mm x 20mm
Neodymium Pot Magnet with Female Thread Description:
This Rare Earth Female Threaded Magnet has a diameter of 42mm, a total height of 20mm and a magnet housing thickness of 9mm. It has a 6mm female thread. This strong Neodymium Magnet has a pull force of 68kg and a weight of 87 grams. It is identified by the AMF magnet part number AMFYPD42.
Uses for our Neodymium Rare Earth Female Thread Holding Magnets:
Our Rare Earth Holding Pot Magnets (Female Thread) are Neodymium magnets in a mild steel cap that protects the magnet from chipping. Due to the protective cover on these pot magnets, they are effectively a single-sided magnet. This also increases the magnetic field creating a powerful pull strength.
AMF Magnetics range of Female Thread Rare Earth Pot Magnets can accommodate a bolt, threaded bar or an interchangeable eyelet or hook accessory. This permanent Magnetic is great for suspending lighting or electrical cabling in construction areas. Most commonly used by tradespeople or people with temporary stalls and exhibits in markets.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
