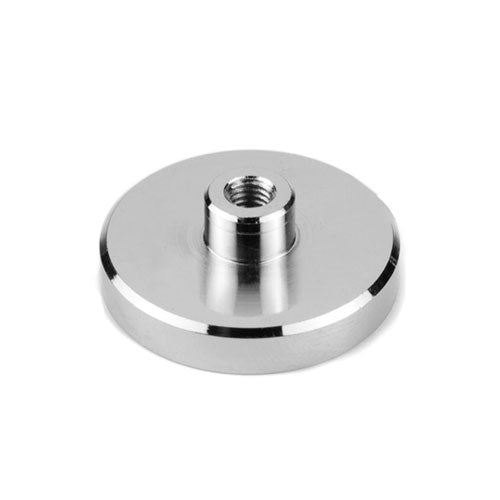

AMF Pot Magnets use high-quality Neodymium Permanent Magnets. These holding magnets are encased in mild steel for extended use and strength, This Rare Earth Female Threaded Pot Magnet has a diameter of 48mm, a total height of 24mm and a magnet housing thickness of 11.5mm. It has an 8mm female thread. This Neodymium Magnetic Pot has a pull force of 81kg and a weight of 132 grams.
These Neodymium Pot Magnets have a Female Thread that allows them to be attached to any type of surface with a bolt. It can also accommodate an eyelet or hook attachment. The steel cover on this magnet is designed to protect the magnet from damage and corrosion. It also redirects the magnetic field so it flows towards the base, creating improved holding force and holding ability.
This threaded magnet can be extremely versatile for attaching various materials securely and quickly to steel surfaces. Add a hook and eyelet attachment for hanging or suspending a range of items from ferrous metal surfaces. Alternatively, a threaded rod or bar can be inserted to attach or display signage and then attached to ferrous metallic surfaces. Magnetic attachment enables signage to be easily removed and replaced as required.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
AMF Pot Magnets use high-quality Neodymium Permanent Magnets. These holding magnets are encased in mild steel for extended use and strength, This Rare Earth Female Threaded Pot Magnet has a diameter of 48mm, a total height of 24mm and a magnet housing thickness of 11.5mm. It has an 8mm female thread. This Neodymium Magnetic Pot has a pull force of 81kg and a weight of 132 grams.
These Neodymium Pot Magnets have a Female Thread that allows them to be attached to any type of surface with a bolt. It can also accommodate an eyelet or hook attachment. The steel cover on this magnet is designed to protect the magnet from damage and corrosion. It also redirects the magnetic field so it flows towards the base, creating improved holding force and holding ability.
This threaded magnet can be extremely versatile for attaching various materials securely and quickly to steel surfaces. Add a hook and eyelet attachment for hanging or suspending a range of items from ferrous metal surfaces. Alternatively, a threaded rod or bar can be inserted to attach or display signage and then attached to ferrous metallic surfaces. Magnetic attachment enables signage to be easily removed and replaced as required.
| ModelNo. | DØ | D1Ø | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPD10 | 10 | 5.5 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPD12 | 12 | 6 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPD16 | 16 | 6 | 4 | 13 | 5 | 5.5 | 8 |
| AMFYPD20 | 20 | 8 | 4 | 15 | 7 | 9 | 17 |
| AMFYPD25 | 25 | 10 | 5 | 17 | 8 | 22 | 32 |
| AMFYPD32 | 32 | 10 | 6 | 18 | 8 | 34 | 47 |
| AMFYPD36 | 36 | 10 | 6 | 18 | 8 | 41 | 59 |
| AMFYPD42 | 42 | 10 | 6 | 20 | 9 | 68 | 87 |
| AMFYPD48 | 48 | 12 | 8 | 24 | 11.5 | 81 | 132 |
| AMFYPD60 | 60 | 14 | 8 | 30 | 15 | 113 | 270 |
| AMFYPD75 | 75 | 16 | 10 | 34 | 18 | 164 | 552 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
The Pull Force listed for each magnet is based on lifting 10mm thick steel from a horizontal surface. Magnets on a vertical surface (of 10mm thick steel) are generally able to hold around only 30% of the pull force listed in the product description. This is due to the effects of gravity and the lack of friction between the surface and the shiny magnet. Read More
