Neodymium Pot Magnet with Round Hole - 42mm x 7.5mm (Slim Profile)
Product code: AMFYPB42SLIM
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

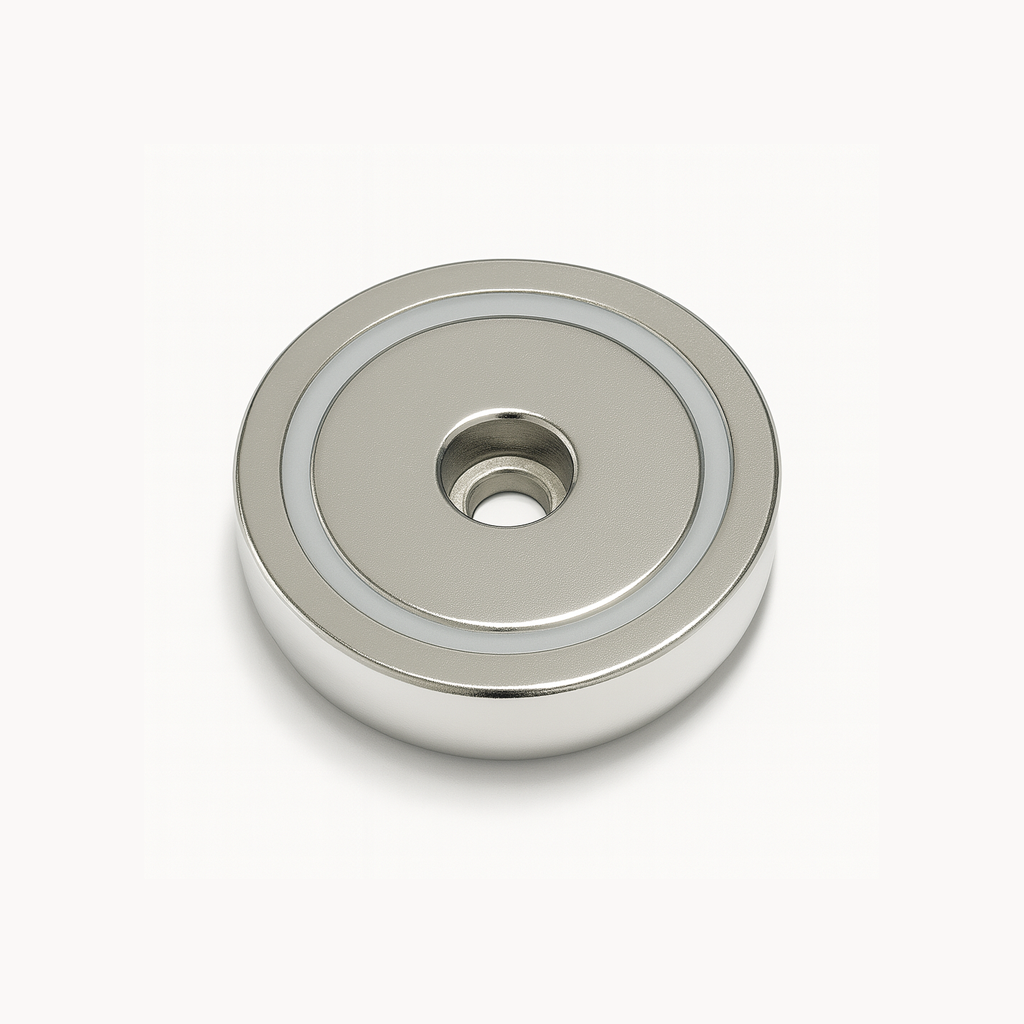

This Neodymium Pot Magnet with Round Hole (42mm diameter x 7.5mm thick) is a high-performance rare earth magnet encased in a durable steel pot to maximise its holding power. Designed for versatility, the through-hole allows easy and secure attachment with bolts or fasteners, making it ideal for industrial, commercial, and DIY applications. This product is identified by product code AMFYPB42SLIM.
With an impressive pull force of 28 kilograms, this compact magnet delivers strong holding strength while maintaining a slim profile. The protective steel casing not only boosts magnetic performance but also safeguards the brittle neodymium core from chipping or damage, ensuring long-lasting reliability.
Perfect for use in metal fabrication, signage, fixtures, jigs, workshops, and warehouse organisation, this pot magnet is a trusted solution for anyone needing a dependable magnetic fastening system.
Key Features:
-
Dimensions: 42mm diameter x 7.5mm thickness
-
Central round hole for easy mounting
-
Pull Force: 28kg – strong holding strength in a compact design
-
Rare Earth Neodymium Grade N38 for maximum performance
-
Protective steel casing for enhanced durability
-
Suitable for industrial, trade, and home applications
Please allow tolerances of up to 2.5mm in thickness for this product. Contact our office for critical dimensions.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPB16 | 16 | 3.5 | 6.5 | 5 | 4 | 6 |
| AMFYPB20 | 20 | 4.5 | 8 | 7 | 6 | 12 |
| AMFYPB25 | 25 | 5.5 | 9 | 8 | 14 | 23 |
| AMFYPB32 | 32 | 5.5 | 9 | 8 | 23 | 36 |
| AMFYPB36 | 36 | 6.5 | 11 | 9 | 29 | 50 |
| AMFYPB42 | 42 | 6.5 | 11 | 9 | 32 | 73 |
| AMFYPB48 | 48 | 8.5 | 15 | 11.5 | 63 | 114 |
| AMFYPB60 | 60 | 8.5 | 15 | 15 | 95 | 240 |
| AMFYPB75 | 75 | 10.5 | 18 | 18 | 155 | 471 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
