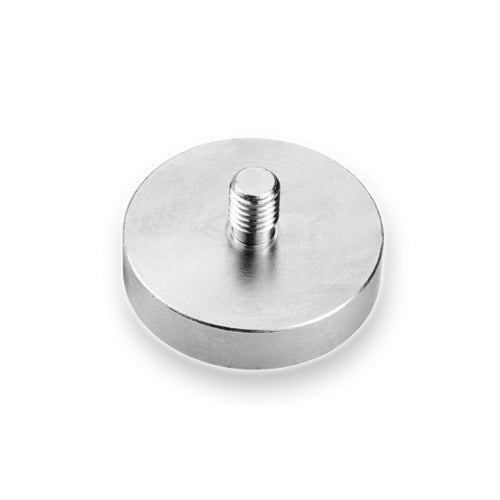

Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 8mm Thread
Product code: AMFYPC42/8
Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 8mm Thread
Male Thread Neodymium Holding Magnet Description:
AMF supplies Holding Pot Magnets in many shapes, sizes and strengths. This strong Neodymium Magnetic Pot has a powerful pull strength and a male thread that can be screwed into a female thread. It has an incredible pull force of 68kg while only being 48mm in diameter and 20mm in height. This magnet is encased in mild steel to protect it from corrosion or chipping.
Uses for our Rare Earth Pot Magnets with Male Thread:
This permanent magnet can be screwed into a female thread making it perfect for holding purposes. Threaded Pot Magnets are designed to provide a strong holding force through the thread and the magnetic strength. The powerful strength of this Male Thread Neodymium Pot Magnet combined with the convenient feature of a male thread makes this product incredibly versatile and able to be used in many industrial applications. To create a secure hold, use this Threaded Rare Earth Holding Pot Magnets with a washer and a nut, then screw into a female thread in order to achieve a firm hold.
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 8mm Thread (AMFYPC42/8)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | |
| >=10.8 | N/A |
| Coercivity bHc(Oe) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | >=10.8 | N/A |
| Coercivity bHc(Oe) | >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
Male Thread Neodymium Holding Magnet Description:
AMF supplies Holding Pot Magnets in many shapes, sizes and strengths. This strong Neodymium Magnetic Pot has a powerful pull strength and a male thread that can be screwed into a female thread. It has an incredible pull force of 68kg while only being 48mm in diameter and 20mm in height. This magnet is encased in mild steel to protect it from corrosion or chipping.
Uses for our Rare Earth Pot Magnets with Male Thread:
This permanent magnet can be screwed into a female thread making it perfect for holding purposes. Threaded Pot Magnets are designed to provide a strong holding force through the thread and the magnetic strength. The powerful strength of this Male Thread Neodymium Pot Magnet combined with the convenient feature of a male thread makes this product incredibly versatile and able to be used in many industrial applications. To create a secure hold, use this Threaded Rare Earth Holding Pot Magnets with a washer and a nut, then screw into a female thread in order to achieve a firm hold.
| ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
| AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
| AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
| AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
| AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
| AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
| AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
| AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
| AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
| AMFYPC48 | 48 | 8 | 24 | 11.5 | 81 | 130 |
| AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
| AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
Male Thread Neodymium Pot Magnet - Diameter 42mm x 20mm | 8mm Thread (AMFYPC42/8)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | |
| >=10.8 | N/A |
| Coercivity bHc(Oe) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | >=10.8 | N/A |
| Coercivity bHc(Oe) | >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
