Product code: AMFYPC16

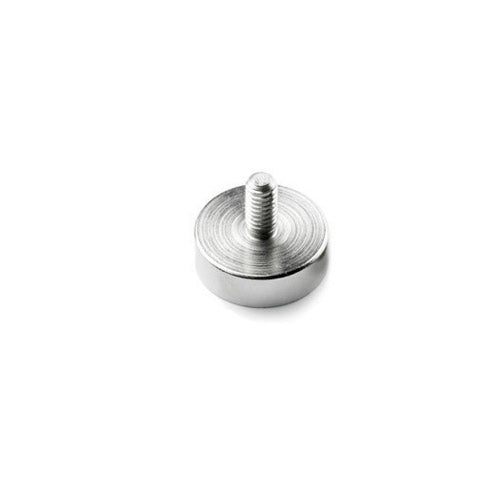

This rare earth male threaded pot magnet has a diameter of 16mm, a total height of 13mm and a magnet housing thickness of 5mm. It has a M4 thread with an external boss of 8mm. This male threaded magnet has a pull force of 5.5kg and a weight of 8 grams. It is identified by the AMF magnet part number AMFYPC16.
This Male Threaded Rare Earth Pot Magnet is designed for attachment using a washer and nut. A mild steel cap covers the powerful Neodymium magnet, protecting it against damage such as chipping and cracking. The steel cup also alters the magnetic field of the magnet, projecting both North and South poles through the active face of the magnet and thereby enhancing the magnetic holding power. The male threaded boss allows for easy attachment to non-ferrous materials such as timber or plastic, it also enables the magnet to be easily incorporated into larger mechanical devices or machinery. This 16mm diameter magnet is particulars popular with Electricians and Electrical Engineers.
ModelNo. | DØ | M | H | h | Holding force(kg) | Weight (g) |
AMFYPC10 | 10 | 3 | 12 | 5 | 2.2 | 3.5 |
AMFYPC12 | 12 | 3 | 13 | 5 | 3.2 | 5 |
AMFYPC16 | 16 | 4 | 13 | 5 | 5.5 | 7.5 |
AMFYPC20 | 20 | 4 | 15 | 7 | 9 | 16 |
AMFYPC25 | 25 | 5 | 17 | 8 | 22 | 30 |
AMFYPC32 | 32 | 6 | 18 | 8 | 34 | 45 |
AMFYPC36 | 36 | 6 | 18 | 8 | 41 | 57 |
AMFYPC42 | 42 | 6 & 8 | 20 | 9 | 68 | 84 |
AMFYPC48 | 48 | 8 | 24 | 11.5 | 81 | 130 |
AMFYPC60 | 60 | 8 | 30 | 15 | 113 | 254 |
AMFYPC75 | 75 | 10 | 34 | 15 | 164 | 550 |
Male Thread Neodymium Pot Magnet - Diameter 16mm x 13mm (AMFYPC16)
Grade | |
---|---|
N35 | N/A |
Max Operating Temperature °C | |
<=80 | N/A |
Remanence Br(T) | |
1.18-1.25 | N/A |
Remanence Br(kGs) | |
11.8-12.5>=859 | N/A |
Coercivity bHc(kA/m) | |
>=10.8 | N/A |
Coercivity bHc(Oe) | |
>=955 | N/A |
Intrinsic Coercivity iHc(kA/m) | |
>=12 | N/A |
Intrinsic Coercivity iHc(Oe) | |
263-294 | N/A |
Max Energy Product(BH)max(KJ/m) | |
33-37 | N/A |
Grade | N35 | N/A |
Max Operating Temperature °C | <=80 | N/A |
Remanence Br(T) | 1.18-1.25 | N/A |
Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
Coercivity bHc(kA/m) | >=10.8 | N/A |
Coercivity bHc(Oe) | >=955 | N/A |
Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
