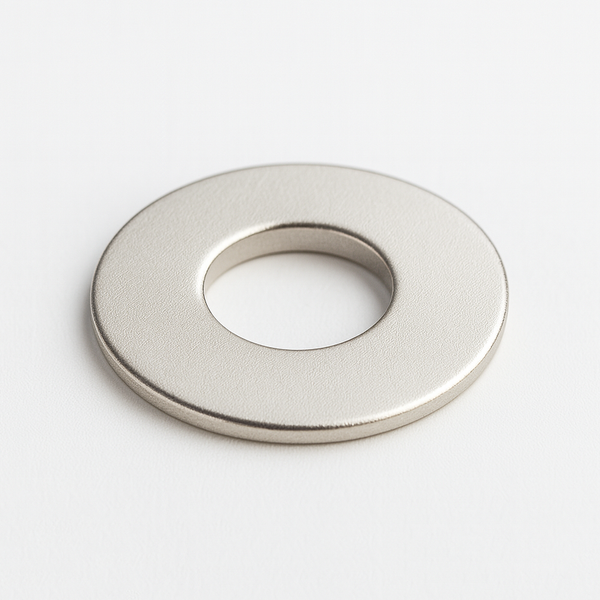

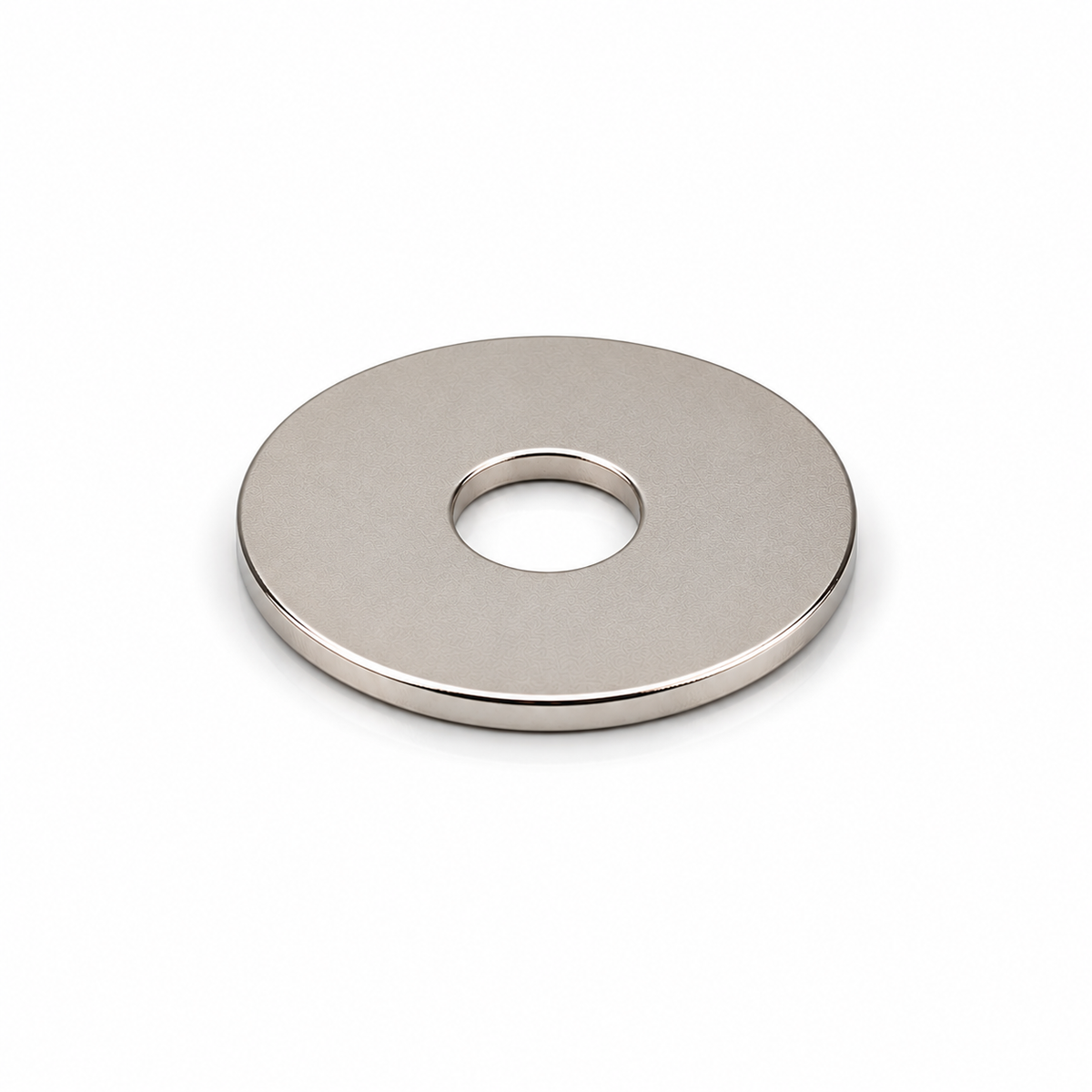

Neodymium Ring Magnet – 24mm (OD) x 7.5mm (ID) x 1.5mm (H) | N35H | High Temperature >120°C
Product code: 23004E
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Engineered for maximum magnetic performance, this Neodymium Ring Magnet features a 24mm outer diameter, 7.5mm inner diameter, and a slim 1.5mm height. Made from a N35H -grade neodymium, it delivers up to temperatures of 120°C. This product is identified by AMF Magnetics product code 23004E.
The ring shape makes it easy to integrate into mechanical assemblies, magnetic couplings, sensors, and precision devices. Ideal for both industrial and technical applications, the central hole allows for secure mounting on shafts, rods, or fasteners.
Whether you're working on a high-efficiency motor or a custom engineering project, this N35H ring magnet offers superior strength and precision in a low-profile design.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
