Ring Magnet Assembly - OD100mm x ID60mm xH30mm (Total OD 106mm including 3mm Copper Housing) | 12pc Segment | N52 | NiCuNi
Product code: 90015
Australia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Ring Magnet Assembly – OD100mm x ID60mm x H30mm | N52 | 12 Segments | Copper Housing

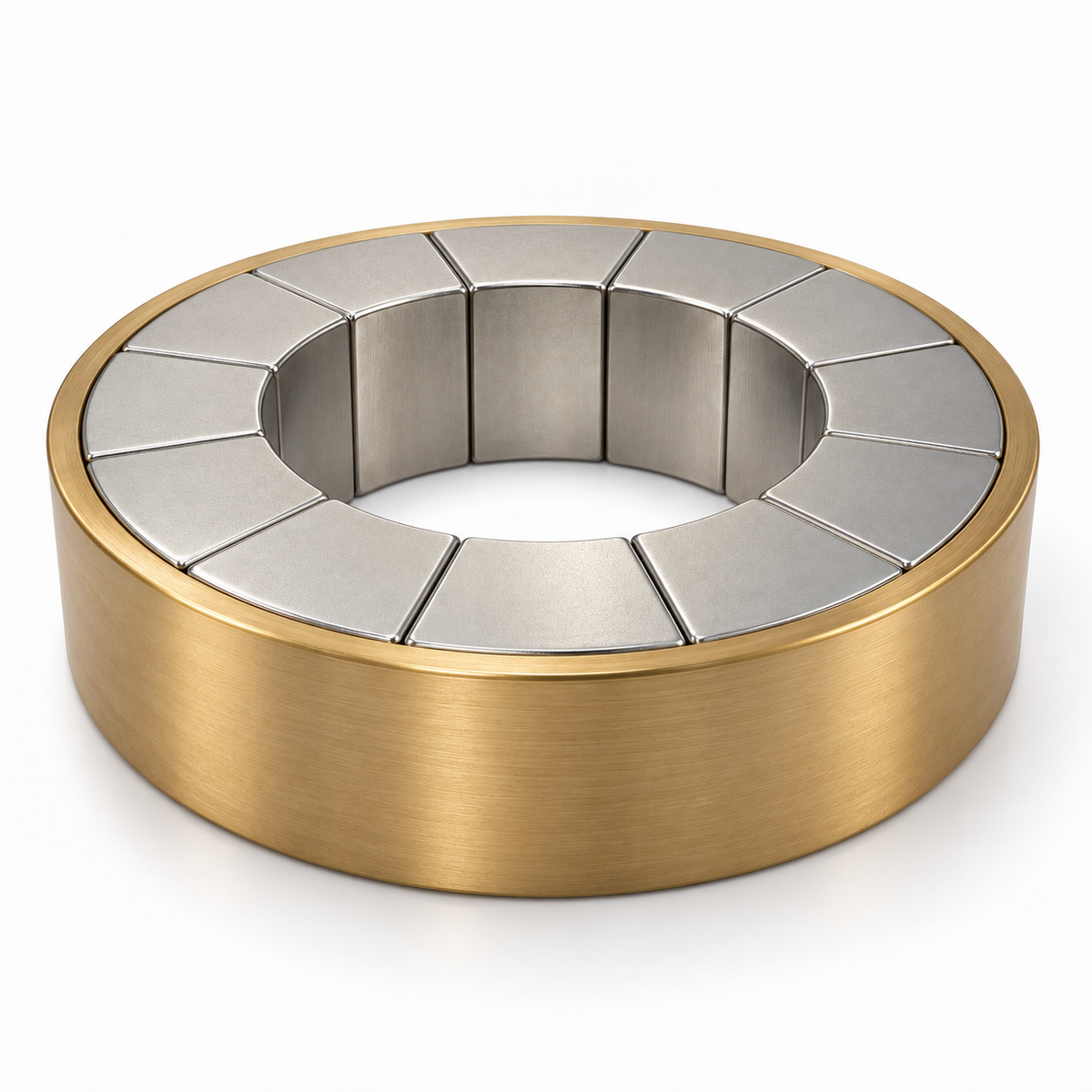

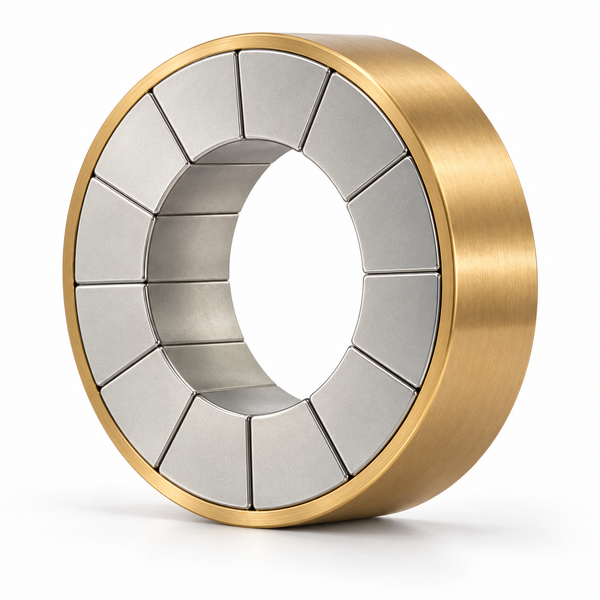

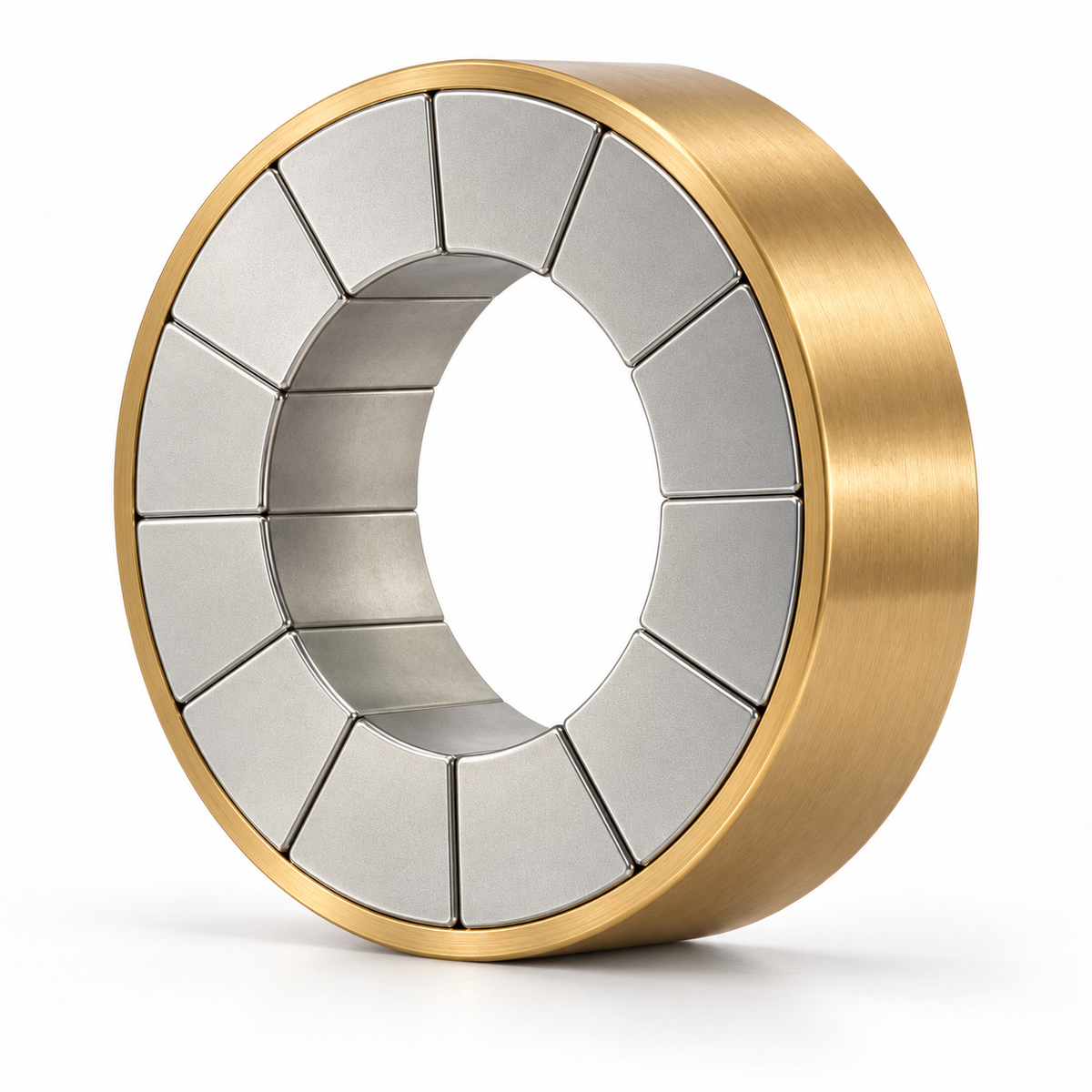

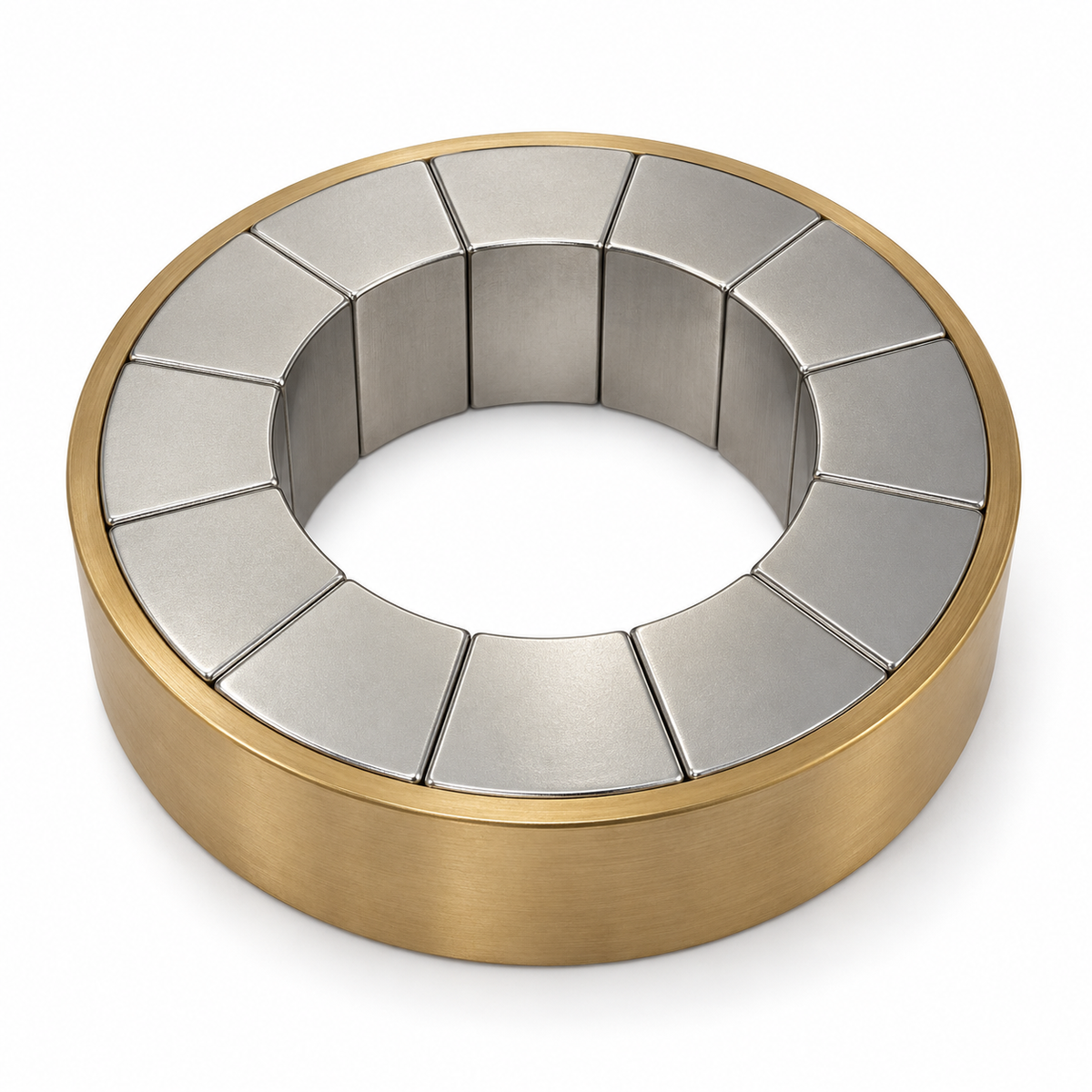

The Ring Magnet Assembly combines 12 x N52 Neodymium arc magnets within a 3mm-thick copper mounting ring, creating a compact circular magnetic assembly for integration into custom equipment and engineering projects.
Each magnet segment spans 30°, with all 12 segments forming a complete ring measuring 100mm outside diameter × 60mm inside diameter × 30mm high. The copper housing increases the assembly’s total outside diameter to 106mm—an important dimension when designing mounting spaces or checking equipment compatibility.
The magnets feature a Nickel–Copper–Nickel (NiCuNi) coating, providing a smooth metallic finish and helping protect their surfaces. The specified pole arrangement is north polarity facing outwards and south polarity facing inwards.
Key Features and Benefits
-
N52 Neodymium magnets: High-grade Rare Earth magnets provide strong magnetic performance within a compact assembly.
-
12-piece segmented construction: Twelve 30° arc magnets form a complete 360° ring.
-
Copper mounting housing: A 3mm-thick outer copper ring supports and retains the magnet segments.
-
106mm total outside diameter: Includes the 100mm magnet ring and 3mm copper housing on both sides.
-
60mm central opening: Provides clearance for compatible shafts, tubes or other components, subject to installation requirements.
-
30mm assembly height: Suitable for designs requiring a defined axial depth.
-
NiCuNi-coated magnets: A Nickel–Copper–Nickel coating helps protect the magnet surfaces and provides a clean metallic finish.
-
Defined pole orientation: North polarity faces the outside of the magnet ring, while south polarity faces the central opening.
Applications
This N52 segmented ring magnet assembly can be considered for engineering projects requiring a circular magnetic arrangement with a central opening. Potential applications include:
-
Custom magnetic assemblies: Integration into purpose-designed equipment and fixtures.
-
Research and development: Evaluation of circular magnetic arrangements and interactions with other components.
-
Industrial equipment: Installation in compatible machinery requiring a segmented Rare Earth magnet ring.
-
Sensor development: Testing magnetic sensing arrangements where the specified pole orientation suits the design.
-
Educational demonstrations: Exploring segmented magnet construction and magnetic polarity.
Suitability depends on the required magnetic field distribution, clearances, mechanical retention and operating conditions. Confirm these requirements before incorporating the assembly into your design.
Dimensions and Mounting Considerations
The magnet ring outside diameter is 100mm, while the copper housing adds 3mm of radial thickness around the outside, bringing the overall outside diameter to 106mm.
Use 106mm as the external fitment dimension when planning an enclosure or mounting location. The central opening measures 60mm, and the assembly height is 30mm. Allow appropriate clearance for installation and confirm dimensional tolerances where a precise fit is required.
Specifications
-
Product: Ring Magnet Assembly
-
Magnet material: Neodymium Rare Earth
-
Magnet grade: N52
-
Number of magnet segments: 12
-
Arc angle per segment: 30°
-
Complete ring angle: 360°
-
Magnet ring outside diameter: 100mm
-
Inside diameter: 60mm
-
Height: 30mm
-
Outer housing material: Copper
-
Copper housing thickness: 3mm
-
Total outside diameter, including housing: 106mm
-
Magnet coating: Nickel–Copper–Nickel (NiCuNi)
-
Specified polarity: North facing outwards / South facing inwards
Handling and Safe Use
N52 Neodymium magnets produce strong magnetic attraction. Keep fingers clear of trapping points and prevent the assembly from snapping against steel surfaces or other magnets.
Rare Earth magnets are brittle and can chip or fracture under impact. Handle the assembly carefully and protect the coated magnet surfaces during installation. Keep away from children, sensitive electronics and medical implants that may be affected by magnetic fields.
Confirm the assembly’s temperature limits, environmental compatibility and mounting requirements before use.
Frequently Asked Questions
Is the outside diameter 100mm or 106mm?
The magnet ring measures 100mm outside diameter. Including the 3mm-thick copper housing, the complete assembly measures 106mm outside diameter.
How many magnets are included?
The assembly contains 12 arc magnet segments, each spanning 30°, forming a complete circular ring.
What grade are the magnets?
The segments are manufactured from N52 Neodymium Rare Earth material.
What does NiCuNi mean?
NiCuNi describes the magnets’ Nickel–Copper–Nickel coating.
What is the pole orientation?
The specified arrangement has north polarity facing outwards and south polarity facing inwards, towards the central opening.
What is the housing made from?
The outer mounting ring is made from copper and has a 3mm wall thickness.
What size is the central opening?
The ring has a 60mm inside diameter.
No FAQ available
