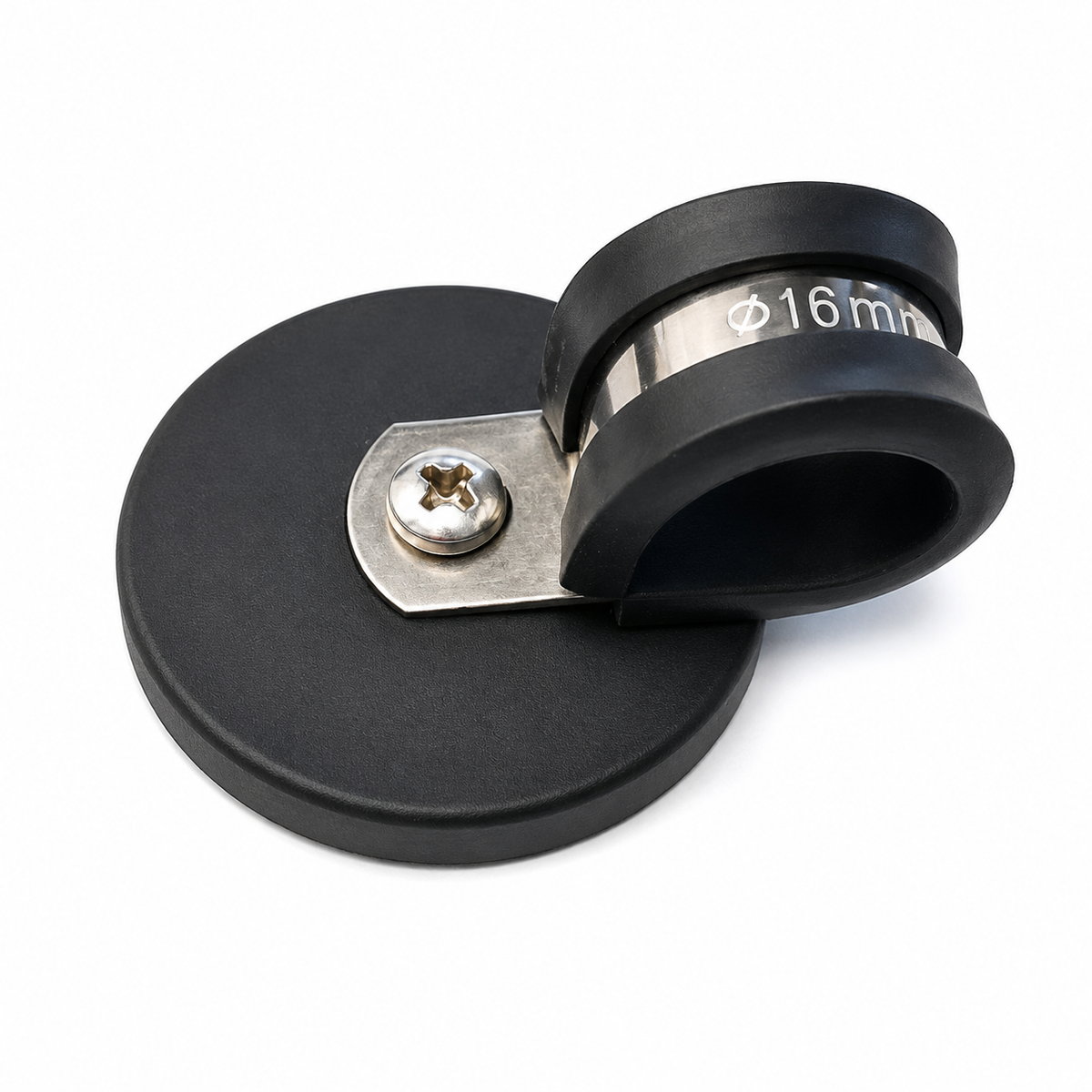

Rubber Coated Neodymium Pot Magnet - Diameter 43mm x 30mm with Rubber-lined P Clamp

Product code: RCND43PR

$16.65for 1 to 9 items
$14.75buy 10 to 99 itemsand save 11%
$13.15buy 100+ itemsand save 21%

Prices are GST Incl.

Volume pricing available on request

Rubber Coated Neodymium Pot Magnet - Diameter 43mm x 30mm with Rubber-lined P Clamp

Product Code RCND43PR
Pull Force* 10kg
Weight 39 gm
Style Rare Earth rubber coated pot magnet
Grade N35
Direction of Magnetisation Axially magnetised
Dimensions Total Height:30mm, Diameter:43mm
*Measured against up to 10mm mild steel.

Magnetic Product Description:

This rare-earth pot magnet has a diameter of 43mm, a total height of 30mm with a rubber-lined p clamp, and the closed-loop is 16mm. This mounting magnet has a pull force of 10kg. It is identified by the AMF magnet part number RCND43PR.


Rubber Coated Neodymium Pot Magnet - Diameter 43mm x 30mm with Rubber-lined P Clamp (RCND43PR)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5 N/A
Coercivity bHc(kA/m)
>=859 N/A
Coercivity bHc(Oe)
>=10.8 N/A
Intrinsic Coercivity iHc(kA/m)
>=955 N/A
Intrinsic Coercivity iHc(Oe)
>=12 N/A
Max Energy Product(BH)max(KJ/m)
263-294 N/A
Max Energy Product(BH)max(MGOe)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5 N/A
Coercivity bHc(kA/m) >=859 N/A
Coercivity bHc(Oe) >=10.8 N/A
Intrinsic Coercivity iHc(kA/m) >=955 N/A
Intrinsic Coercivity iHc(Oe) >=12 N/A
Max Energy Product(BH)max(KJ/m) 263-294 N/A
Max Energy Product(BH)max(MGOe) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
