Ferrite Pot Magnet - 32mm x 7mm
Product code: 89018
Earn 9 points for this product with AMF Magnetics Perks
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

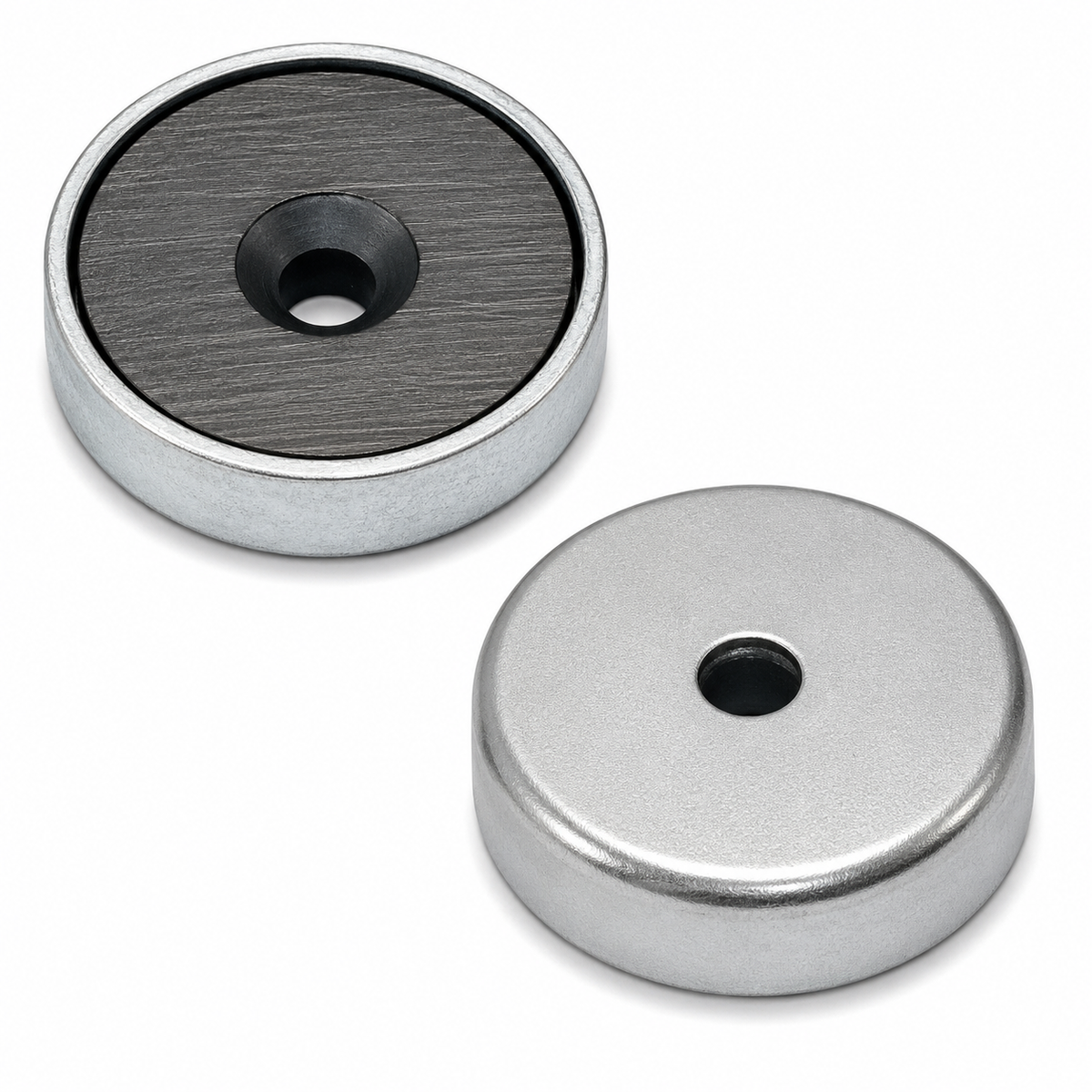

This ferrite pot magnet has a diameter of 32mm and a height of 7mm. It has a countersunk magnet bore and a 5.8mm pot bore. This ferrite magnet is identified by the AMF Magnetics part number 89018.
Uses for our ferrite pot magnets:
Our ferrite pot magnets have a mild steel casing over a ferrite ring magnet with a round central hole for fixing a bolt, rivet or screw, for attaching to non-magnetic surfaces. With no moving parts this ferrite pot magnet requires no maintenance beyond ensuring the magnet is clean before use.
| ModelNo. | D | d1 |
Magnet Bore |
Pot Bore (mm) | H | Pull force | Weight (g) |
| 89016 | 40 | 8.6mm | M5 thread | 8 | 7 kg | 0.0950 | |
| 89017 | 25 | C/sunk | 5.3 | 8 | 0.0170 | ||
| 89018 | 32 | C/sunk | 5.8 | 7 | 0.0280 | ||
| 89019 | 36 | 9mm hole | 4.8 | 7 | 0.0370 | ||
| 89020 | 55 | 22mm | 4.6 | 11 | 12 kg | 0.0600 | |
| 89030 | 88 | 32mm | 13.6 | 18 | 30 kg | 0.0700 | |
| 89031 | 90 | 18 | C/sunk | 10 | 12 | 30 kg | 0.0700 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specific values within that range.
