Ferrite Pot Magnet - 40mm x 8mm
Product code: 89016
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*
Magnetic Product Description:

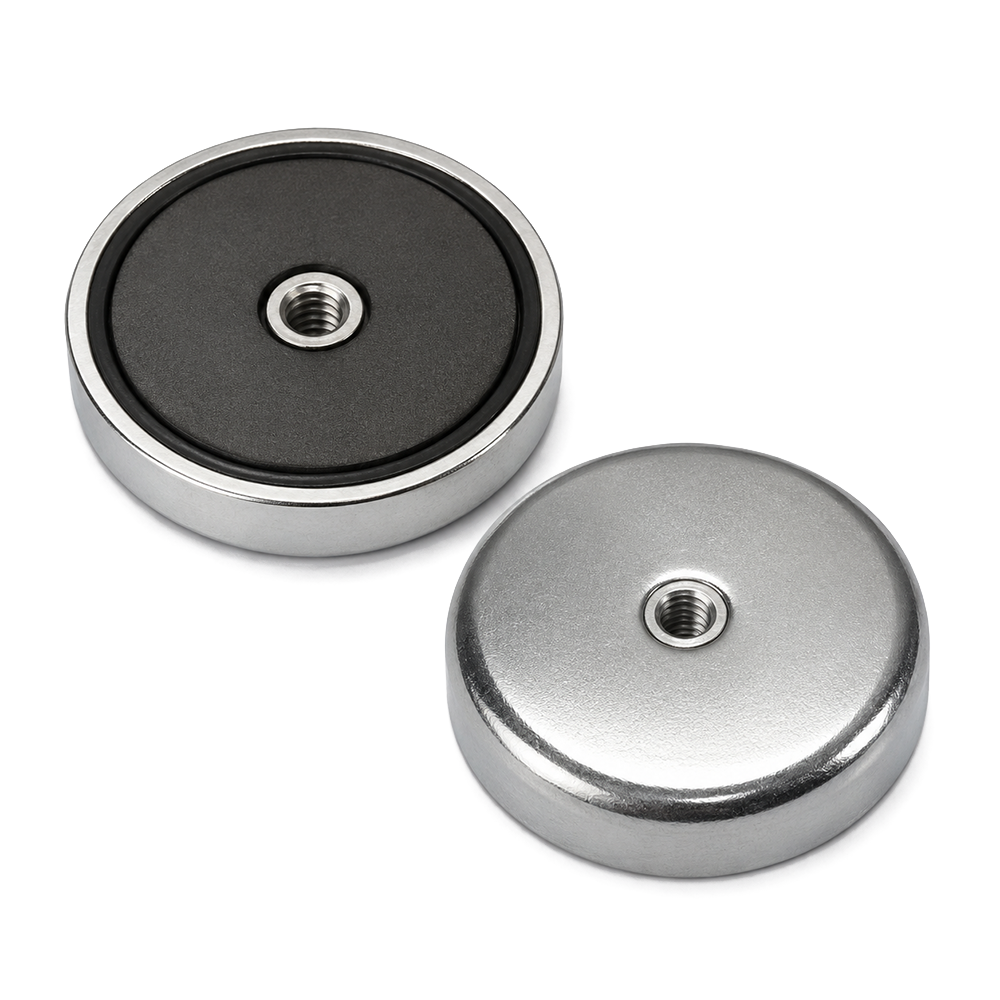

This ferrite pot magnet has a diameter of 40mm, a height of 8mm and a pull force of 7 kg. It has an 8.6mm magnet bore and a M5 threat pot bore. This ferrite magnet is identified by the AMF magnet part number 89016.
Uses for our ferrite pot magnets:
Encased in a mild steel casing these ferrite ring magnets exert a powerful 7 kg pull force. With a threaded void at its centre this permanent and removable magnet provides plenty of options in the workshop as secure hold and clamp functions while components on workbenches undergo alteration or manufacture. The threaded void allows these pot magnets to be affixed to nonmagnetic surfaces with a screw, bolt or rivet. Once in place these magnets can be used to hold or suspend tools and materials on vertical surfaces for an orderly workspace and simple storage and easy retrieval.
In the storage area for finished product or in a showroom these magnets can receive a threaded eyelet or hook in order to suspend finished articles like watercraft and accessories in an alluring manner highlighting to passing trade the products availability and desirability.
Suspending finished product like surfboards or other highly finished products either in storage area or in the showroom with magnetic engagement allows the product to float in its own space. These permanent magnets suspending product reduces it incidence of shop soiling as product is retrieved and returned for inspection or cleaning.
Such a neat and simple presentation of new product encourages tactile engagement with potential customers. This moment of engagement offers the merchant on opportunity to overcome objections and encourages the impulse to purchase.
For businesses making their own product and showcasing and retailing the goods on site magnets of all kinds can be used as hold and release options in the workshop and storage rooms, secure and release product in a simple and alluring fashion in the retail space and be used to affix signs outside and on commercial vehicles in a non-invasive manner, where removal or repositioning minimises material penalty to the surfaces to which they are attached.
Our ferrite pot magnets have a mild steel casing over a ferrite ring magnet with a round central hole for fixing a bolt, rivet or screw, for attaching to non-magnetic surfaces. With no moving parts this ferrite pot magnet requires no maintenance beyond ensuring the magnet is clean before use.
| ModelNo. | D | d1 |
Magnet Bore |
Pot Bore | H | Pull force | Weight (g) |
| 89016 | 40 | 8.6mm | M5 thread | 8 | 7 kg | 0.0950 | |
| 89017 | 25 | C/sunk | 4.8 | 8 | 0.0170 | ||
| 89018 | 32 | C/sunk | 5.8 | 7 | 0.0280 | ||
| 89019 | 36 | 9mm hole | 4.8 | 7 | 0.0370 | ||
| 89020 | 55 | 22mm | 4.6 | 11 | 12 kg | 0.0600 | |
| 89030 | 88 | 32mm | 13.6 | 18 | 30 kg | 0.0700 | |
| 89031 | 90 | 18 | C/sunk | 10 | 12 | 30 kg | 0.0700 |
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specific values within that range.
