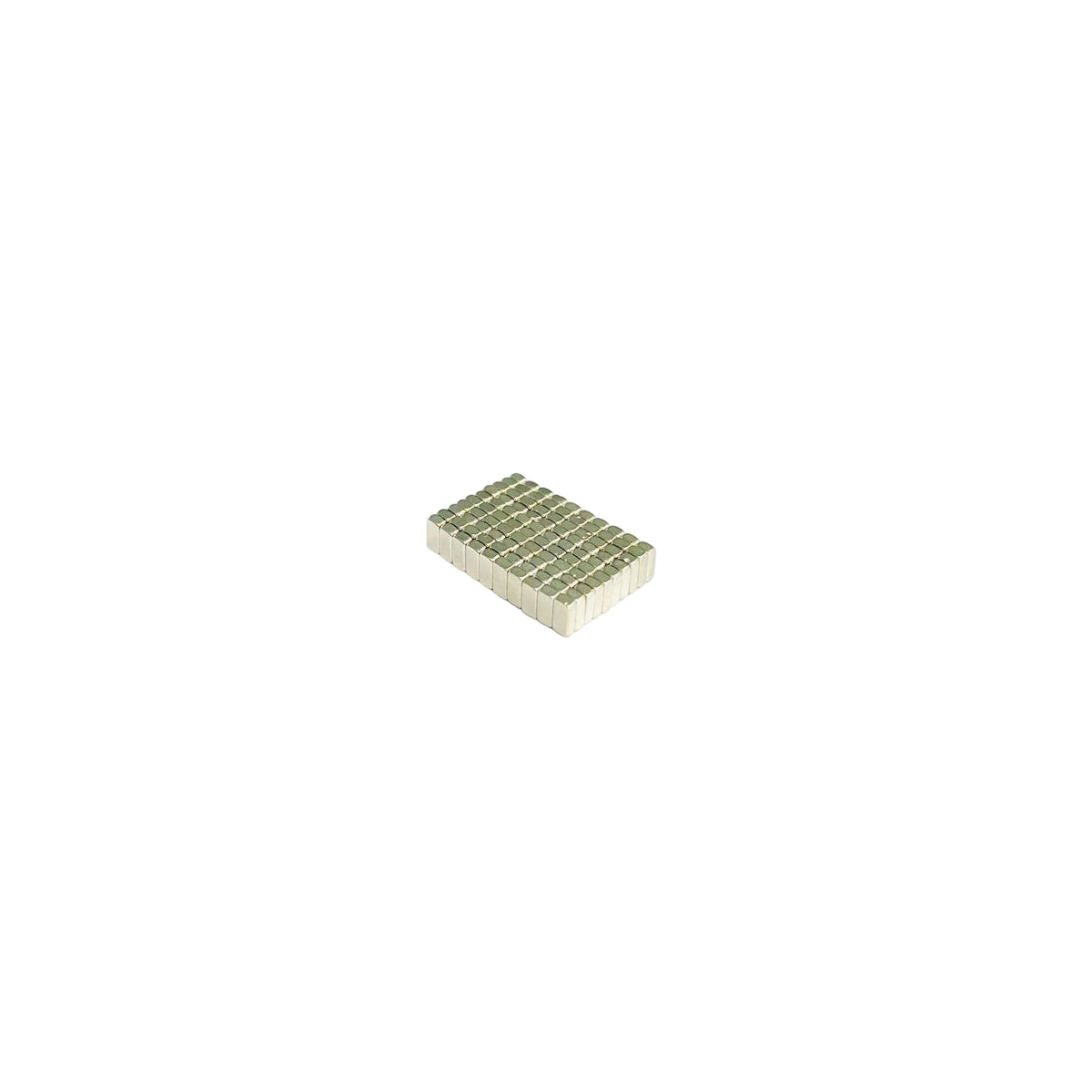

Neo Blk 5x1.7x3.5mm N50 | Magnetised thru 3.5mm
Product code: B-W1.7H3.5L5-N50
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
This Neodymium Block Magnet measures 5mm (L) x 1.7mm (W) x 3.5mm (H) and is manufactured from powerful N50 Rare Earth material, making it an exceptional choice . With a pull force of 399 grams and a surface field of 6609 Gauss, this compact yet high-performance magnet is engineered for precision applications in electronics, sensors, laboratory instruments, and specialist engineering projects.
This magnet is identified by product code B-W1.7H3.5L5-N50
Its slimline dimensions and strong adhesive pull make it ideal for use in miniature devices, custom assemblies, and space-restricted magnetic systems.
Key Features:
Dimensions: 5mm x 1.7mm x 3.5mm
Material: Rare Earth Neodymium (N50 grade)
Temperature Resistance: Up to 80°C
Pull Force: 399g
Surface Gauss: 6609
Compact size with high magnetic strength
Applications:
Electronics & Circuitry – for positioning, holding, and sensing applications.
Medical & Laboratory Equipment – precision magnetic solutions in controlled environments.
Engineering & Prototyping – suitable for test rigs and assemblies.
Crafts & Custom Builds – strong miniature magnet for creative and technical projects.
AMF Magnetics supplies premium quality Neodymium magnets trusted by engineers, manufacturers, and hobbyists across Australia. With local stock and fast dispatch, you can rely on this 5mm x 1.7mm x 3.5mm N50 block magnet for performance, durability, and reliability in every application.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
