Neodymium Block Magnet - 10mm x 5mm x 5mm | N45
Product code: B-W5H5L10-N45
Prices are GST Incl.
Request a Quote for Bulk OrdersAustralia's Leading Supplier
30 Day Returns Policy
ISO 9001 and HACCP Certified
Neodymium Block Magnet – 10mm x 5mm x 5mm | N42

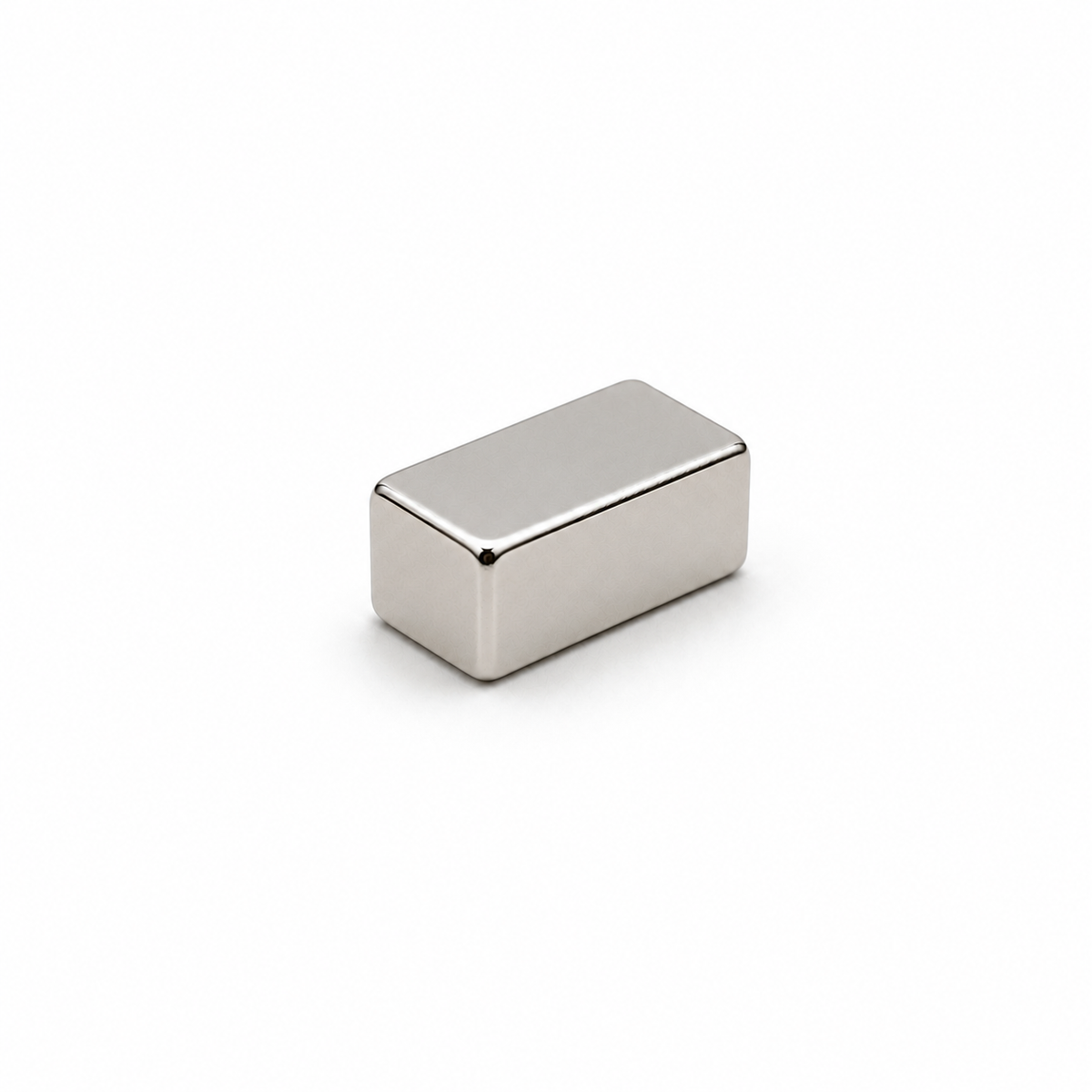

This compact N45 neodymium block magnet measures 10mm long, 5mm wide and 5mm high. Weighing approximately 2 grams, it provides a pull force of approximately 2.71kg, offering a strong magnetic hold from a small rectangular magnet.
Product Specifications
- Material: Neodymium rare earth magnet (NdFeB)
- Grade: N45
- Dimensions: 10mm (L) x 5mm (W) x 5mm (H)
- Pull force: Approximately 2.71kg
- Approximate weight: 2g
- Shape: Rectangular block
- Part number: B-W5H5L10-N45
Common Applications
- Magnetic closures, catches and latches
- Electronic and electromechanical products
- DC motors, generators and power tools
- Speakers, microphones and audio equipment
- Robotics, automation and sensor assemblies
- Jigs, fixtures, prototypes and DIY projects
Strong Magnetic Performance in a Compact Block
Neodymium magnets are valued for their high strength-to-weight ratio. The flat faces of this block magnet provide broad contact with ferrous surfaces, making it suitable for holding, locating and embedding into compact products or assemblies.
Important: Pull force is measured under ideal conditions. Actual holding strength may be lower when the magnet is used on painted, curved, rusty, thin or uneven steel, or when subjected to shear forces.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
