Neodymium Countersunk Pot Magnet - 25mm x 8mm Neodymium Countersunk Pot Magnet - 25mm x 8mm Cart

Neodymium Countersunk Pot Magnet - 25mm x 8mm

Product code: AMFYPA25

Neodymium Pot - Countersunk 25mm x 8mm
Neodymium Countersunk Pot Magnet - 25mm x 8mm
Neodymium Countersunk Pot Magnet - 25mm x 8mm
Neodymium Pot - Countersunk 25mm x 8mm
Neodymium Countersunk Pot Magnet - 25mm x 8mm
Neodymium Countersunk Pot Magnet - 25mm x 8mm
$7.53for 1 to 9 items
$5.97buy 10 to 99 itemsand save 20%
$5.20buy 100+ itemsand save 30%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Pot Magnet - 25mm x 8mm

Rated 5.0 out of 5
Based on 12 reviews
Product Code AMFYPA25
Pull Force* 14 kg
Weight 23 gm
Style Rare earth countersunk pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 8mm
*Measured against up to 10mm mild steel.
Neodymium Countersunk Pot Magnet - 25mm x 8mm

Neodymium Pot Magnet With Countersunk Hole Product Description:

This Countersunk Pot Magnet is made from a powerful Rare Earth magnet encased in a mild steel, nickel coated holding pot. The metal casing provides for superior durability, allowing the brittle magnet within to withstand impact and corrosion to a greater extent. This product has a diameter of 25mm, a countersunk hole diameter of 5.5mm and a thickness of 8mm. This super-strong holding magnet has a pull force of 14kg and a weight of 23 grams.


Uses for our rare earth countersunk pot magnets:

This Countersunk Neodymium Magnet is widely popular due to its versatility and multitude of applications. These handy 25mm pot magnets are suitable for builders and tradespeople or DIY home improvement. These industries prefer Countersunk magnets as they are high quality, high strength and multi-purpose.

The countersunk hole in the centre is specifically designed for screws. This means the magnet can easily be secured in place with a simple screw. This magnet can be secured to any magnetic or non magnetic material. From wood to plastic, the options are endless! Create magnetic door latches, tool holders or use this magnet as a part of a complex mechanical arrangement.

ModelNo. DØ D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

Neodymium Countersunk Pot Magnet - 25mm x 8mm (AMFYPA25)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.

Write a Review
average rating 5.0 out of 5
Based on 12 reviews
  • 5 Stars
    12 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
12 Reviews
Reviewed by Kevin D.
I recommend this product
Rated 5 out of 5
Review posted

Excellent service and product, and reasonable price

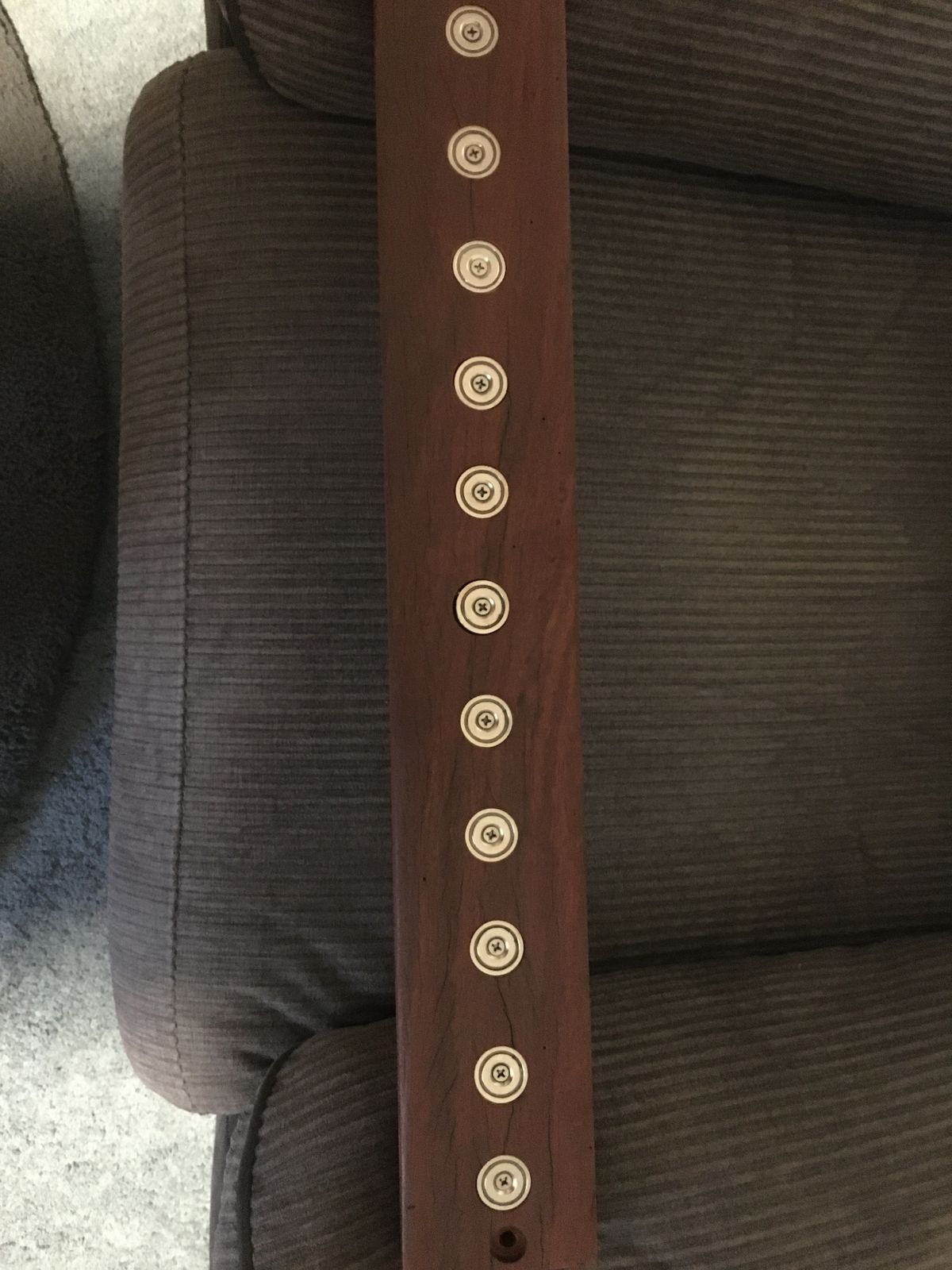

I reported 23/04/20 on the couple of magnets that I bought to test an idea. Since then I have bought another 8 and have used them because I didn't want to attach brackets to the wall to hang curtains from. Above the windows in our living room there is a large steel I-beam now carrying six brackets held bu magnets. Excellent easily dis-mountable; an elegant solution.

Loading...
Was this helpful?
Reviewed by Kevin
I recommend this product
Rated 5 out of 5
Review posted

Just the ticket and simple to buy online.

I bought a couple of these magnets to test their strength for holding a bracket to a steel lintel in order to put up curtains , They are perfect for the job.

Loading...
Was this helpful?
Reviewed by Mike
I recommend this product
Rated 5 out of 5
Review posted

Great product

Good price, fast delivery and very detailed information and safety briefing accompanied a well wrapped package.

Loading...
Was this helpful?
Reviewed by Bill
I recommend this product
Rated 5 out of 5
Review posted

25x8

Great delivery time. Just right for holding lights.

Loading...
Was this helpful?
Reviewed by APPLE5
I recommend this product
Rated 5 out of 5
Review posted

Not a problem

Sticks like glue

Loading...
Was this helpful?
Neodymium Countersunk Pot Magnet - 25mm x 8mm

Neodymium Pot Magnet With Countersunk Hole Product Description:

This Countersunk Pot Magnet is made from a powerful Rare Earth magnet encased in a mild steel, nickel coated holding pot. The metal casing provides for superior durability, allowing the brittle magnet within to withstand impact and corrosion to a greater extent. This product has a diameter of 25mm, a countersunk hole diameter of 5.5mm and a thickness of 8mm. This super-strong holding magnet has a pull force of 14kg and a weight of 23 grams.


Uses for our rare earth countersunk pot magnets:

This Countersunk Neodymium Magnet is widely popular due to its versatility and multitude of applications. These handy 25mm pot magnets are suitable for builders and tradespeople or DIY home improvement. These industries prefer Countersunk magnets as they are high quality, high strength and multi-purpose.

The countersunk hole in the centre is specifically designed for screws. This means the magnet can easily be secured in place with a simple screw. This magnet can be secured to any magnetic or non magnetic material. From wood to plastic, the options are endless! Create magnetic door latches, tool holders or use this magnet as a part of a complex mechanical arrangement.

ModelNo. DØ D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

Neodymium Countersunk Pot Magnet - 25mm x 8mm (AMFYPA25)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A

NB: Ranges are indicative for product category, please check individual products for specic values within that range.

The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.

Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.

Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
