Neodymium Countersunk Pot Magnet - 36mm x 9mm

Product code: AMFYPA36

$11.35for 1 to 9 items
$9.99buy 10 to 99 itemsand save 11%
$8.67buy 100+ itemsand save 23%

Prices are GST Incl.

Volume pricing available on request

Neodymium Countersunk Pot Magnet - 36mm x 9mm

Rated 5.0 out of 5
5 Reviews
Product Code AMFYPA36
Pull Force* 29 kg
Weight 52 gm
Style Rare earth countersunk pot magnet
Coating Nickel (NiCuNi)
Direction of Magnetisation Axially magnetised thru the 9mm
*Measured against up to 10mm mild steel.
Neodymium Countersunk Pot Magnet - 36mm x 9mm

Magnetic Product Description:

This rare earth pot magnet has a diameter of 36mm, a countersunk hole diameter of 6.5mm and a thickness of 9mm. It has a pull force of 29kg and a weight of 52 grams. It is identified by the AMF magnet part number AMFYPA36.


Uses for our rare earth countersunk pot magnets:

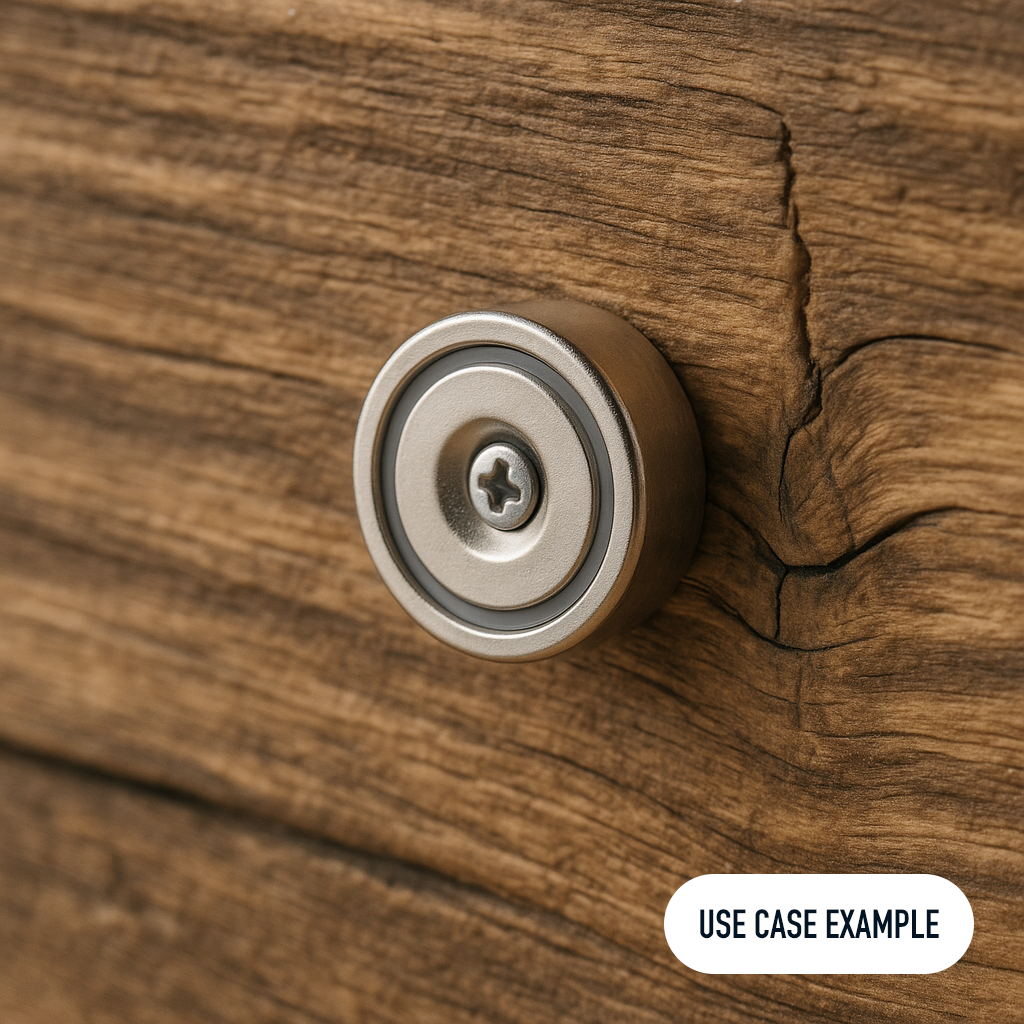

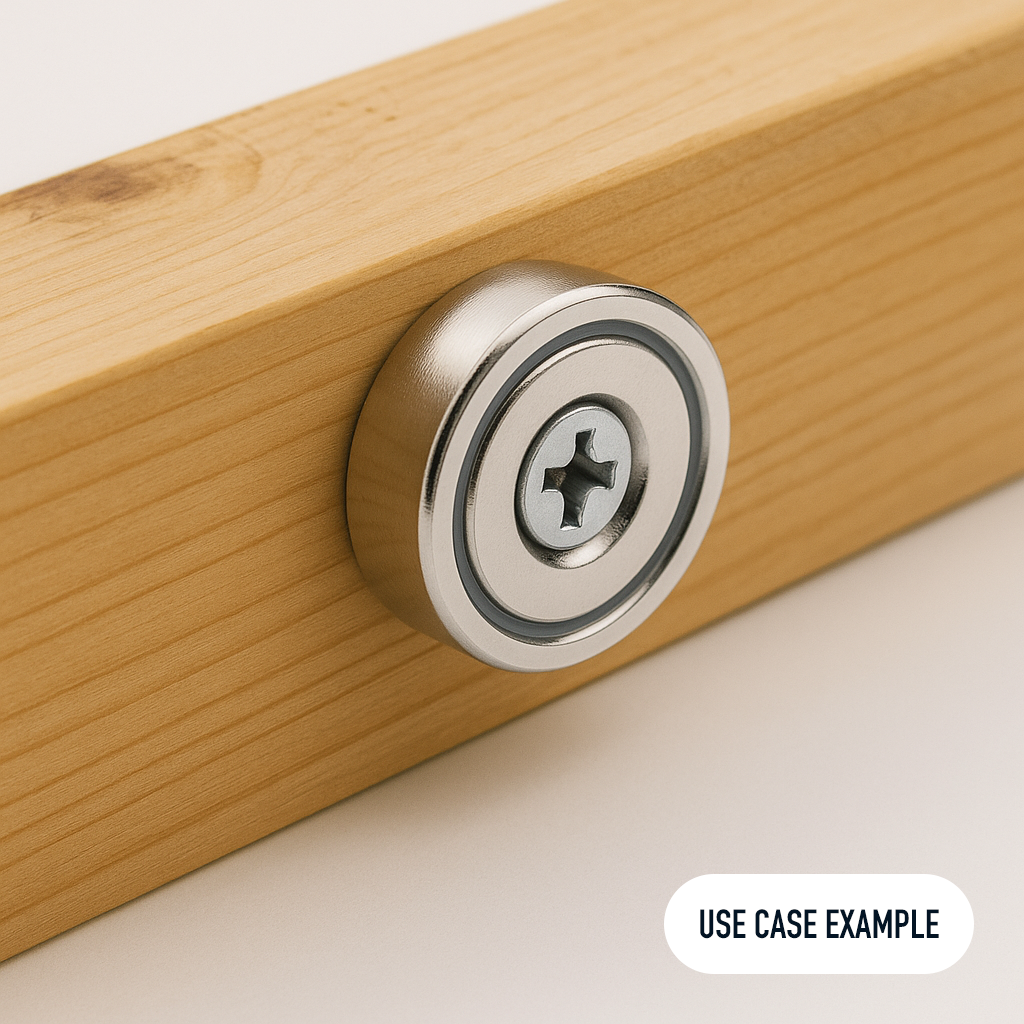

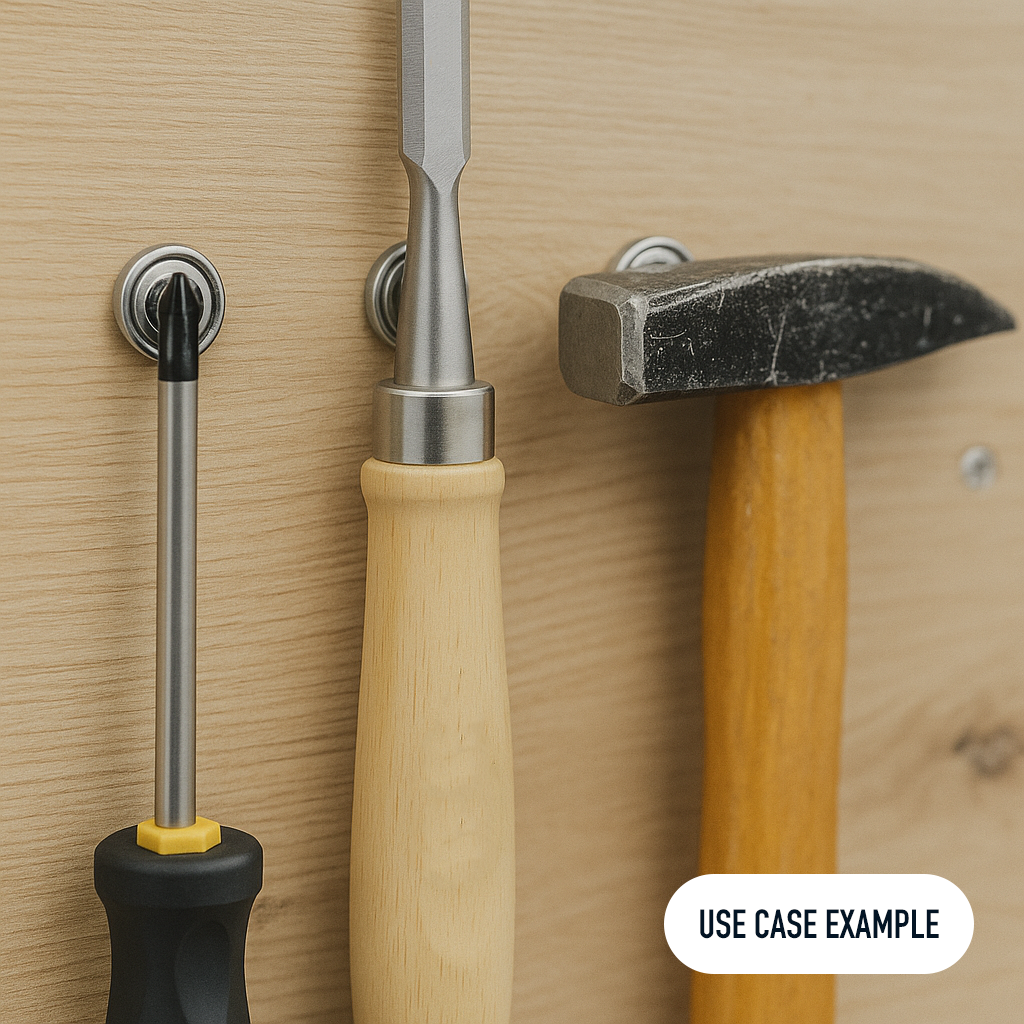

This Countersunk Neodymium Pot magnet is employed by builders and cabinetmakers in a host of different ways during the construction of high-end commercial buildings and homes. Incorporated into the design to create secret fixings, drawer closures, hanging systems and seamless cabinetry, these Rare Earth pot magnets are indispensable for anyone working in the building industry. These Neodymium Pot Magnets have a countersunk hole making them ideal for screwing onto a surface for a permanent holding point. Alternatively, attach it to the end of your tool or jig for a customised magnetic solution. This 36mm Pot Magnets has a strong holding capacity and is suitable for attaching to vertical walls and for hanging items from ceilings.

ModelNo. D1Ø D2Ø H Holding force(kg) Weight (g)
AMFYPA16 16 3.5 6.5 5 5 7
AMFYPA20 20 4.5 8.5 7 6 13
AMFYPA25 25 5.5 10.4 8 14 23
AMFYPA32 32 5.5 10.4 8 25 39
AMFYPA36 36 6.5 12 9 29 52
AMFYPA42 42 6.5 12 9 37 76
AMFYPA48 48 8.5 16 11.5 68 120
AMFYPA60 60 8.5 16 15 112 252
AMFYPA75 75 10.5 19 18 162 488

Neodymium Countersunk Pot Magnet - 36mm x 9mm (AMFYPA36)

Grade
N35 N/A
Max Operating Temperature °C
<=80 N/A
Remanence Br(T)
1.18-1.25 N/A
Remanence Br(kGs)
11.8-12.5>=859 N/A
Coercivity bHc(kA/m)
>=10.8 N/A
Coercivity bHc(Oe)
>=955 N/A
Intrinsic Coercivity iHc(kA/m)
>=12 N/A
Intrinsic Coercivity iHc(Oe)
263-294 N/A
Max Energy Product(BH)max(KJ/m)
33-37 N/A
Grade N35 N/A
Max Operating Temperature °C <=80 N/A
Remanence Br(T) 1.18-1.25 N/A
Remanence Br(kGs) 11.8-12.5>=859 N/A
Coercivity bHc(kA/m) >=10.8 N/A
Coercivity bHc(Oe) >=955 N/A
Intrinsic Coercivity iHc(kA/m) >=12 N/A
Intrinsic Coercivity iHc(Oe) 263-294 N/A
Max Energy Product(BH)max(KJ/m) 33-37 N/A
average rating 5.0 out of 5
Based on 5 reviews
  • 5 Stars
    5 Reviews
  • 4 Stars
    0 Reviews
  • 3 Stars
    0 Reviews
  • 2 Stars
    0 Reviews
  • 1 Star
    0 Reviews
100% of reviewers would recommend this product to a friend
5 Reviews
Reviewed by Jim
I recommend this product
Rated 5 out of 5
Review posted

Great magnets

I've attached two of the 36mm x 9mm magnets to my driveway picket gates. The magnets are screwed into 50 x 50mm treated pine laths attached to a couple of short star stakes. On the gates themselves I have attached two Aldi steel mending straps.

When I open the gates fully, the mending straps touch the magnets, holding the gates in place.

These magnets are very powerful. and will hold the gates open even in 100kph winds.

I recommend these to anyone having similar issues requiring strong magnets.

Loading...
Was this helpful?
Reviewed by Jim
I recommend this product
Rated 5 out of 5
Review posted

Great magnets

I have these on my driveway (picket) gates and they are strong enough to hold the gate open, even in 100kph winds. Very easy to install, I just needed a couple of pre-drilled steel plates which I bought from Aldi.

Loading...
Was this helpful?
Reviewed by Kenco
I recommend this product
Rated 5 out of 5
Review posted

Fits the Bill

Happy days and a strong connection , they work well

Loading...
Was this helpful?
Reviewed by Brian
I recommend this product
Rated 5 out of 5
Review posted

Fixing Awning

To stop heavy awning/blind from flapping noisily in slightest breeze fixed magnets to blind, screwed steel washers to frame. Blind now rigidly fixed in place desired. The magnets are bit too strong; a smaller size would have been adequate.

Loading...
Was this helpful?
Reviewed by Esme
I recommend this product
Rated 5 out of 5
Review posted

bought for manget fishing

we bought 6 magnets and my husband bolted 3 on each side of an oval shaped piece of stainless steel with stainless steel bolts and lock nuts. He drilled a hole at the end of the s.s. plate and attached a stainless steel D bolt with our rope/thimble attached, cut a slit in the end of the D bolt bar and spread it with a bolster, then cut the end of the D bolt so that it can't undo and doesn't get caught when we use it for magnet fishing in the rivers and at jetties. You never know what goodies can be hauled in.:)

Loading...
Was this helpful?
