Reviewed by Shirley B.
I recommend this product
Neodymium Pot countersunk 48mmx11.5mm
Excellent I also had to ring for advice of magnets and was so thankful for the help
Loading...
Was this helpful?
Neodymium Countersunk Pot Magnet - 48mm x 11.5mm
Product code: AMFYPA48
$45.08for 1 to 9 items
$33.81buy 10 to 99 itemsand
save 25%
$28.19buy 100+ itemsand
save 37%
Neodymium Countersunk Pot Magnet - 48mm x 11.5mm
Rated 5.0 out of 5
Product Code
AMFYPA48
Pull Force*
68 kg
Weight
120 gm
Style
Rare earth countersunk pot magnet
Coating
Nickel (NiCuNi)
Direction of Magnetisation
Axially magnetised thru the 11.5mm
*Measured against up to 10mm mild steel.
Magnetic Product Description:

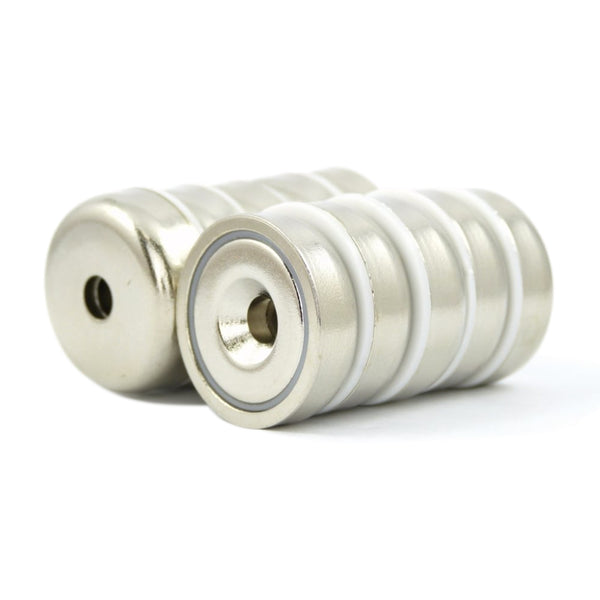

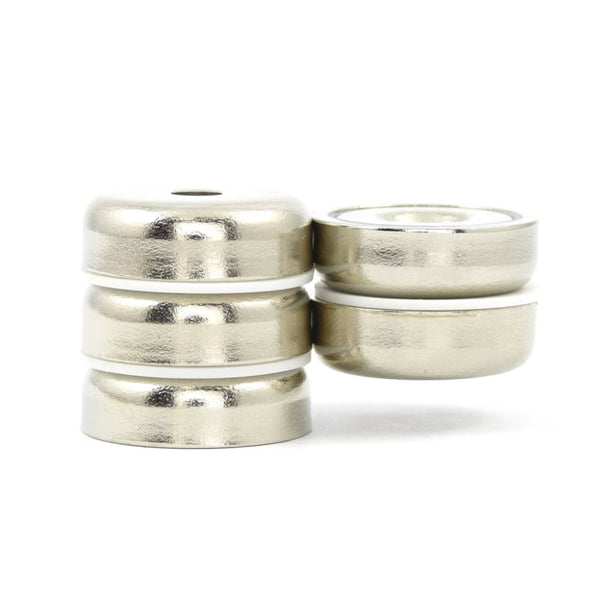

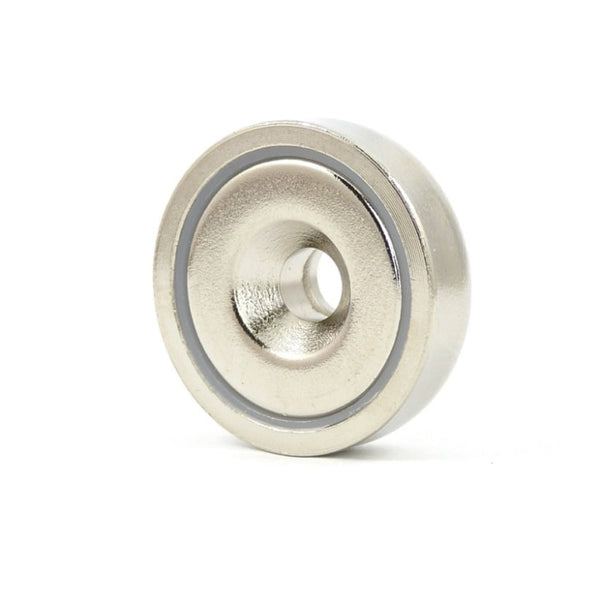

This rare earth pot magnet has a diameter of 48mm, a countersunk hole diameter of 8.5mm and a thickness of 11.5mm. It has a pull force of 68kg and a weight of 120 grams. It is identified by the AMF magnet part number AMFYPA48.
Uses for our rare earth countersunk pot magnets:
Designers of modern homes specify magnets for secret fixing of high end cabinetry fitouts, galley style hanging kitchens, staircase and balustrading and soft close functions. These countersunk 48mmx11.5mm countersunk pot magnets provide the option of attaching a hook or eyelet to improve efficacy.
Magnets are a different kind of fastening system, but surprisingly cost effective. Stainless steel, stone, concrete and solid timber are the materials architects choose for their clients, often with magnets of all kinds, for fixing, holding, releasing, re-engaging as the specified connective tissue.
People who build architect designed homes are different but they still love a bargain. That is why they employ architects and tradespeople who use these 48mmx11.5mm countersunk pot holder magnets when building their special abodes.
To deliver the difference the different demand, skilled designers reach for the magic of magnets.
Due to the versatility and high quality of our rare earth pot countersunk magnets they can be used for different applications and also for household or industrial uses. This 48mm pot magnet can be used for construction, building or design purposes.
| ModelNo. | DØ | D1Ø | D2Ø | H | Holding force(kg) | Weight (g) |
| AMFYPA16 | 16 | 3.5 | 6.5 | 5 | 5 | 7 |
| AMFYPA20 | 20 | 4.5 | 8.5 | 7 | 6 | 13 |
| AMFYPA25 | 25 | 5.5 | 10.4 | 8 | 14 | 23 |
| AMFYPA32 | 32 | 5.5 | 10.4 | 8 | 25 | 39 |
| AMFYPA36 | 36 | 6.5 | 12 | 9 | 29 | 52 |
| AMFYPA42 | 42 | 6.5 | 12 | 9 | 37 | 76 |
| AMFYPA48 | 48 | 8.5 | 16 | 11.5 | 68 | 120 |
| AMFYPA60 | 60 | 8.5 | 16 | 15 | 112 | 252 |
| AMFYPA75 | 75 | 10.5 | 19 | 18 | 162 | 488 |
Neodymium Countersunk Pot Magnet - 48mm x 11.5mm (AMFYPA48)
| Grade | |
|---|---|
| N35 | N/A |
| Max Operating Temperature °C | |
| <=80 | N/A |
| Remanence Br(T) | |
| 1.18-1.25 | N/A |
| Remanence Br(kGs) | |
| 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | |
| >=10.8 | N/A |
| Coercivity bHc(Oe) | |
| >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | |
| >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | |
| 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | |
| 33-37 | N/A |
| Grade | N35 | N/A |
| Max Operating Temperature °C | <=80 | N/A |
| Remanence Br(T) | 1.18-1.25 | N/A |
| Remanence Br(kGs) | 11.8-12.5>=859 | N/A |
| Coercivity bHc(kA/m) | >=10.8 | N/A |
| Coercivity bHc(Oe) | >=955 | N/A |
| Intrinsic Coercivity iHc(kA/m) | >=12 | N/A |
| Intrinsic Coercivity iHc(Oe) | 263-294 | N/A |
| Max Energy Product(BH)max(KJ/m) | 33-37 | N/A |
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
