Neodymium Countersunk Pot Magnet - 48mm x 9.35mm (Slim Profile)
Product code: AMFYPA48SLIM
Prices are GST Incl.
Volume pricing available on requestAustralia's Leading Supplier
Shipping Worldwide*
30 Day Returns
Same Day Dispatch*

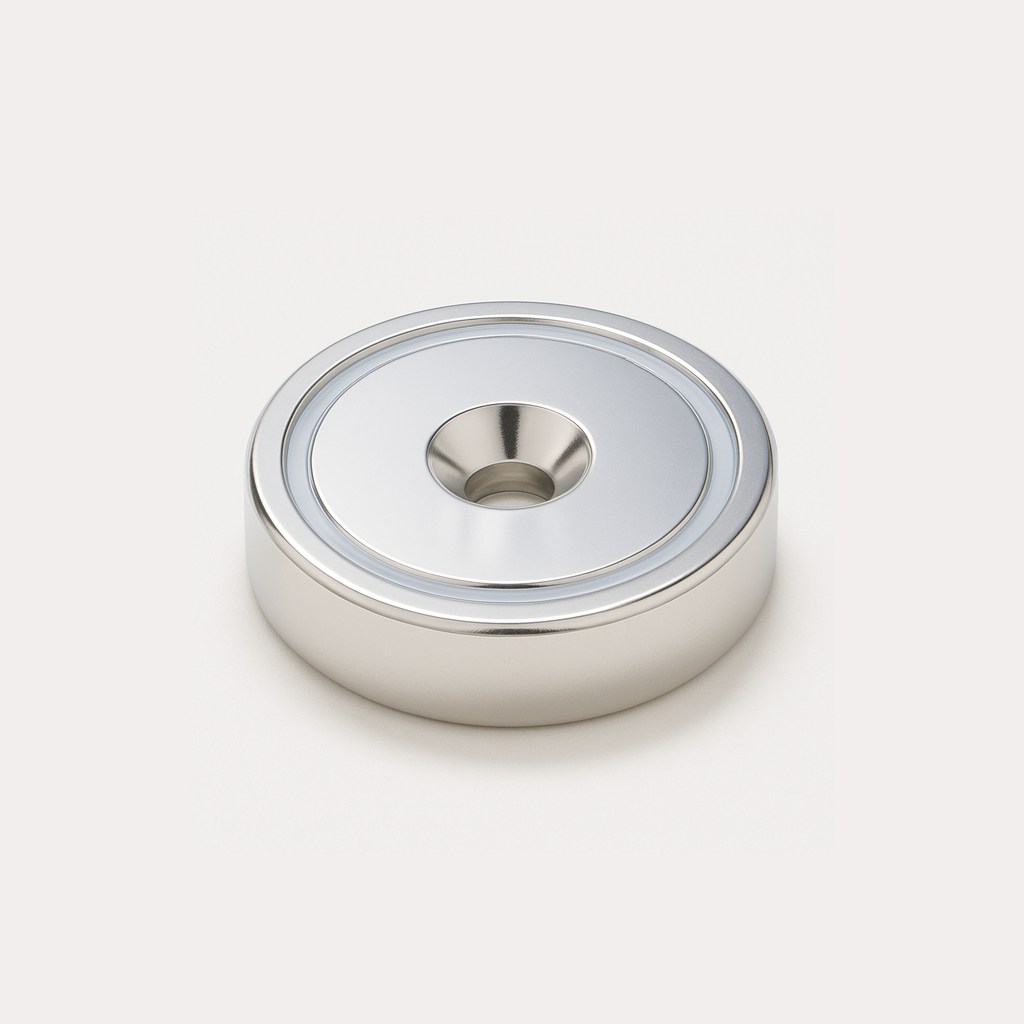

The Neodymium Countersunk Pot Magnet (48mm diameter x 9.35mm height) is a heavy-duty rare earth mounting magnet built for maximum strength and reliability. Delivering an exceptional 56kg pull force, this pot magnet is engineered for demanding industrial, commercial, and workshop applications where a secure magnetic fastening solution is essential. This product is identified by AMF Magnetics product code AMFYPA48SLIM.

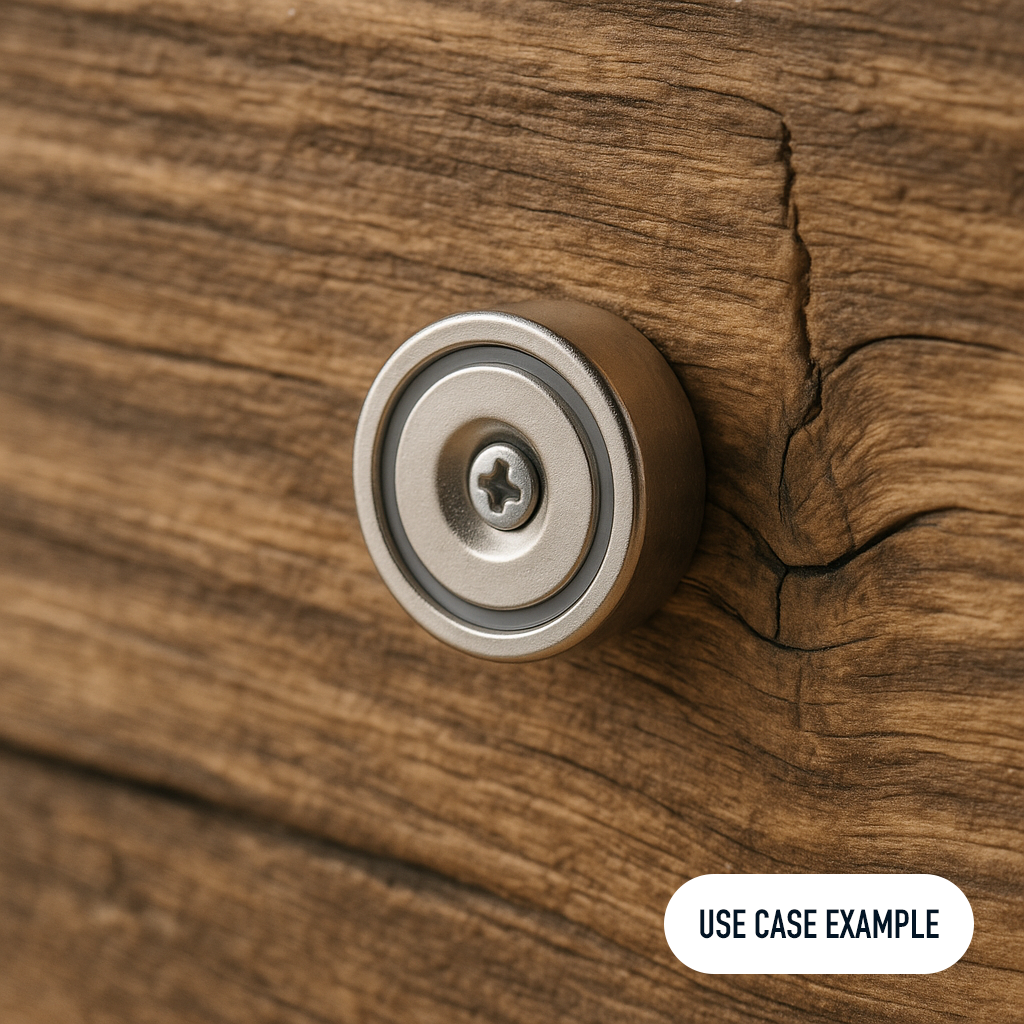

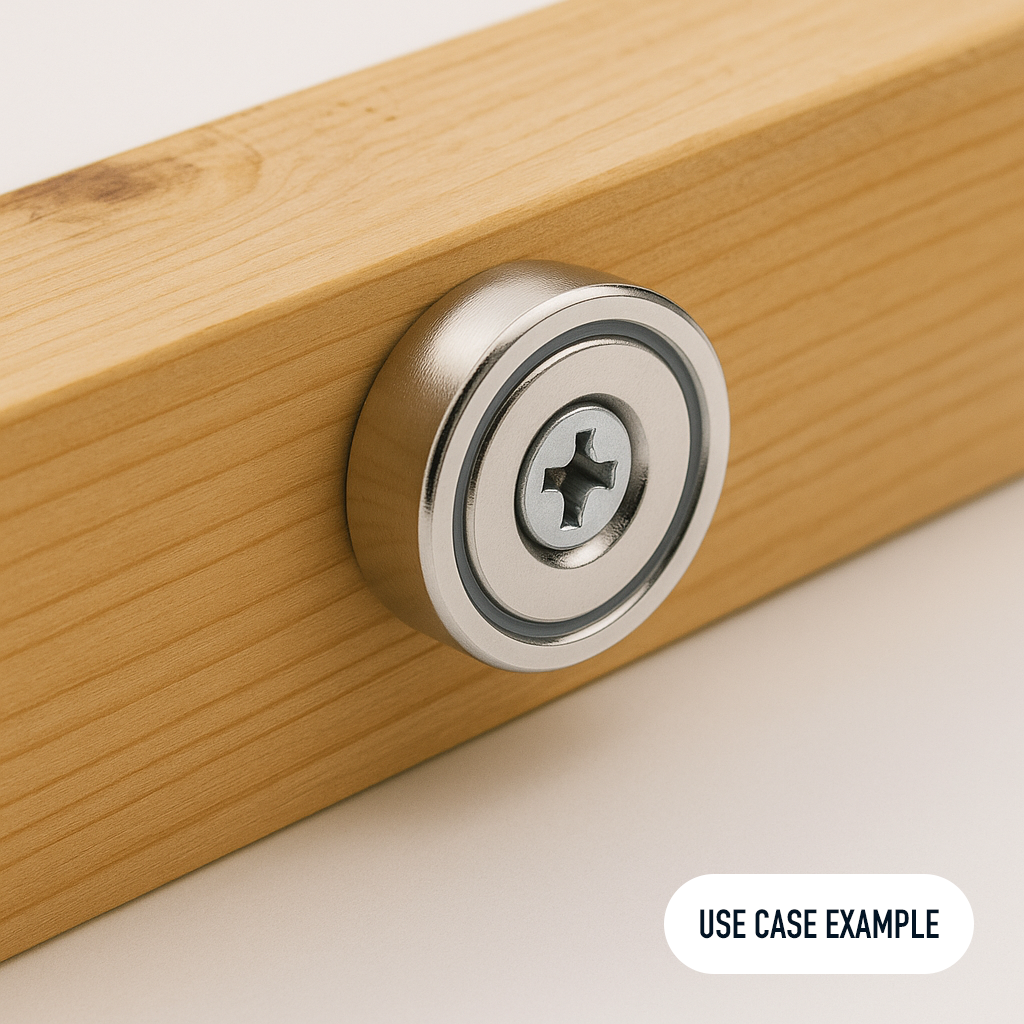

Encased in a robust steel pot, the magnet’s power is significantly increased by directing the magnetic field to the working face. The countersunk hole allows quick and secure mounting with a flat-head screw, ensuring a flush, professional finish on metal structures, walls, brackets, or fixtures. Its nickel coating provides excellent resistance to wear and corrosion, making it suitable for long-term indoor and outdoor use.
Key Features:
-
Size: 48mm diameter x 9.35mm height
-
Pull Force: 56kg (tested against 10mm mild steel)
-
Material: High-grade neodymium rare earth magnet in a protective steel casing
-
Finish: Nickel coating for durability and corrosion resistance
-
Mounting: Central countersunk hole for secure screw fixing
Applications:
-
Industrial mounting and heavy-duty clamping
-
Construction and engineering projects
-
Shopfitting, signage, and point-of-sale displays
-

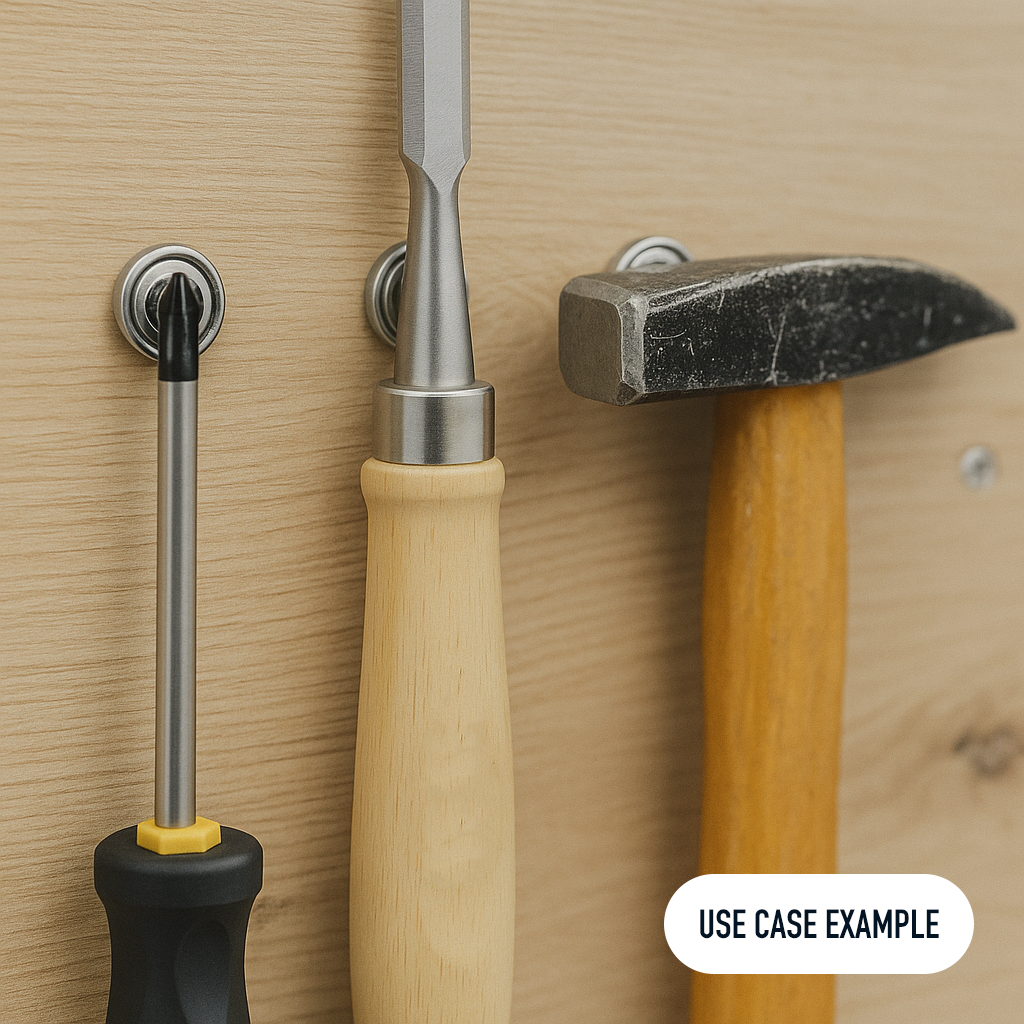

Workshop tool storage and organisation
-
Marine, automotive, and outdoor applications requiring strong flush mounting
The 48mm Neodymium Countersunk Pot Magnet is the ultimate solution for users who need maximum holding strength in a compact and easy-to-mount design. Perfect for engineers, tradespeople, and installers, this magnet provides reliable fastening power you can trust.
No FAQ available
NB: Ranges are indicative for product category, please check individual products for specic values within that range.
The most common coating for Neodymium magnets is Nickel + Copper + Nickel (Ni + Cu + Ni). This coating offers the magnet relatively good protection from corrosion and passive applications. If the magnet will be exposed to moisture or liquid then consider the use of an organic coating such as Epoxy. A hard wearing coating, Epoxy is suited to applications where the magnet will come under some friction or knocking.
Magnets are readily available in Blocks, Discs, Cylinders & Rings. AMF Magnetics specializes in the supply of short-run prototype magnets including Arc Segments, various magnetic orientations etc. If you need a magnet size that we don't carry in stock, submit a Design-a-Magnet enquiry for a quote on your custom magnet design.
Neodymium magnets are offered in several different grades. The first section N30-54 has an operating temperature of up to 80 degrees. Most of our stock only goes up to N38. The second section, denoted with the "M" prefix after the grade has an operating temperature 100 degrees. After this the grades are "H", "SH", "UH" & "EH". In order for the magnet to withstand a higher operating temperature, during production more of the raw material PrNd is incorporated as these elements have a naturally occurring resistance to high temperatures.
